Aseptic filler for fluids, concentrates, and particulates

Optimize your fluid and concentrate filling process with a high-speed aseptic solution that ensures sterile integrity without chemical intervention, tailored for diverse packaging standards across various products.

Fills and Sterilizes Liquid Foods Efficiently

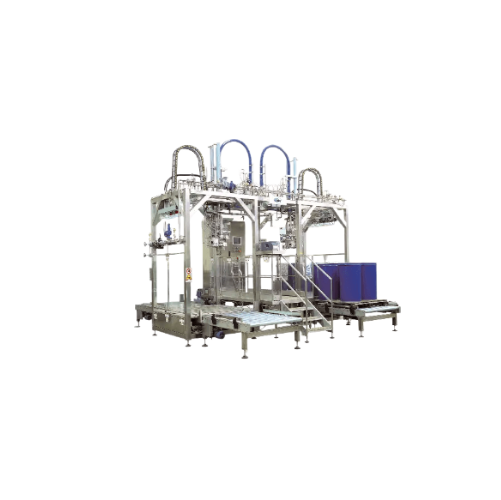

The AF2000 IMPERIAL Aseptic Filler from JBT is a versatile machine designed for high-speed filling and sterilization of liquid food products. It features a “steam only” sterilization system for the filler heads, eliminating the need for chemicals or sterile gases, ensuring a contamination-free environment. Ideal for juices, vegetable smoothies, and tomato products, it effectively processes products with a pH of less than 4.5. The machine operates efficiently, with working speeds ranging from 5-12 bags per hour for a single head up to 60 bags per hour with the triple head. This system is PLC-controlled, offering a self-diagnostic operational mode for seamless integration into your production line. Engineered to fill pre-sterilized bags of 220 liters or 1,200 liters, its aseptic filling chamber can be opened without losing the aseptic condition. The design supports various packing standards while ensuring sanitation via an automatic Clean-in-Place (CIP) system, facilitating easy maintenance.

Benefits

  • Enhances production speed and efficiency with high throughput capabilities.
  • Reduces contamination risk through "steam only" sterilization, eliminating the need for chemicals.
  • Simplifies integration into existing lines with its PLC-controlled, self-diagnostic operations.
  • Decreases maintenance time and costs with an automatic Clean-in-Place system.
  • Supports varied packaging needs with adjustable filling capabilities for different bag sizes.

General


Applications
Beverages,Tomato processing,Juices,Vegetable processing,Fruit
End products
Fruit purees,Apple juice,Concentrated fruit juice,Lemonade,Orange juice,Canned tomato paste,Vegetable smoothies,Carrot juice,Tomato sauce,Mixed fruit juice,Diced tomatoes
Steps before
Juice Extraction,Concentration,Mixing,Purification
Steps after
Packaging,Sealing,Labeling,Transportation
Input ingredients
fluids,concentrates,particulate products,products with pH <4.5
Output ingredients
220 liters (60 gallons) pre-sterilized bags,1,200 liters (300 gallons) pre-sterilized bags
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Working Speed
5-12 bags/hour (single head),30-60 bags/hour (triple head)
Drum Size
220 liters (60 gallons),1,200 liters (300 gallons)
Automation
PLC-controlled
Process pH
< 4.5
Head Configuration
Single head,twin head,triple head

Operating Characteristics


Sterilization Method
Steam only
Processing Capability
Fluids,concentrates,particulate products
Automation Level
PLC controlled,self-diagnostic operational mode
CIP/SIP
Automatic clean-in-place system
Cleaning Method
CIP,without chemicals or sterile gases

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Aseptic conditions
Cleanability
Automatic clean-in-place system
Density/particle size
Fluids,concentrates,particulate products

Physical Characteristics


Machine Footprint
Not specified
Discharge Method
Pallet Filling
Control Panel Type
PLC-controlled
Drum Size
220 L (60 gallons) / 1,200 L (300 gallons)
Filling Heads
Single,Twin,Triple Head Options

Custom Options


Control Panel Type
PLC
Bag Capacity
220 Liters (60 Gallons) / 1,200 Liters (300 Gallons)
Packing Standards
Various Products
