Aerosol electrometer for accurate particle charge measurements
Achieve precise particle charge measurements and enhance your calibration processes with this advanced aerosol electrometer, designed for reliable, real-time data acquisition in aerosol research and air quality monitoring.
Measures Particle Charge and Concentration

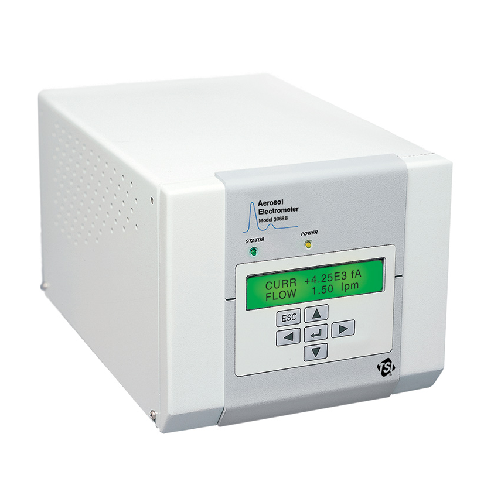

The Aerosol Electrometer 3068B from TSI Incorporated offers unmatched precision in measuring electrical current and flow rate of aerosol particles, ranging from 0.002 to 5 µm. Paired with a TSI Electrostatic Classifier, it excels in calibrating and testing particle instruments, crucial for nanotechnology and environmental sciences. Outputs are available via RS-232 and USB, providing real-time data critical for particle charge and concentration studies. It boasts a wide dynamic range (±12,500 fA) and increased sensitivity (±1 fA), outperforming its predecessor, Model 3068A. Designed for easy integration into existing systems, the electrometer’s automatic flow control (0.3 to 10 L/min) and temperature stabilization minimize drift, ensuring reliable long-term measurements. Ideal for use in pharmaceutical, chemical, and air quality testing industries, it supports operations in continuous and bench-top modes. The device requires a vacuum source for operation and is integral to submicron filter-efficiency tests and emission testing applications.
Benefits
- Enhances measurement precision with a sensitive range down to ±1 fA.
- Reduces data drift through temperature stabilization, ensuring reliable results in long-term studies.
- Simplifies calibration and integration with RS-232 and USB connectivity for seamless system compatibility.
- Decreases operational complexity with automatic flow control, optimizing measurement efficiency.
- Supports diverse applications from nanoparticle detection to emission testing, broadening research capabilities.
- Applications
- Particle measurement,Environmental sciences,Aerosol research,Filtration testing,Nanotechnology,Emission testing,Air quality monitoring,Instrument calibration
- End products
- Industrial aerosol spectrometers,Nanoparticle detectors,Environmental monitoring systems,Air filtration units,Advanced air purification systems,Automotive emission analysis equipment,Cleanroom contamination control systems,Submicron particulate analyzers
- Steps before
- Instrument calibration setup,Aerosol generation,Particle charge preparation
- Steps after
- Data analysis,Submicrometer filter efficiency testing,Size distribution measurement
- Input ingredients
- aerosol particles,electric current,vacuum source
- Output ingredients
- total net charge on aerosol particles,number concentration of monodisperse aerosol,real-time data output via RS-232,real-time data output via USB,analog voltage output
- Market info
- Particle Size Range
- 0.002 to 5 µm
- Accuracy
- ±1 fA
- Current Dynamic Range
- ±12,500 fA
- Flow Control
- Automatic (0.3 to 10 L/min)
- Interface
- RS-232 / USB
- Display
- Two-line,LCD alphanumeric
- Working mechanism
- Measures electrical current and flow rate
- Flow control
- Automatic flow control (0.3 to 10 L/min)
- Real time measurement
- Provides readings in real time
- Dynamic range
- Wide dynamic range (±12,500 fA)
- Temperature stability
- Temperature stabilized to reduce drift
- Particle size range
- 0.002 to 5.0 µm
- Automation level
- RS-232 and USB interface
- Calibration Use
- Condensation Particle Counter
- ISO 27891
- Accredited calibrations for reference instruments
- Control panel type
- Membrane touch-panel with two-line,LCD alphanumeric display
- Discharge method
- RS-232,USB interface,and analog voltage output
- Flow control range
- 0.3 to 10 L/min
- Particle size range
- 0.002 to 5.0 µm
- Temperature stabilization
- Yes,for reduced drift
- Control panel type
- Membrane touch-panel with LCD display
- Integration possibilities
- RS-232 and USB interface
- Automation level
- Automatic flow control with external vacuum source
