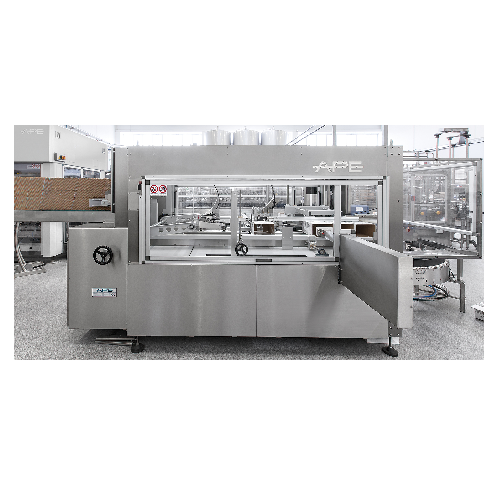

Advanced case erector for Rsc/american cartonboard

Optimize your packaging line with precise case erection and glue sealing, ensuring secure and efficient carton handling for high-speed production environments.

Automates Case Erecting and Sealing

The FORM 3000 from APE Impianti is an automatic case erector designed for high-speed packaging lines. It sets itself apart with a precise mechanical design and an electronic handling system, making case forming and hot-melt bottom flap sealing highly reliable. Tailored for beverage producers, it efficiently processes RSC/American cartons, ensuring seamless integration in wine, beer, and spirits packaging operations. The FORM 3000 achieves a throughput of up to 24,000 bottles per hour, facilitating rapid production cycles. With automated control via an operator panel, it supports quick format changes for diverse packaging needs. The machine’s compatibility with hot-melt adhesives maximizes sealing integrity on cartonboard materials. Designed for durability and minimal maintenance, the system sustains optimal performance, keeping your production line running smoothly.

Benefits

  • Enhances production efficiency with seamless case erecting and sealing.
  • Reduces labor costs with fully automated operation and minimal manual intervention.
  • Supports high-speed packaging demands with throughput up to 24,000 bottles per hour.
  • Ensures strong carton integrity using hot-melt adhesive for secure closure.
  • Facilitates rapid changeovers for various carton sizes via operator panel control.

General


Applications
Food,Beverage packaging,Wine,Spirits,Cartonboard,Plastic crates,Beer,Glass bottles
End products
Glass wine bottles,Rsc/american cartonboard packaging,Plastic crates for glass return bottles,Glass beer bottles,Glass spirits bottles,Beverage cartons
Steps before
Bottle preparation,Case preparation,Cartonboard cutting,Partition preparation
Steps after
Sealing,Palletizing,Quality inspection,Labeling
Input ingredients
bottles,cartonboard,cases,crates,plastic crates,partitions,RSC/American cases
Output ingredients
sealed cartons,packaged bottles,erected cases,partitioned cases,packed crates
Market info

Technical Specifications


Speed
Up to 24,000 bottles/hour
Automation
Automatic case erector machine
Packaging Cycle Control
Linear axes driven by brushless motors
Format Change
Automated from the operator panel
Sorting System
SUPER DIVIDER bottle-chasing
Integration
CRATE KIT for plastic crates
Robotic Module
Anthropomorphic packing robot
Maintenance
Minimum due to robotic arm
Partition Insertion
Automatic and high-performance
Sealing
Hot-melt glue closure
Case Sealer Type
Automatic top case sealer
Software
APE software for format changes

Operating Characteristics


Automation level
Fully automated with operator panel
Changeover time
Fast,automatic via operator panel
Integration capability
Can be integrated with the SUPER DIVIDER sorting system
Speed
Up to 24,000 bottles/hour
Flexibility
Fast format changes,recalls through the operator panel

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Carton Type
RSC/American cartonboard
Crate Type
Plastic crates

Physical Characteristics


Footprint
Compact/Space-saving
Machine Type
Case Erector/Packer/Sealer
Construction Material
Robust/Durable
Control Panel Type
Touchscreen/Operator Panel
Portability
Stationary
Integration Capability
SUPER DIVIDER system
Flexibility
Automated Format Changes

Custom Options


Control panel type
Operator panel (HMI)
Integration possibilities
SUPER DIVIDER bottle-chasing sorting system
Format change capability
Fully automatic from operator panel
Crate processing capability
CRATE KIT for processing plastic crates
