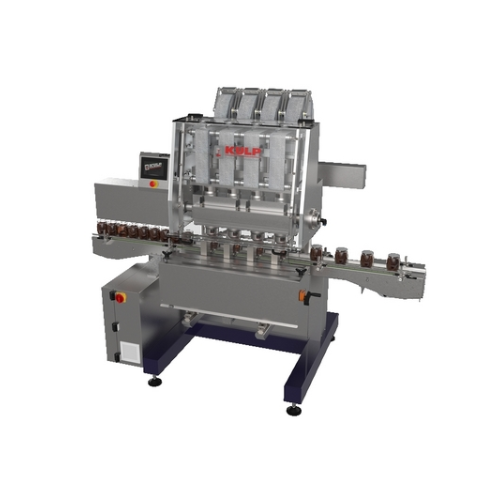

4 head sealing system for plastic and glass jars

Achieve precision sealing for jars of various materials with this high-speed, four-head system, ensuring airtight packaging and extending product shelf life, crucial for maintaining quality in food and beverage products.

Seals and Cuts Foil Liners for Jars

The 4 Head Conduction Jar Sealing Machine from Kulp Makina is designed to meet the high demands of sealing applications in the food, beverage, and consumer goods sectors. Utilizing conduction sealing technology, this machine precisely cuts and seals foil liners onto glass and plastic jars, ensuring airtight packaging for products like jams, sauces, and cosmetics. Each of its four sealing heads operates independently yet synchronously, facilitating continuous, high-speed production capacities of up to 3,000 packages per hour.

Equipped with a user-friendly touch screen, the machine allows operators to easily adjust liner positioning based on jar neck diameter. This feature, combined with easy-to-change liner rolls and Festo pneumatic components, enhances operational efficiency. Constructed from 304L stainless steel and anodized aluminum, the machine is built for durability while ensuring maintenance simplicity through its design that incorporates a no container-no seal system.

The 3-meter conveyor, with adjustable side rails, supports various package sizes, integrating seamlessly into existing production lines. Operating with a three-phase electrical connection and air consumption of 800 liters per minute at maximum speed, the machine’s energy settings are optimized for resource savings without compromising performance.

Benefits

  • Increases production efficiency by sealing up to 3,000 packages per hour.
  • Enhances packaging integrity and shelf life with precise conduction sealing.
  • Reduces labor costs with its user-friendly, touch screen controls in multiple languages.
  • Supports diverse manufacturing needs with adjustable conveyor rails for various jar sizes.
  • Minimizes maintenance with robust stainless steel and anodized aluminum construction.

General


Applications
Glass jars,Personal care products,Beverage packaging,Household products,Industrial products,Consumer goods packaging,Food packaging,Plastic jars,Pharmaceutical containers,Cosmetic containers
End products
Cooking sauce jars,Paint cans,Liquid detergent containers,Pickle containers,Peanut butter jars,Cosmetic cream jars,Jam jars,Vitamin and supplement bottles,Juice bottles,Shampoo bottles
Steps before
Filling,Capping
Steps after
Labeling,Packaging
Input ingredients
plastic jars,glass jars,aluminium liner,foil roll
Output ingredients
sealed jars
Market info

Technical Specifications


Capacity
Up to 3000 Packages/Hour
Sealing Type
Conduction Sealing
Automation
Automatic
Compressed Air Usage
800 l/min at 6 Bar
Electrical Connection
Three-phase (380v / 50-60 Hz)
Sealing Heads
Two (working separately synchronized)
Convoyer Length
3 meters
Container Size Compatibility
Adjustable side rails for various sizes
Interface Type
User-friendly Touch Screen in Multiple Languages
Material Used
304 L Stainless Steel and Anodized Aluminium
Pneumatic System
Oil-free FESTO Pneumatic Equipment
Control System
OMRON PLC,Touch Screen,Drivers
Safety Features
No Container-No Seal System,Lighted Cabin,Security Switches

Operating Characteristics


Working system
Pneumatic and electronic
Automation level
User-friendly touch screen interface
Sealing mechanism
Conduction sealing
Container capacity
Up to 3000 Packages/Hour
No container-No Seal System
Yes
Sealing head operation
Two heads working separately synchronized
Liner adjustment
Touch screen based according to jar neck diameter
Changeover time
Easy to change liner rolls
Energy efficiency
Operates with 6 bars compressed air

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Density/particle size
≤ 1000 µm

Physical Characteristics


Footprint
3 meters conveyor with adjustable side rails
Material
304 L stainless steel and anodized aluminium
Container handling
No container-No Seal System
Sealing mechanism
Conduction sealing with aluminium liner
Protection features
Lighted cabin with 10mm polycarbonate covers and security switches
Control panel type
User-friendly touch screen interface

Custom Options


Control panel type
Touch screen
Integration possibilities
PLC-controlled
Liner adjustment
Touch screen adjustable
Liner roll change
Easy to change
User Interface Language
Multiple languages
Conveyor adaptability
Adjustable side rails
