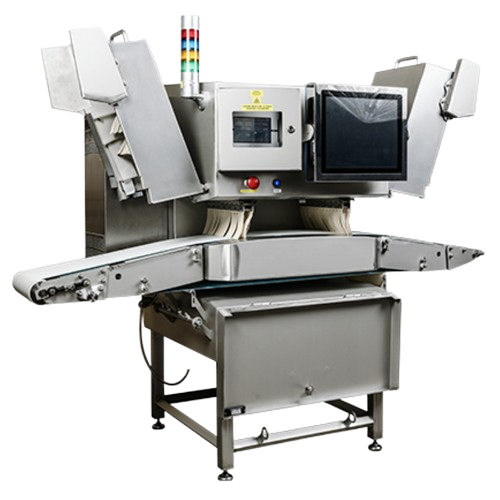

X-ray detection for bones in poultry and fish

Ensure precise removal of calcified bones in poultry and fish products with advanced high-resolution X-ray technology, minimizing false rejections and safeguarding product quality on high-speed production lines.

Detects Bones and Foreign Objects in Food

The Innospexion X-ray Detector, from JBT, offers cutting-edge bone and foreign object detection for poultry and seafood processing. Utilizing high-resolution X-ray technology, it excels in identifying bones as small as 2mm x 2mm while maintaining less than a 5% false reject rate. This system is ideal for processing deboned chicken breast, thigh meat, fish fillets, and pre-packaged meals. With an impressive processing capacity, it integrates seamlessly into continuous operations, supporting high throughput without sacrificing quality. The compact, hygienic design allows for easy cleaning, adhering to IP69K standards, and is compatible with various reject systems. Its tailored software enhances accuracy for specific products, ensuring compliance with FDA and EU food safety regulations. Customization options and engineering support are available to fit diverse production needs.

Benefits

  • Enhances product safety by reliably detecting bones and foreign objects, ensuring high-quality outputs.
  • Minimizes waste with a low false rejection rate, optimizing yield and reducing unnecessary loss.
  • Streamlines operations through continuous, high-speed processing, maintaining optimal production flow.
  • Complies with stringent food safety standards, supporting regulatory adherence.
  • Eases integration and maintenance with a compact, hygienic design that supports easy cleaning and various reject systems.

General


Applications
Seafood,Meat,Ready meals,Poultry
End products
Deboned chicken breast fillets,Chicken thigh meat,Fish nuggets,Deboned fish fillets,Pre-packaged ready meals,Meat patties,Seafood chunks,Boneless poultry cuts
Steps before
Deboning,Cutting,Sorting
Steps after
Packaging,Weighing,Labeling
Input ingredients
poultry,fish,deboned breast fillets,inner fillets,thighs,leg meat,nuggets
Output ingredients
bone-free poultry,bone-free fish,high-quality poultry products,high-quality fish products
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Accuracy
0.1 mm x 0.1 mm resolution
Detection rate
Up to 98% for calcified bones
False reject rate
Under 5%
Bone detection size
Down to 2mm x 2mm
Automation
Automatic X-ray detection
Design
Compact and robust
Reject system compatibility
Flap-down,retractable gate
Material compatibility
FDA and EU approved materials
Cleaning tolerance
Water jet cleaning up to 20 bars

Operating Characteristics


Automatic bone detection
0.1 mm x 0.1 mm resolution
Simultaneous bone and foreign object detection
Consistent and reliable
Compact design
Increases yield and maximizes waste
Cleaning method
Water jet tolerant,foam up to 20 bars
Changeover time
Low false rejection rate
Detection accuracy
Up to 98% detection rate
False reject rate
Under 5% for calcified bones
Intensity adjustment
High throughput,high yield
Adaptive software
Product-based recipes for diverse products
Flexibility
Compatible with different reject systems

Material Compatibility


Cleanability
Water jet cleaning tolerance
Corrosive resistance
Water jet cleaning tolerance
FDA materials
FDA approved
EU materials
EU approved
Hygienic design
IP69K

Product type Characteristics


Bone detection
Poultry and Fish

Physical Characteristics


Control panel type
Compatible with different reject systems

Custom Options


Hygienic Design
IP69K
Design
Compact and Versatile
