Wrap-around cartoner for processed cheese portions

Streamline your cheese packaging with high-speed wrap-around cartoning, optimizing efficiency by pre-grouping portions and utilizing energy-saving motorization to minimize power waste and enhance sustainability.

Forms and Packs Cheese Portions Efficiently

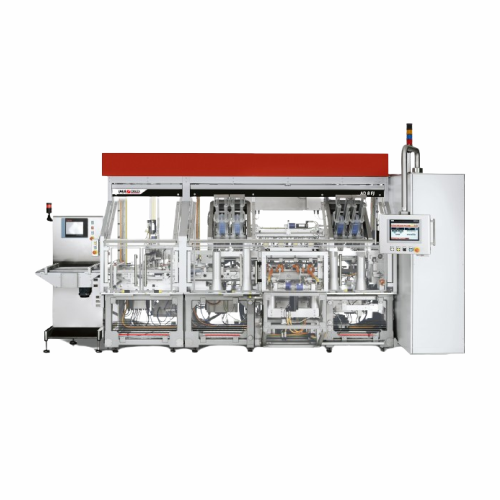

The AD8F from IMA Group’s Food & Dairy sector is a wrap-around cartoning machine tailored for the demands of processed cheese packaging. It uniquely utilizes flat blanks to form cartons with tucked-in end flaps and glued seams, ensuring structural integrity. Designed to handle square and rectangular cheese portions, it achieves speeds of up to 120 boxes per minute, optimizing throughput for fast-paced production lines. Integration with inline synchronized belts and pre-grouped layout arranges portions for seamless packaging. Energy efficiency is prioritized with motorization that shares kinetic energy during braking and optional vacuum pumps to reduce air consumption. The machine supports sustainable packaging materials, aligning with environmentally conscious operations. Ideal for cheese manufacturers, the AD8F offers adaptable carton dimensions and is expertly supported by IMA Corazza’s engineering services for customization.

Benefits

  • Boosts production efficiency by processing up to 120 boxes per minute.
  • Minimizes packaging costs with wrap-around cartoning from flat blanks.
  • Enhances sustainability with reduced power and air consumption.
  • Offers adaptability with adjustable carton sizes for varied portion shapes.
  • Streamlines integration and reduces setup time with synchronized in-line operations.

General


Applications
Dairy products,Processed cheese
End products
Square processed cheese portions,Dairy spreads,Rectangular processed cheese portions
Steps before
Dosing and wrapping,Conveying,Bundle forming,Cheese portion pre-grouping
Steps after
Case packing,Palletizing
Input ingredients
flat blanks,processed cheese portions,square cheese portions,rectangular cheese portions
Output ingredients
wrapped cheese cartons,cartons with tucked-in end flaps,glued longitudinal seam cartons,2-4-6-8 count cheese boxes
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production Capacity
Up to 120 boxes/min
Full Load Current
3P x 400 Volt – 50 Hz – 7 Amp
Compressed Air Consumption
220 Nl/min. (min. op. pressure 6 bar)
Weight
3,400 Kg Approx.
Box Dimensions
A (min ÷ max) 39 ÷ 78,B (min ÷ max) 78 ÷ 156,C (min ÷ max) 15 max.
Lanes
1 ÷ 2
Automation
PLC-controlled

Operating Characteristics


Workflow Process
Wrap-around cartoning
Automation Level
In-line synchronized belt
Batch vs. Continuous Operation
Continuous
Speed
Up to 120 boxes/min
Energy Efficiency
Kinetic energy sharing and absorption during braking
Customization
Box count

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Portion shape compatibility
Square / Rectangular

Physical Characteristics


Machine Layout
Up to 120 boxes/min production capacity
Footprint
Integrated with conveying/bundle forming device
Tucked-in end flaps and glued seams
Wrap-around cartoning feature

Custom Options


Control panel type
PLC-based
Integration possibilities
Synchronized with conveying systems
Motorization Efficiency
Kinetic energy sharing
Packaging Material
Sustainable and recyclable
