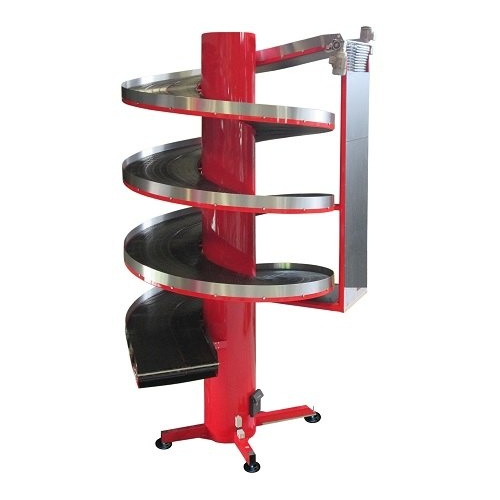

Wide belt spiral conveyor for oversized products
Efficiently manage oversized goods with a compact, high-capacity spiral conveyor that seamlessly integrates into your production line, offering space-saving solutions for handling cartons, parcels, and crates with ease.
Conveys, Elevates, and Accumulates Oversized Products
The SpiralVeyor SVe-Series from AmbaFlex is a versatile wide belt spiral conveyor engineered to efficiently manage oversized products like cartons, parcels, and crates across logistics, packaging, bottling, and printing industries. Its compact design combines up to a 50% reduction in footprint with a 30% wider belt than traditional spiral conveyors, employing parallel track belts for enhanced load capacity up to 100 kg/m. Operating at speeds up to 60 m/min, it supports high-throughput and continuous operations, ideal for demanding environments. The system’s modular construction supports virtually unlimited elevation, making it highly adaptable to space constraints. Integration into existing production lines is seamless, thanks to its configurable drive systems, which also help maintain energy efficiency. Constructed for durability under varied conditions, it offers options for dry use and different levels of washdown, complemented by comprehensive maintenance guides and spare parts availability. Custom engineering is available to tailor configurations, ensuring alignment with your operational needs.
Benefits
- Maximizes space efficiency with a compact design and wide belt, optimizing floor layout.
- Enhances operational throughput by handling high loads and varying product sizes seamlessly.
- Provides flexible integration with existing production lines, reducing the need for additional equipment.
- Lowers energy costs with an optimized drive system designed for high-speed operation.
- Ensures operational reliability with robust multi-track construction, minimizing maintenance needs.
- Applications
- Parcels,Cartons,Print,Packaging,Luggage,Bottling,Crates,Logistics
- End products
- Travel suitcases,Milk cartons,Mailing parcels,Newspapers,Beverage bottles,Warehouse crates,Shipping boxes,Hardcover books
- Steps before
- Sorting,Loading
- Steps after
- Packing,Sorting,Distribution
- Input ingredients
- oversized products,parcels,bulk flow,cartons,luggage,crates
- Output ingredients
- elevated oversized products,elevated parcels,elevated bulk flow,elevated cartons,elevated luggage,elevated crates
- Market info
- AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.
- Belt width range
- 800-1200 mm | 32-48"
- Multi track belt
- 2 parallel belts
- Load range
- Total per belt,up to 100 kg/m | 67 lb/ft
- Speed range
- Up to 60 m/min | 200 fpm
- Elevation
- Virtually unlimited,commonly per drive 15 m | 50 ft
- Belt length
- Up to per drive system 60 m | 200 ft
- Footprint
- 2460 mm / 8'-1" to 3420 mm / 11'-3"
- Material
- Dry use,Wipe down (R),Wash down economic (CR),Wash down total (RS)
- Design compactness
- Up to 50% more compact
- Belt width
- 800-1200 mm | 32-48"
- Multi track belt
- 2 parallel belts
- Load capacity
- Up to 100 kg/m | 67 lb/ft
- Speed range
- Up to 60 m/min | 200 fpm
- Elevation capability
- Virtually unlimited,commonly per drive 15 m | 50 ft
- Belt length per drive
- Up to 60 m | 200 ft
- Supported goods types
- Cartons,parcels,luggage,crates
- Wipe down
- (R)
- Wash down economic
- (CR)
- Wash down total
- (RS)
- Material type
- Belt handling
- Belt width
- 800-1200 mm | 32-48"
- Footprint
- Various (e.g.,SVe 800-1612
- Multi track belt
- 2 parallel belts
- Load range
- Up to 100 kg/m | 67 lb/ft
- Elevation
- Virtually unlimited,commonly per drive 15 m | 50 ft
- Belt length
- Up to per drive system 60 m | 200 ft
- Speed range
- Up to 60 m/min | 200 fpm
- Belt width options
- 800-1200 mm | 32-48"
- Multi track belt
- 2 parallel belts
- Load capacity
- up to 100 kg/m | 67 lb/ft
- Speed range
- up to 60 m/min | 200 fpm
- Elevation capability
- virtually unlimited,commonly per drive 15 m | 50 ft
- Belt length per drive system
- up to 60 m | 200 ft
- Footprint options
- Various configurations (e.g.,SVe 800-1612,SVe 1200-2210)
- Material
- Dry use / Wipe down / Wash down
