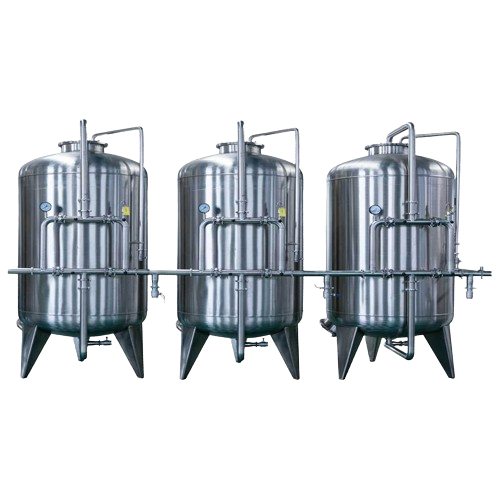

Water treatment multi medium filter tank

Ensure your bottled water’s purity with a multi medium filtration system that expertly handles turbidity, chlorine, and hard minerals, providing a reliable solution for maintaining water quality throughout high-speed production operations.

Filters, Softens, and Purifies Water for Bottling

The Water Treatment Multi Medium Filter Tank from Alps Machinery is engineered to enhance your bottling process by overcoming common water impurities and softening challenges. This system utilizes a combination of silica sand, active carbon, and sodium ion exchange to effectively remove suspended particles, chlorine, metals, and hard water ions. With a processing capacity ranging from 1,000 to 10,000 liters per hour, it seamlessly integrates into high-speed continuous operations. Ideal for producing bottled mineral, spring, and purified water, it ensures optimal water quality. Its robust design features materials resistant to corrosion and offers optional PLC control for easy integration and automation. The equipment supports CIP systems for efficient cleaning and minimal downtime, making it a reliable addition to any food and beverage production line.

Benefits

  • Enhances water quality by removing impurities and softening hard water.
  • Increases production efficiency with high-capacity throughput up to 10,000 liters per hour.
  • Integrates seamlessly into existing lines with PLC-controlled automation.
  • Lowers operational costs by reducing mineral scaling and maintenance needs.
  • Ensures consistent compliance with water purity standards across beverage applications.

General


Applications
Mineral water,Pure water,Drinking water,Spring water
End products
Packaged drinking water,Bottled mineral water,Bottled spring water,Distilled water,Purified bottled water
Steps before
Raw Water Pre-filtration,Pre-Treatment,Water Source Analysis
Steps after
Ozone Sterilization,UV Sterilization,Filling and Packing
Input ingredients
raw water,untreated water,water containing suspended matter,water with organic matter,water with colloidal particles,water with microorganisms,water with chlorine,water with heavy metal ions,water with calcium ions,water with magnesium ions
Output ingredients
pure water,mineral water,drinking water,spring water,softened water,turbidity-reduced water,water with reduced chlorine content,water with reduced odor,water free of organic matter,water free of iron
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
500–100000 Liter per hour
Function
Reverse Osmosis
Filter Media
Silica Sand,Active Carbon,Sodium Ion
Application
Drinking water / Pure water / Mineral Water / Spring water

Operating Characteristics


Working Mechanism
Reverse Osmosis
Batch vs. Continuous Operation
Inline Continuous
Automation Level
Manual / Automated
CIP/SIP
CIP
Cleaning Method
Manual / CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Media Compatibility
Silica Sand,Active Carbon,Sodium Ion
Heavy Metal Resistance
Yes

Product type Characteristics


Application type
Drinking water / Pure water / Mineral Water / Spring water
Water softening
Yes (Calcium and Magnesium ions exchanged by Sodium ions)

Physical Characteristics


Machine footprint
Dependent on capacity
Tank shape and size
Pressure filter vessel
Capacity
1 ton ~ 10 ton / hour
Filter media
Silica Sand,Active Carbon,Sodium Ion
Feed/discharge method
Pressure-based filtration

Custom Options


Filter Media
Silica Sand,Active Carbon,Sodium Ion
Capacity Range
500~100000 Liter per hour
