Water purification system for endoscope reprocessors
Ensure reliable water quality with a purification system designed to support high-output facilities, delivering compliant water for endoscope reprocessing and critical lab procedures.
Purifies and Distributes High-Quality Water

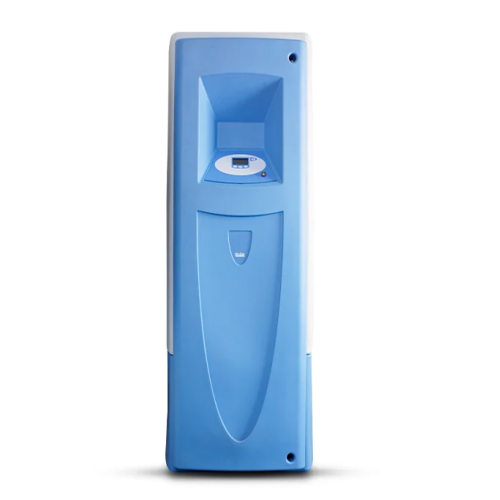

The BIOPURE 300/600 from ELGA LabWater is a cutting-edge water purification system designed for stringent medical and laboratory applications. Utilizing reverse osmosis, electrodeionization, and ultraviolet treatment, it ensures the delivery of high-quality purified water, essential for clinical biochemistry, microbiology, and endoscope reprocessing. With a capacity of up to 600 liters per hour, it supports continuous, automated operations and centralized distribution, making it a reliable choice for healthcare facilities and pharmaceutical labs. Its unique design provides effective bacterial control and a robust disinfection process, ensuring compliance with healthcare regulations. The system’s compact footprint facilitates easy installation, while automated alarms and a secure access “E key” enhance operational safety and system integrity.
Benefits
- Ensures compliant purified water delivery, critical for medical and laboratory equipment performance.
- Enhances operational efficiency through continuous, high output water supply.
- Minimizes contamination risk with advanced bacterial control technologies.
- Streamlines installation and maintenance with a compact design and automated system checks.
- Supports regulatory compliance and quality standards in healthcare and pharmaceutical environments.
- Applications
- Microbiology, Molecular biology, Electrochemistry, Biopharmaceuticals, General lab water requirement, Laboratory research, Immunochemistry, High performance liquid chromatography (hplc), Clinical biochemistry, Pharmaceuticals
- End products
- Steps before
- Pre-filtering, Initial washing, Water supply pre-treatment
- Steps after
- Sterilization, Endoscope reprocessing, Washer disinfector application
- Input ingredients
- raw feedwater, inorganic compounds, organic compounds
- Output ingredients
- compliant purified water, RO water, Type 2 water, water with <1 CFU/10ml bacteria, water with <0.25 EU/ml bacterial endotoxin, purified water at 300 liters/hr, purified water at 600 liters/hr
- Market info
- Dispense flowrate
- 300, 600 l / h
- Inorganics (resistivity at 25°C)
- <30 μS / cm
- Bacteria
- <1 CFU/10ml
- Bacterial endotoxin
- <0.25 EU / ml
- Delivery flow rate
- Up to 30 l / min at 3.5 bar
- Reverse Osmosis Module Life Expectancy
- 24-36 months
- UV Light Life Expectancy
- 12-18 months
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Energy efficiency
- 0.5–2 kWh/kg moisture
- System disinfection
- Easy system disinfection
- Sanitization design
- Unique sanitization design
- Automated alarms
- Automated alarms for protection
- Access control
- Access limited by "E key"
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Control panel type
- Touchscreen HMI
- Integration possibilities
- SCADA compatible
- System design
- Modular
- Storage reservoir size
- 350 liters
- Flow rate settings
- 300/600 liters per hour
- Alarm settings
- Automated alarms
- System disinfection
- Automated sanitization process
