Vibratory separator for efficient solid-liquid separation

Maximize throughput and efficiency in your production line with a high-speed vibratory separator that ensures precise solid-liquid separation, optimal for continuous operations requiring consistent product quality and reduced downtime.

Separates and Screens Diverse Materials Efficiently

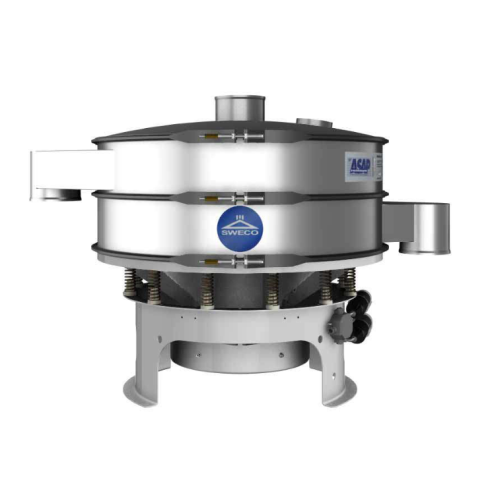

The HX Series Round Separator from SWECO is a state-of-the-art vibratory screening solution that excels in separating and screening a wide range of materials. This equipment features a unique Vibro-Energy mechanism, using eccentric weights to generate multi-plane motion for precise material separation. Ideal for sectors such as agriculture, biofuel, and pharmaceuticals, it handles applications from corn meal processing to treated wastewater management, with capabilities to separate particles as fine as 400 mesh. Available with up to four screen decks, it requires no special flooring, optimizing space and energy usage with its efficient motor design. Compliance with CE standards ensures safety and quality, while easy adjustment and maintenance streamline operations. The ProGlide™ Linear Weight System allows for fine-tuning motion, enhancing throughput and efficiency. Constructed with durability in mind, it supports both wet and dry processes, making it a versatile addition to any production line.

Benefits

  • Enhances productivity with up to four screen decks, optimizing material throughput.
  • Minimizes energy costs through efficient motor control and design.
  • Increases safety with a CE-compliant lower weight guard to prevent injuries.
  • Simplifies maintenance and reduces downtime with the easy-to-adjust ProGlide™ weight system.
  • Compatible with diverse material types, supporting both wet and dry processes.

General


Applications
Food,Mineral,Maritime,Beverage,Laundry,Chemical,Ceramic,Wastewater,Plastic,Pulp,Paper,Mining,Shot peening,Agriculture,Powder coating,Biofuel,Recycling,Pharmaceutical
End products
Ship ballast water processing,Detergent chemicals,Milled flour,Pharmaceutical tablets,Mineral powders,Powder coatings,Wood pulp,Plastic pellets,Recycled plastics,Ceramic tiles,Crushed ore,Ethanol fuel,Treated wastewater,Shot-peened metal parts,Laundry detergents,Corn meal,Fruit juices
Steps before
Grinding,Emulsification,Purification
Steps after
Packing,Coating,Recycling
Input ingredients
solids and liquids mixture,dry materials,particles up to 400 mesh,wet or dry materials,heavy or light materials,coarse or fine materials,hot or cold materials
Output ingredients
separated solids,separated liquids,segregated materials into various sizes
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Screen mesh size
Up to 400 mesh (37 microns)
Number of screen decks
Up to 4
Vibration amplitude
Adjustable
Horizontal and vertical force
Adjustable via ProGlide™ Linear Weight System
Power requirement
Less horsepower needed
Floor space requirement
Minimal
Material compatibility
Can screen both wet and dry,heavy and light,coarse and fine,hot and cold materials
Changeover and maintenance
Tool-less adjustment of weights and easy screen change
Safety features
Lower weight guard complying with CE Standards

Operating Characteristics


Vibration Mechanism
Eccentric weights
Particle Size Separation
As fine as 400 mesh (37 microns)
Movement Pattern
Spiral screening pattern
Operation Type
Wet / Dry separation
Screen Decks
Up to 4 decks
Amplitude and Force Adjustment
ProGlide™ Linear Weight System
Safety Features
Lower Weight Guard
Cleaning and Maintenance
Easy screen change,no special foundation required

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material type
Wet or dry,heavy or light,coarse or fine
Product separability
Solids from liquids

Physical Characteristics


Vibratory separator shape
Round
Screen size
Up to 4 decks
Weight adjustment mechanism
ProGlide™ Linear Weight System
Lower weight guard
Included

Custom Options


Weight System
ProGlide™ Linear Weight System
Screen Decks
Up to 4 screen decks
Weight Adjustment
No-tools adjustment
Safety Features
Lower Weight Guard
