Vibrating calibration system for seed sieving
Streamline seed processing with a self-cleaning system that easily swaps sieves, preventing blockages and optimizing efficiency in sorting and calibration tasks.
Sieves and Calibrates Seeds Efficiently

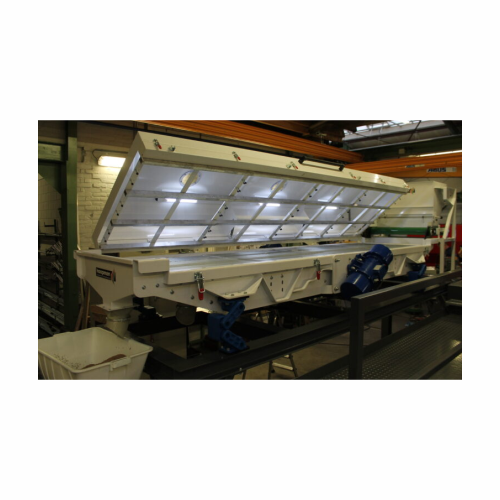

The VCS1000 Vibrating Calibration System from Hoopman Equipment & Engineering revolutionizes seed sieving with its unique design and functionality. Featuring an innovative sieve clamping mechanism, it allows for seamless sieve changes, minimizing downtime and reducing parts misplacement. This system is ideal for agricultural businesses focused on processing vegetable, flower, and grass seeds, as well as grain kernels, by effectively sieving, calibrating, and sorting these products into multiple size fractions.
Operating on a high-speed, continuous basis, the VCS1000 integrates seamlessly into existing processing lines with its plug-and-play setup, including a standard inlet system, dust hood, and control box. The equipment can accommodate up to four 1000x1000mm sieves per run and offers the flexibility to expand further when needed. The built-in ball-frame design ensures self-cleaning during operation, preventing sieve blockage and ensuring efficient throughput.
Recognized for its energy-efficient operation, the system allows precise control over vibration speed through its user-friendly display, optimizing sieving accuracy and auto-cleaning. Constructed for versatility, it can be integrated within processing and cleaning & purification departments across seed processing, agriculture, and food industries.
Benefits
- Increases sorting efficiency with easy sieve changes, reducing downtime.
- Optimizes seed purity and uniformity through precise calibration.
- Enhances operational efficiency by preventing sieve blockage with self-cleaning design.
- Integrates seamlessly within existing systems with a plug-and-play setup.
- Offers energy savings with customizable and optimized vibration speed settings.
- Applications
- Grains,Agricultural products,Seeds
- End products
- Grain kernels,Grass seeds,Vegetable seeds,Flower seeds,Alfalfa seeds
- Steps before
- Sorting,Priming,Disinfection
- Steps after
- Coating,Drying,Conditioning
- Input ingredients
- seeds
- Output ingredients
- sorted seeds,calibrated seeds,seed fractions
- Market info
- Vibration Control
- Adjustable
- Sieve Size
- 1000x1000 mm
- Number of Sieves
- 3 or 4 standard,up to 6/8 with additional boats
- Sorting Fractions
- 4/5 fractions
- Automation
- Auto cleaning and speed control
- Noise Level
- Low noise design
- Cleaning System
- Ball-frame self-cleaning
- Dust Control
- Dust hood included
- Control System
- Plug,play with control box
- Working mechanism
- Vibrating sieve
- Integrated steps
- Sieve changing system,dust extraction
- Automation level
- Control box with display for speed and cleaning
- Batch vs. continuous operation
- Batch
- Changeover time
- Quick due to easy sieve changing system
- Cleaning method
- Auto-cleaning with vibration and ball-frame
- Noise level
- Less noise due to new design
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Sieve size
- 1000x1000 mm
- Number of sieves supported
- 3 or 4 standard
- Up to 6/8 with additional boats
- Discharge method
- Sorted into 4/5 fractions
- Noise level
- Less noise
- Dust extraction
- Included
- Control panel type
- HMI display
- Integration Possibilities
- Plug,Play
- Dust extraction
- Included
