Vial external washer for cytotoxic product decontamination

Optimize the decontamination of pharmaceutical vials and containers by ensuring thorough external washing, minimizing contamination risks, and safeguarding operators from exposure to potent compounds throughout the aseptic processing line.

Decontaminates and Washes Vial Exteriors

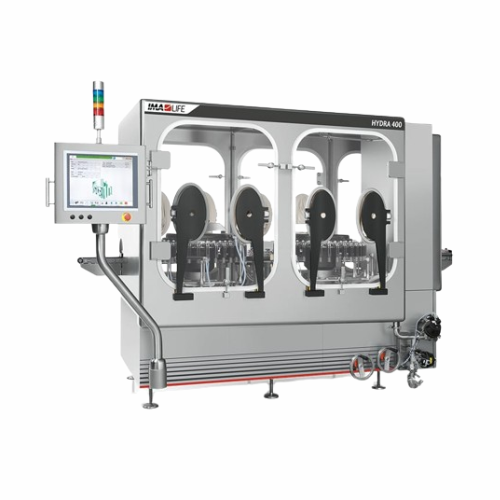

The HYDRA Series Vial External Washers by IMA Group are engineered to precisely decontaminate pharmaceutical container exteriors following the filling process. Enhancing safety in production, these rotary washers clean glass and plastic vials, making them integral to aseptic processing lines. With a compact design, they offer high-speed continuous operation, efficiently washing and drying vials while minimizing the risk of cross-contamination. Each model, HYDRA 100, 300, and 400, processes varying throughputs, with up to 400 vials per minute, by utilizing segregated washing circuits and specialized seals for optimized performance. Engineered for ease of maintenance, they feature rounded corners for improved drainage and are PLC-controlled for process repeatability. Options include RABS or isolator enclosures for enhanced containment, meeting the stringent requirements of pharmaceutical and biotech manufacturing environments.

Benefits

  • Ensures safe handling of hazardous compounds by effectively decontaminating vial exteriors.
  • Saves valuable floor space with a compact footprint without compromising functionality.
  • Minimizes maintenance time due to simple mechanical drives and accessible machine areas.
  • Supports regulatory compliance with integration-ready RABS or isolator configurations.
  • Enhances process reliability with Siemens PLC-controlled operations for precision and safety.

General


Applications
Pharmaceutical containers,Cytotoxic products,Potent compounds,Aseptic processing lines
End products
Cytotoxic drug vials,Plastic cylindrical containers,Injectable vials,Vials,Potent compound vials,Glass bottles
Steps before
Filling,Aseptic Processing
Steps after
Sterilization,Packing,Quality Control
Input ingredients
glass containers,plastic containers,bottles,vials,cylindrical containers,water,washing media,toxic products
Output ingredients
decontaminated vials,decontaminated bottles,decontaminated containers,clean outer surfaces
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Washing stations
4-8
Vial range Ø
14.75 – 52 mm (HYDRA 100),14.75 – 66 mm (HYDRA 300),14 – 54 mm (HYDRA 400)
Vial height
34.5 – 110 mm (HYDRA 100),34.5 – 136 mm (HYDRA 300),34 – 110 mm (HYDRA 400)
Output (vials/minute)
60 (HYDRA 100 with vials Ø 52 mm),150 (HYDRA 300 with max. vial Ø 24 mm),200-400 (HYDRA 400 with vial Ø 32 mm)
Water consumption
400 – 600 litres/hour (HYDRA 100),600 – 900 litres/hour (HYDRA 300),900 – 1200 litres/hour (HYDRA 400)
Water pressure
2.5 – 4 bar
Compressed air consumption
3000 litres/minute (HYDRA 100),3100 litres/minute (HYDRA 300),3200 litres/minute (HYDRA 400)
Compressed air pressure
6 bar
Standard voltage
400 V – 50 Hz
Installed power
5 kW
Weight
1200 kg (HYDRA 100),1600 kg (HYDRA 300),2000 kg (HYDRA 400)
Automation
Siemens PLC and HMI

Operating Characteristics


Working mechanism
Rotary external washer
Integrated steps
Decontamination of vial surfaces
CIP/SIP
Optional RABS or isolator enclosure
Batch vs. continuous operation
Continuous
Automation level
Siemens PLC and HMI
Cleaning method
Water and dedicated washing media
Changeover time
Easy access for quick maintenance
Energy efficiency
Designed for low energy usage
Water drainage
Improved via rounded corners
Space efficiency
Reduced machine footprint

Material Compatibility


Corrosive resistance (e.g. acids)
Yes (dedicated washing media for toxic products)

Product type Characteristics


Container type
Glass / Plastic (Cylindrical)

Physical Characteristics


Machine footprint
Reduced
Compact footprint
Space-saving design
Machine weight
1200-2000 kg
Machine layout
Integrated drives and washing circuit within the machine frame
Rounded corners
Improving water drainage and cleanability
Container type compatibility
Glass or plastic cylindrical containers

Custom Options


Control panel type
Siemens PLC and HMI
Integration possibilities
Can be pre-arranged with RABS or installed within an isolator
Machine footprint
Compact
Water supply design
Avoids cross contamination
