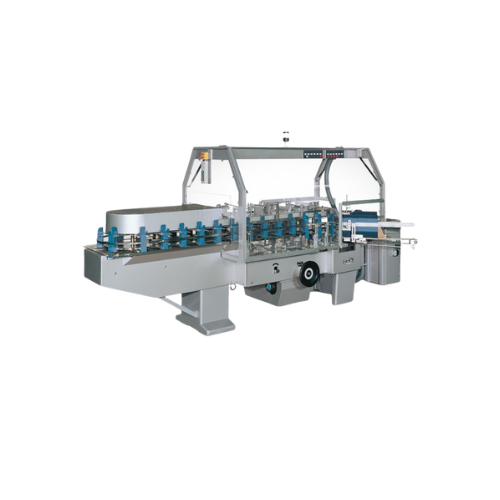

Vertical intermittent motion cartoner for manual or automatic feeding

Optimize your cartoning process with a machine designed for seamless integration, offering compact versatility for both manual and automatic feeding, and ensuring precise product placement to enhance packaging efficiency.

Erects and Loads Cartons with Precision

The AV Vertical Intermittent Motion Cartoner from CAM offers a compact, versatile solution for various packaging needs in the pharmaceutical, food, and consumer goods industries. This machine distinguishes itself by its mobile blade mechanism, which efficiently erects cartons by pre-opening and precisely inserting them between transfer lugs, thus accommodating low grammage boards and imperfectly creased or glued cartons. Specifically engineered to handle complex product configurations, it supports both manual and automatic feeding, making it highly adaptable to different production requirements. The vertical product introduction method is ideal for items that require specific internal orientations, ensuring optimal presentation and packaging integrity.

This cartoner excels in integrating with existing production lines, offering automation capabilities that enhance operational efficiency. Its flexible design allows easy incorporation of CAM’s range of automatic product feeding systems, tailored to meet diverse packaging requirements. With a focus on ease of maintenance, the AV cartoner features a cantilevered carton transfer system, facilitating quick cleaning and reduced downtime. Operators benefit from ample feeding space, supporting simultaneous manual input from multiple users, enhancing productivity. Designed to provide reliability and convenience, the AV Vertical Intermittent Motion Cartoner is a robust choice for operations needing precise packing, erecting, and feeding of solid products such as blister packs, cartoned bottles, and boxed goods.

Benefits

  • Enhances packaging versatility with adaptable manual and automatic feeding options.
  • Minimizes downtime through easy maintenance with accessible design.
  • Ensures product integrity with precise vertical introduction, ideal for complex configurations.
  • Accommodates lightweight and imperfectly creased cartons, reducing material waste.
  • Increases productivity with simultaneous multi-operator manual feeding capability.

General


Applications
Personal care products,Nutraceuticals,Consumer goods,Packaging,Food products,Cartoning,Pharmaceuticals
End products
Sealed spice packets,Boxed skincare creams,Consumer electronics cartons,Packaged nutraceutical powder sachets,Cartoned toothpaste tubes,Sealed snack packages,Blister packs of tablets,Boxed personal hygiene products,Packaged softgel capsules,Cartoned bottled vitamins
Steps before
Carton supply,Carton loading,Product preparation
Steps after
Packing,Sealing,Quality inspection,Labeling
Input ingredients
cartons,products for packing,glueing,creasing
Output ingredients
erected cartons,packed products
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Carton Size
Square-section or other formats
Automation
Manual or Automatic Feeding
Carton Material Compatibility
Low grammage board
Machine Type
Intermittent motion vertical cartoner
Footprint
Compact
Feeding System
Automatic product feeding systems
Cleaning
Easy cleaning due to cantilevered transfer
Performance
High performance
Lead Time
Short lead time
Maintenance
Easy maintenance
Operator Requirement
Allows more than one operator for manual feeding

Operating Characteristics


Working mechanism
Intermittent motion
Feeding type
Manual or Automatic
Loading method
Vertical introduction
Cleaning method
Easy cleaning with cantilevered transfer

Product type Characteristics


Container type
Cartons
Product introduction
Vertical

Physical Characteristics


Compact footprint
Yes
Machine footprint
Compact
Vertical introduction
Yes
Carton pick-off method
Mobile blade
Transfer method
Cantilevered
Feeding method
Manual/Automatic

Custom Options


Integration possibilities
Automatic product feeding systems
