Vacuum marinating and tumbling for laboratories and small enterprises

Streamline your meat processing operations with versatile vacuum tumblers designed for precise marinating, tumbling, and dry salting, ensuring consistent flavor integration and texture in every batch.

Marinates and Tumbling Meat Products

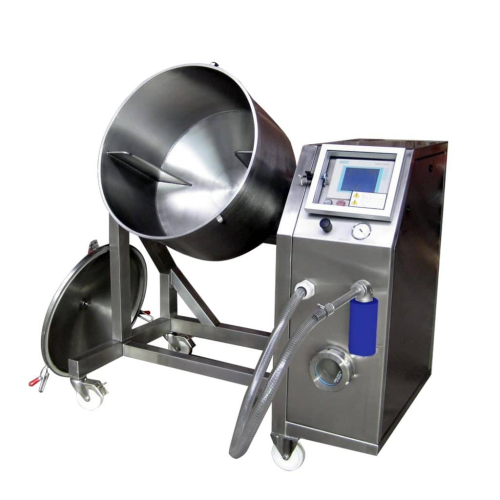

The Type MVT Vacuum Tumbler from Henneken is engineered to enhance the marinating and dry salting processes for meat processing enterprises, laboratories, and small-scale food producers. This versatile tumbler operates with an adjustable working angle and a stepless rotational speed ranging from 3 to 12 RPM, allowing for precise control over product texture and flavor absorption. Available in 50, 150, and 250-liter capacities, the MVT conveniently integrates into both pilot and manual batch operations.

Designed for mobility with integrated wheels, the MVT is easily repositionable to accommodate cold storage environments, facilitating seamless integration into various processing stages. Ideal for producing marinated chicken breasts, dry salted pork belly, and vacuum-tumbled beef cuts, the MVT ensures consistent and uniform processing.

The unit features interval vacuum capability and individual process control for improved customization per batch, enhancing efficiency in terms of flavor penetration and texture uniformity. Engineered for energy efficiency with optimized motor control, it provides reliable performance with minimal power consumption. Constructed for durability and compliance, the Type MVT Vacuum Tumbler stands as a robust solution for meat processing needs.

Benefits

  • Enhances flavor distribution and meat texture consistency with precise control over tumbling speeds and vacuum intervals.
  • Improves flexibility in production line placement with mobile design optimized for cold storage environments.
  • Increases operational efficiency by reducing process time through customizable batch settings.
  • Minimizes energy consumption with optimized motor control, making it cost-effective for small-scale producers.
  • Versatile across various meat processing applications, ideal for both handcrafted and laboratory-scale productions.

General


Applications
Meat processing,Cold storage,Dry salting,Laboratories,Marinating
End products
Laboratory sample meat mixtures,Marinated chicken breast,Pre-packaged marinated fish portions,Dry salted pork belly,Vacuum-tumbled beef cuts
Steps before
Marinating,Dry Salting,Vacuum Preparation
Steps after
Cold Storage,Packaging,Further Processing
Input ingredients
meat,marinade,dry salt
Output ingredients
marinated meat,salted meat
Market info
Henneken Tumbler is known for manufacturing high-quality tumbling and marinating equipment for the meat processing industry, recognized for innovative designs and reliable performance in enhancing food flavor and texture.

Technical Specifications


Capacity
50 liters
Capacity
150 liters
Capacity
250 liters
Rotational Speed
3-12 RPM
Power Consumption
0.6 kW (50 liters)
Power Consumption
1.1 kW (150 liters)
Power Consumption
1.1 kW (250 liters)
Width
650 mm (50 liters)
Width
800 mm (150 liters)
Width
900 mm (250 liters)
Length
1,000 mm (50 liters)
Length
1,650 mm (150 liters)
Length
1,700 mm (250 liters)
Height
1,890 mm (50 liters)
Height
2,180 mm (150 liters)
Height
2,280 mm (250 liters)
Adjustable Working Angle
Yes
Interval Vacuum Control
Yes
Individual Control
Yes
Mobility
Equipped with wheels

Operating Characteristics


Working mechanism
Tumbling
Integrated steps
Marinating,dry salting
Adjustable working angle
Yes
Rotational speed
3-12 RPM
Interval vacuum
Yes
Individual control
Yes
Batch vs. continuous operation
Batch
Portability
Equipped with wheels

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
650 mm x 1000 mm x 1890 mm (50 L model)
Machine footprint
800 mm x 1650 mm x 2180 mm (150 L model)
Machine footprint
900 mm x 1700 mm x 2280 mm (250 L model)
Adjustable working angle
Yes
Rotational speed
3–12 RPM
Tumbler size
50 L / 150 L / 250 L
Mobility
Equipped with wheels

Custom Options


Working angle
Adjustable
Rotational speed
Steplessly adjustable from 3-12 RPM
Control
Individual control
Mobility
Equipped with wheels
