Vacuum belt filters for solid-liquid separation
Ensure high-efficiency solid-liquid separation and maximize filtrate recovery with continuous vacuum belt filtration. Ideal for processes requiring precise cake drying and washing, this system offers industry-leading performance and adaptability for various applications.
Separates and Dries Solid-Liquid Mixtures Continuously

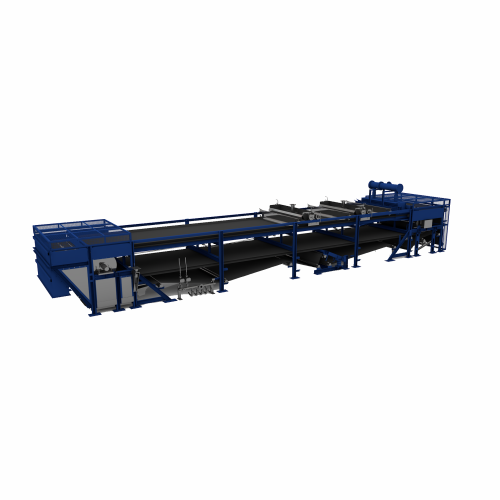

The PHILIPPE Vacuum Belt Filter from HASLER Group is engineered for efficient solid-liquid separation across various industries, including fertilizer production, hydrometallurgy, and chemical processing. This continuous filtration system leverages a vacuum-driven process to ensure high-efficiency cake drying and filtrate recovery, catering to applications ranging from ammonium nitrate fertilizers to refined bauxite.
Using an endless belt system with patented edges, it facilitates superior containment and thorough separation under gravity and vacuum forces. The system supports diverse process requirements through customizable washing zones and is designed to achieve over 98% filtrate recovery, depending on the material.
Operational throughput varies with configurations up to 200 m² and is enhanced by integrated PLC controls allowing precise adjustments and remote monitoring. The equipment is optimized for energy efficiency with optional recirculation systems that minimize water usage. Constructed from stainless steel and other durable materials, it offers resilience against corrosive and abrasive substances.
The PHILIPPE filter meets CE standards, emphasizing safety and compliance. Its design includes features like an easy-access pneumatic vacuum box, automatic cloth guidance, and tensioning systems, reducing downtime and ensuring seamless integration into existing production lines. For maintenance, the system is equipped with a tilting vacuum box for straightforward access and cleaning, supporting high-pressure and ultrasonic washing. HASLER Group offers extensive customization and engineering support to tailor the filter to specific processes and product requirements.
Benefits
- Achieves over 98% filtrate recovery, improving material utilization.
- Reduces water consumption through advanced recirculation and precise washing zones.
- Ensures safe operation with CE-compliant safety features and remote monitoring capabilities.
- Adapts to corrosive environments with robust, corrosion-resistant materials.
- Minimizes maintenance downtime with easy-access design for efficient cleaning and adjustments.
- Applications
- Polymers,Hydrometallurgy,Pharmaceuticals,Water treatment,Fertilisers,Metals recycling,Chemical industry products,Minerals processing,Amino,Technical ceramics,Specialty acids,Resins,Petroleum products,Pulp,Flue gas desulphurization,Metallurgical products,Cement
- End products
- Refined crude oil,Cellulose pulp,Refined bauxite,Recycled aluminum,Ammonium nitrate fertilizers,Polyethylene resins,Gypsum boards,Polyamide fibers,Acetic acid solutions,Treated wastewater,Zinc ingots,Refined nickel,Aspartame sweetener,Desulfurized flue gas,Penicillin antibiotics,Alumina ceramics
- Steps before
- Slurry Preparation,Grinding,Mixing
- Steps after
- Cake Drying,Filtrate Recovery,Packaging
- Input ingredients
- vine residue,gypsum,barium,barite,aragonite,andalusite,ammonium,bauxite,activated carbon,alginates,inulin,cobalt,aluminium,jarosite,indium,nickel,zinc,silver,oil sands,uranium,uranate,colloidal silica,phosphogypsum,furfural,calcium sulfate,copper oxychloride,rare earth oxalates,nitrocellulose,glutamate,enzymes,citric acid,boric acid,aspartame,alkalis,acetic acid,soda ash,zeolite,tartaric acid,stearic acid,sodium dichromate,pentaerythritol,methionine,hydrazine hydrochloride,glycoluril,gas desulfurisation,gallic acid,phosphoric acid,animal feed,threonine,potassium,phosphate,sylvinite,magnesium,pulp
- Output ingredients
- solids,liquids,cake
- Market info
- HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.
- Filtration system
- Continuous vacuum belt filtration
- Cake drying efficiency
- High level
- Filtrate recovery efficiency
- In excess of 98%
- Size range
- 0.1 m² to 200 m²
- Operational availability
- Over 98%
- Automation
- Industry 4.0-driven control
- Water savings
- Optimized cloth washing system
- Material selection
- Corrosion and abrasion resistant
- Automation level
- Smart measurement sensors
- Maintenance accessibility
- Easy access for cleaning and adjustment
- Cleaning method
- High-pressure wash,ultrasonic nozzle
- Support system
- Water-lubricated belt system
- Cloth guidance and tensioning
- Automatic
- Drums material
- Rubberized with steel shaft
- Filter cloth tensioning system
- Pneumatically driven
- Optional features
- High-pressure wash/ultrasonic wash
- Filter belt support
- Belt or roller system
- Operating rate
- In excess of 98%
- Vacuum mechanism
- Continuous vacuum belt filtration
- Automation level
- Fully controlled via smart sensors
- Water savings method
- Filter cloth washing systems,recirculated water
- Safety features
- Protected with grids and emergency stop cables
- Cleaning method
- Automatic filter cloth tensioning and guidance
- Cake washing efficiency
- Multiple washing zones,counter-courant washing
- Abrasion resistance
- High
- Corrosive resistance (e.g. acids)
- Selective (dependent on material)
- Density/particle size
- 0.5–2.5 g/cm³
- Cleanability
- Easy to clean
- Machine footprint
- 0.1 m² to 200 m²
- Discharge method
- Automatic / Manual
- Belt support system
- Flat belt / Roller system
- Belt material
- Custom-grooved rubber
- Filter cloth type
- Automatic tensioning and guidance
- Frame material
- Flat cut sheet metal / Structural steel
- Vacuum box accessibility
- Pneumatic tilting (omega profile)
- Drum material
- Rubberised with one-piece steel shaft
- Sliding strips material
- High-density polyethylene (HDPE)
- Belt edge type
- Patented belt edges
- Control Panel Type
- Smart Measurement Sensors,PLC
- Integration Possibilities
- SCADA Systems
- Belt Size
- 0.1 m² to 200 m²
- Material Selection for Corrosive/Abrasive Environment
- 316L and 904L Steel
