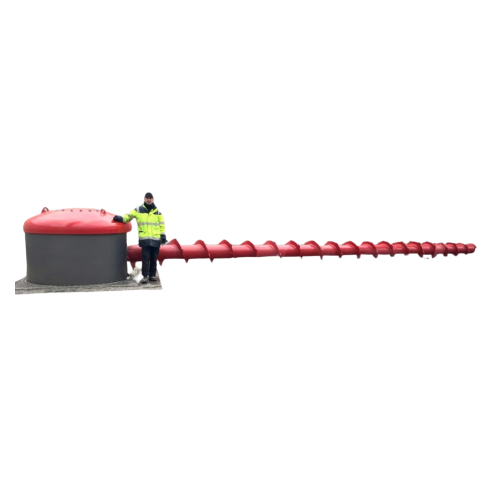

Unloader for non-free-flowing materials in flat bottom silos

Facing challenges unloading non-free-flowing materials? This hydraulic system ensures smooth, efficient discharge in flat bottom silos, regardless of material type or density, while following a FIFO strategy for optimal inventory management.

Unloads and Sweeps Non-Free-Flowing Silo Materials

The Hydraugyre from Morillon Systems is a hydraulic silo screw unloader designed to tackle the challenge of discharging difficult, non-free-flowing materials stored in flat-bottom silos. Its unique system employs a hydraulic transmission that drives an Archimedes screw, enabling high torque at low speeds. This configuration achieves smooth, 360° sweeps of silo contents while supporting FIFO (first in, first out) unloading. The Booster start-up system allows operation from a full silo, irrespective of the screw’s initial position, enhancing operational flexibility.

Ideal for industries such as food processing, agriculture, chemical, and biomass, the Hydraugyre manages a wide array of materials—from wood pellets and grain to powdered chemicals and minerals. It supports silos ranging from 2 to 27 meters in diameter, with discharge capacities up to 600 cubic meters per hour, adapting to various operational demands.

The Hydraugyre is plug-and-play, making installation straightforward and space-efficient. In terms of material and environmental adaptability, options include ATEX certification for explosive atmospheres and designs for high-temperature conditions (up to 150°C). Additionally, it offers stainless steel construction and the use of food-grade or biodegradable lubricants as part of Morillon’s eco-friendly Green System.

Engineered for durability and reliability, the system provides ease of maintenance—even under full-load conditions—ensuring minimal production disruption. This solution seamlessly integrates into existing setups, offering a significant upgrade in efficiency and reliability for large-scale storage and material handling operations.

Benefits

  • Enhances material flow by ensuring complete, efficient unloading of difficult-to-discharge materials.
  • Reduces operational interruptions with maintenance capabilities even when the silo is full.
  • Adapts to various materials and conditions with customizable options, including ATEX and high-temperature settings.
  • Optimizes space and energy use with compact, plug-and-play design featuring a low oil requirement.
  • Improves environmental sustainability through the use of biodegradable lubricants.

General


Applications
Peat,Animal feed,Clay,Minerals,Wood pellets,Grain,Coal,Food ingredients,Fibrous materials,Sand,Powdered chemicals,Biomass,Fertilizers,Cement
End products
Barbecue briquettes,Wood chips,Cornflakes,Ammonium nitrate,Baking powder,Insulation wool,Anthracite coal,Glass sand,Portland cement,Terracotta clay,Poultry feed,Talcum powder,Potting mix,Calcium carbonate powder
Steps before
Storage,Filling,Feeding
Steps after
Conveying,Transport,Packaging
Input ingredients
difficult materials,non-free-flowing materials,heavy materials,lightweight materials,powdery materials,fibrous materials,dry materials,wet materials
Output ingredients
unloaded products
Market info
Morillon is known for its expertise in designing and manufacturing industrial unloading systems, particularly silo dischargers suitable for handling bulk solids in challenging conditions, recognized for reliability and robust performance across various industries.

Technical Specifications


Unloading strategy
FIFO (first in,first out)
Transmission type
Hydraulic transmission
Silo diameter compatibility
2–27 metres
Discharge capacity
Up to 600 cubic metres per hour
Operating environment
Flat bottom silos
Torque transmission
High torque at low speed
Temperature tolerance
Up to 150°C
Material of construction
Stainless steel version available
Fluid used
Small quantity of oil,food grade oil optional

Operating Characteristics


Working mechanism
Hydraulic transmission with Archimedes screw
Automation level
Manual / Automatic start with Booster system
Start-up capability
Launch in full silo
Rotation range
360° rotation
Material handling capability
Non-free-flowing,heavy,lightweight,powdery,fibrous,dry,wet
Discharge capacity
Up to 600 cubic metres/hour
Size compatibility
For silos between 2 and 27 metres in diameter
Temperature operation
High temperatures up to 150°C
ATEX operation
Explosive atmosphere compatible

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Potential
Cleanability
Moderate
Corrosive resistance
Stainless steel version available
Density/particle size
Variable
Handles from powdery to fibrous materials
Feed type
Dry / Wet / Granular (powdery or fibrous)
ATEX environments
Option available
High temperature compatibility
Up to 150°C

Product type Characteristics


Product state compatibility
Dry/Wet


ATEX certification
Yes
FDA materials
Possible,with food grade oil option

Physical Characteristics


Machine footprint
Compact
Feed/Discharge method
Hydraulic transmission with Archimedes screw
Silo diameter
2 to 27 metres
Discharge capacity
Up to 600 cubic metres per hour
Screw rotation
360° rotation
Footprint space
Minimal due to compact design
Material construction
Stainless steel and other materials for different versions

Custom Options


Hydraulic Unit Integration
Plug and play system
Size Compatibility
Silos 2 to 27 metres in diameter
Output Regulation
Speed regulation
Material Options
Stainless steel version
Eco-friendly Options
Green System with biodegradable lubricants
Operating Temperature
Up to 150°C
ATEX Certified Version
Available
Oil Type
Possibility of using food grade oil
