Ultra filtration water treatment system for drinking water

Achieve exceptional water purity with advanced hollow fiber ultrafiltration technology, which effectively removes suspended solids, bacteria, and viruses, ensuring safe and clean water for bottling and manufacturing processes.

Purifies and Filters Water for Bottled Applications

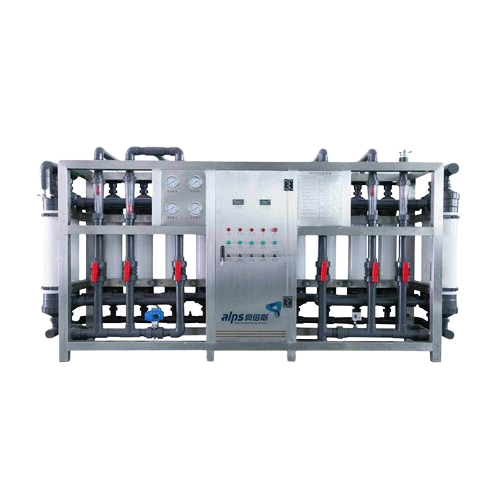

The UF-XT from Alps Machinery is a hollow fiber ultrafiltration water treatment system designed for diverse water purification applications. This equipment utilizes a dissymmetrical semipermeable membrane, made from specialized macromolecule material, to separate and concentrate substances within raw liquid. With a capacity range of 1 to 10 tons per hour, it efficiently processes drinking, pure, mineral, and spring water to meet stringent quality demands. Fully automatic in operation, the UF-XT seamlessly integrates into existing production lines, featuring continuous filtration and purification with precision down to 10 nanometers. It is designed to support beverage manufacturers and bottling facilities in ensuring high-quality water for end products like bottled mineral and spring water. The system’s robust construction offers material options for enhanced corrosion resistance, suited for various industry standards. Additionally, it supports clean-in-place (CIP) systems, facilitating easy maintenance and prolonged equipment longevity.

Benefits

  • Achieves high water purity, ensuring quality compliance for bottled water production.
  • Integrates seamlessly into existing lines, enhancing operational efficiency.
  • Reduces maintenance efforts with built-in clean-in-place system.
  • Operates continuously with minimal operator intervention, lowering labor costs.
  • Ensures scalability with customizable throughput from 1 to 10 tons per hour.

General


Applications
Mineral water,Pure water,Drinking water,Spring water
End products
Packaged drinking water,Purified water for beverage manufacturing,Mineral water bottles,Bottled spring water,Bottled pure water,Packaged natural spring water
Steps before
Water Source Acquisition,Pre-filtration,Initial Screening
Steps after
Sterilization,Storage,Bottling,Distribution
Input ingredients
raw liquid,water,macromolecule substance,colloid particles
Output ingredients
pure water,mineral water,drinking water,spring water
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
1000 - 10000 Liter/hour
Filter Precision
10nm
Membrane Material
Hollow fiber
Function
Reverse Osmosis
Application
Pure water / Mineral Water / Drinking Water / Spring Water

Operating Characteristics


Working Mechanism
Hollow Fiber Ultra Filtration
Automation Level
Automatic
Batch vs. Continuous Operation
Continuous
Cleaning Method
CIP / Manual
Flow Rate
1 ton - 10 ton/hour

Product type Characteristics


Water type compatibility
Pure water / mineral water / drinking water

Custom Options


Control panel type
PLC / HMI
