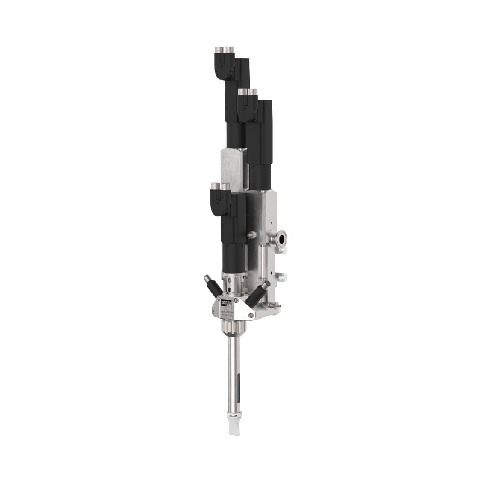

Two-component static-dynamic mixer for high-viscosity materials

Simplify the challenging task of mixing two-component materials with vastly different viscosities, ensuring consistent quality and precision in your production processes.

Mixes and Dispenses Two-Component Materials

The vipro-DUOMIX from ViscoTec is an innovative static-dynamic mixer designed for the precise handling and dispensing of compressible, two-component materials across varying viscosities. Featuring a modular design with five dispenser sizes per side, it accommodates a wide range of mixing ratios from 1:1 to 100:1. This system excels in industries such as automotive, aerospace, and electronics, providing solutions for applications like honeycomb panel potting, LED encapsulation, and aircraft edge sealing. The vipro-DUOMIX maintains its compact form, making it ideal for integration into robotic cells. Its design optimizes flow and back pressure to prevent material compression, while the independently adjustable dispenser speeds ensure consistent mixing quality. The parallel alignment of dispensers enhances energy efficiency, and its robust construction is suitable for handling materials like polyether, epoxy resin, silicone, and polyurethane. For automated environments, this system offers high precision and reliability, supported by ViscoTec’s engineering expertise.

Benefits

  • Enhances operational flexibility with adjustable mixing ratios from 1:1 to 100:1.
  • Minimizes material waste through gentle handling that prevents compression.
  • Increases production efficiency with a compact design suitable for robotic integration.
  • Supports diverse applications with compatibility across polyether, epoxy, silicone, and polyurethane materials.
  • Ensures precise and consistent material dispensing with independent speed control of dispensers.

General


Applications
Automotive,Polyether products,Aerospace,Silicone products,Polyurethane products,Electronics,Epoxy resin products
End products
Led encapsulation,Printed circuit board conformal coatings,Automotive sealants,Epoxy resin castings,Polyurethane foam cushions,Silicone gaskets,Polyether adhesives,Aircraft edge sealants,Honeycomb sandwich panels
Steps before
Material Selection,Viscosity Assessment,Material Preparation
Steps after
Quality Inspection,Assembly Integration,Automated Packaging
Input ingredients
compressible materials,two-component materials,low-viscosity materials,high-viscosity materials,polyether,epoxy resin,silicone,polyurethane
Output ingredients
mixed materials,dot dispensing,bead application,potting application,honeycomb potting,edge sealing
Market info
Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.

Technical Specifications


Compatibility
Two-component materials
Mixing Ratios
1
Dispenser Sizes
Five different sizes per side
Handling Viscosity
Low to high viscosity
Mixing Type
Static-Dynamic
Mixing Quality Adjustment
By speed of mixing elements
Design
Compact,weight-optimized
Channel Optimization
Flow and back pressure optimized
Automation Compatibility
Robotic cells or automated applications

Operating Characteristics


Mixing mechanism
Static-Dynamic Mixer
Material handling capability
Low to high viscosity materials
Mixing ratio range
1
Dispensing flexibility
Modular design with five dispenser sizes
Automation level
Compatible with robotic cells
Pressure sensitivity
Handles high-pressure sensitivity
Changeover capability
Adjustable bead width nozzles
Mixing quality adjustment
Dynamically adjustable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Compatibility with polyether,epoxy resin,silicone,polyurethane
Yes
Mixing of different viscosities
Low to high viscosity

Physical Characteristics


Compact footprint
Yes
Modular design
Five different dispenser sizes per side
Parallel alignment of dispensers
Yes
Weight-optimized design
Yes
Discharge method
Special nozzles with adjustable bead width

Custom Options


Modular design
Five different dispenser sizes
Mixing ratio adjustment
1
Speed adjustment
Independent speed control of dispensers
Nozzle configuration
Special nozzles with adjustable bead width
Integration possibilities
Ideal for robotic cells and automated applications
