Turkey leg processor for mechanized poultry processing

Streamline your poultry processing by efficiently deboning and separating turkey legs and thighs while reducing labor costs with this high-speed, continuous operation machine.

Debones and Splits Turkey Legs Efficiently

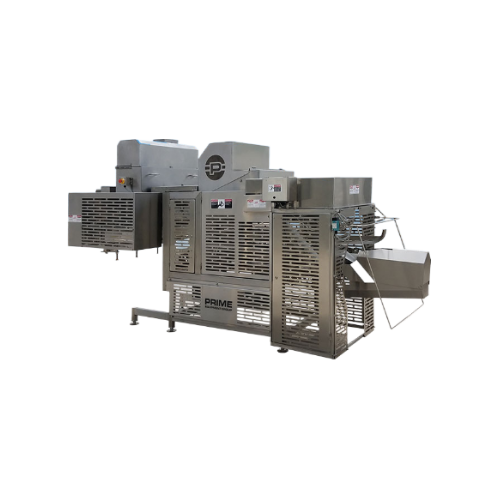

The Prime LP-1T Turkey Leg Processor from Prime Equipment Group is an automated solution designed to enhance efficiency in poultry processing lines. It specializes in deboning and splitting turkey legs, addressing the need for precise part separation. The machine efficiently cuts the ligament in the hip joint and uses an integrated auger to convey the leg into a splitting module, ensuring seamless separation of the thigh from the drumstick. This equipment is ideal for producing turkey legs, drumsticks, thigh fillets, and leg quarters commonly required in the food, poultry, and meat processing industries.

Capable of processing up to 38 toms or 32 hens per minute, the LP-1T optimizes throughput and reduces labor costs by handling tasks typically requiring multiple operators. Its operation is PLC-controlled, facilitating easy integration into existing production lines with minimal downtime. The machine requires a central hydraulic system, operating at 12 GPM and 1,200 PSI, and adheres to standard electrical requirements, making it a versatile choice for varied facility infrastructures.

Constructed for durability and reliable performance, the LP-1T’s design has evolved from the proven FoodCraft model, re-engineered by Prime Equipment Group for contemporary needs. Maintenance is straightforward, aligning with continuous, high-speed operations typical of processing plants, and ensuring extended machine uptime.

Benefits

  • Enhances productivity with the ability to process up to 38 toms or 32 hens per minute.
  • Cuts labor costs significantly by requiring just one operator for high-speed operations.
  • Ensures precise cuts with automated ligament cutting and auger-driven conveying.
  • Integrates smoothly into existing production lines with PLC-controlled automation.
  • Provides superior yield and consistent product quality through a re-engineered, proven design.

General


Applications
Seafood,Meat,Poultry
End products
Poultry cuts,Turkey leg quarters,Turkey thigh fillets,Turkey legs,Turkey drumsticks
Steps before
cutting,hip joint cutting,ligament cutting
Steps after
leg splitting,joint separation,portioning,slicing
Input ingredients
turkey legs,back half or saddle,hip joint ligament
Output ingredients
separated thigh,separated drumstick,removed back,oyster with thigh
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Production Rate
Toms
Electrical Requirements
120V,60 Hz,Control Circuit
Hydraulic Requirements
12 GPM @ 1,200 PSI
Net Weight
1,935 lbs (878 kg)
Gross Weight
2,060 lbs (943 kg)

Operating Characteristics


Automation level
Single operator
Batch vs. continuous operation
Inline continuous
Changeover time
Minimal
CIP/SIP
Manual
Cleaning method
Manual
Energy efficiency
Optimized for high yield
Production Rate Control
Variable speed
Working Mechanism
Mechanical removal and separation

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean
Density/particle size
0.8–1.5 g/cm³

Product type Characteristics


Process Type
Poultry Leg Deboning

Physical Characteristics


Net Weight
1,935 lbs (878 kg)
Gross Weight
2,060 lbs (943 kg)

Custom Options


Control panel type
HMI with user interface
