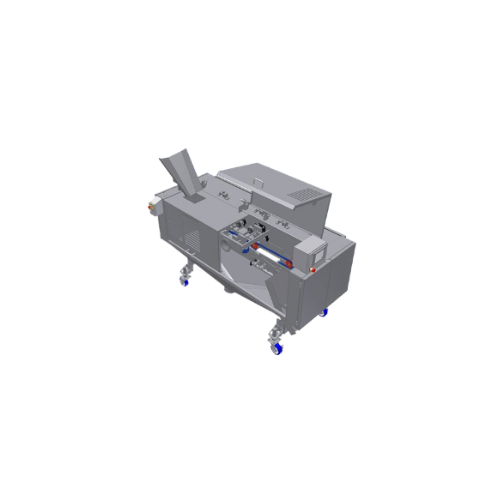

Turkey gizzard processor

Enhance efficiency in your poultry processing line by automatically splitting and rinsing turkey gizzards with precision, ensuring consistent cuts and reducing manual labor.

Processes and Rinses Turkey and Chicken Gizzards

The TGP-2 Turkey Gizzard Processor from Prime Equipment Group is a high-performance, automatic machine tailored for processing both turkey and chicken gizzards. This equipment stands out due to its high-pressure water knife splitting system, which enhances processing speed—handling up to 40 turkey tom gizzards or 50 turkey hen gizzards per minute—while maintaining precise cut quality. Its continuous and automatic operation reduces manual labor, making it an ideal choice for poultry, meat, and seafood processing applications.

Designed with integration in mind, the TGP-2 seamlessly slots into existing processing lines due to its compact footprint. The air knife system significantly lowers maintenance costs by eliminating blade replacements, enhancing uptime and operational efficiency. Engineered for consistent performance, this processor supports high-speed operations essential for industrial food producers. Its robust construction ensures long-term reliability, while the option for different materials offers improved durability and corrosion resistance in demanding environments.

Benefits

  • Enhances processing efficiency by reducing manual labor through automated operation.
  • Ensures consistent high-quality cuts with high-pressure water knife technology.
  • Minimizes maintenance costs and downtime via air knife design eliminating blade replacement.
  • Integrates seamlessly into existing production lines with a compact footprint.
  • Increases throughput with the capability to process up to 50 gizzards per minute.

General


Applications
Pet food,Seafood,Meat,Poultry
End products
Gizzard pet food,Chicken gizzards,Turkey gizzards
Steps before
Defeathering,Feather,Offal Screening
Steps after
Gizzard Peeling,Gizzard Repeeling,Gizzard Defatting,Whole Bird Chilling
Input ingredients
turkey tom gizzards,turkey hen gizzards
Output ingredients
split gizzards,rinsed gizzards,butterfly cuts
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Gizzard Processing Speed
40 turkey tom gizzards/minute
Gizzard Processing Speed
50 turkey hen gizzards/minute
Water Connection Size
3/4",1" connection
Water Flow Rate
10.0 GPM (37.85 LPM)
Water Pressure
40-80 PSI
High-Pressure Splitter Pump Motor
7.5 hp motor
High-Pressure Splitter Pump Voltage
230/460V,3 hp,60 Hz
High-Pressure Splitter Pump Flow Rate
3.0 GPM
Low-Pressure Flush Pump Motor
3/4 hp motor
Low-Pressure Flush Pump Voltage
230/460V,3 ph,60 Hz
Low-Pressure Flush Pump Flow Rate
8.0 GPM
Electrical Requirements
2 hp motor
480V,3 ph,60 Hz,30 amps
Net Weight
550 lbs. (249 kg)

Operating Characteristics


Automation level
Automatic
Cleaning method
High-pressure water knife
Batch vs. continuous operation
Continuous

Material Compatibility


Abrasion resistance
Yes
Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes

Physical Characteristics


Compact footprint
Yes
Machine footprint
Small
Weight
550 lbs. (249 kg)
Integration capability
With existing operation
Control panel type
Included

Custom Options


Compact footprint
Yes
Control panel type
Standard/Custom
Integration possibilities
SCADA/PLC systems
Customization for specific poultry types
Turkey tom/hen
