Thermovinification system for red grapes

Enhance your red wine production by rapidly extracting rich color and flavor compounds through controlled thermovinification, optimizing both product quality and operational efficiency in a continuous cycle.

Processes Crushed Grapes for Optimized Color Extraction

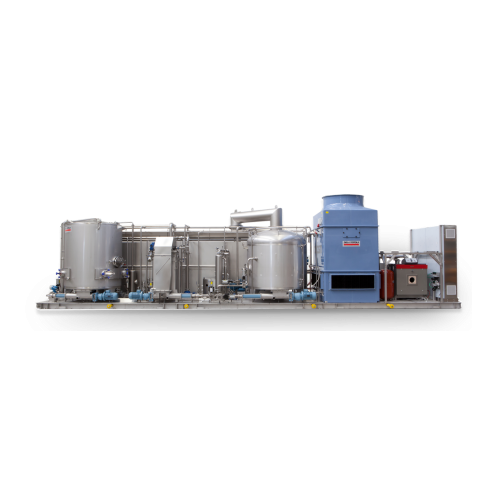

The Biothermo Thermovinification System by Della Toffola revolutionizes red wine production through its efficient and automated process. Designed specifically for the wine industry, this system expertly conducts thermovinification, employing a three-stage process of heating, maceration, and rapid anthocyanin extraction. Ideal for producing Bordeaux-style red wines, Merlot, Shiraz, and more, the Biothermo processes between 1.5 to 60 tons of crushed grapes per hour. Operating in a continuous cycle, it reduces operating costs and integrates seamlessly into existing winery setups. Its energy-efficient immersion circuit and boiler ensures optimized thermal processing, preserving the intrinsic qualities of the grapes. With robust materials ensuring long-term resilience, this system is a reliable solution for wineries aiming to enhance the color and flavor profile of their young wines.

Benefits

  • Enhances red wine color and flavor extraction in young wines through efficient thermovinification.
  • Increases production efficiency by processing up to 60 tons of grapes per hour.
  • Reduces operating costs with continuous and automated operation.
  • Integrates easily into existing winery systems, minimizing the need for extensive modifications.
  • Preserves the natural properties of grapes while achieving optimal anthocyanin extraction.

General


Applications
Young wines,Wine industry,Red wines,Crushed grapes
End products
Bordeaux-style red wine,Cabernet sauvignon,Shiraz wine,Beaujolais nouveau,Pinot noir,Sangiovese wine,Chianti,Merlot,Zinfandel
Steps before
Grape crushing,Initial maceration,Temperature preparation
Steps after
Normal tank vinification,Wine aging,Filtration,Bottling
Input ingredients
crushed grapes,red grapes
Output ingredients
anthocyanin extraction,extracted color,must,wine
Market info
Della Toffola is renowned for its expertise in designing and manufacturing industrial equipment for the wine-making, beverage, and food processing industries, providing customized, high-quality engineered-to-order solutions with a strong reputation for innovation and reliability.

Technical Specifications


Capacity
1.5 to 60 tons/hour
Maceration time
45 minutes
Automation
Continuous cycle
Operation costs
Limited

Operating Characteristics


Working Mechanism
Thermovinification
Integrated Steps
Storage tank,immersion circuit,maceration tank
Batch vs. continuous operation
Continuous cycle
Maceration Time
45 minutes
Capacity Range
1.5 to 60 tons/hour
Operating Cost
Limited
Adaptability
Adaptable to existing systems
Color Extraction Process
In-depth anthocyanin extraction

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Grape type
Red grapes

Physical Characteristics


Tank shape and size
3 components
Capacity
1.5 to 60 tons/hour

Custom Options


Capacity
1.5 to 60 tons/hour
Integration possibilities
Adaptable to existing wineries and systems
Compact footprint
Easy to integrate
System components
Storage tank,immersion circuit with boiler,maceration tank
Operating Cycle
Continuous cycle
