Texture analyzer for high force applications

Achieve precise texture measurement across a vast array of products with a solution designed for both delicate assessments and rigorous high-force testing, ensuring quality and consistency in every batch.

Measures and Analyzes Texture Variations

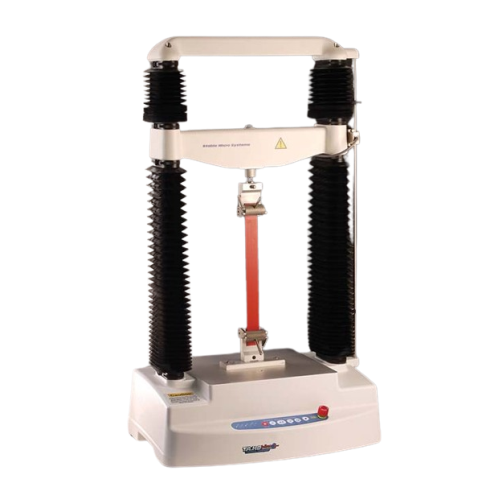

The TA.HDplusC Texture Analyser from Stable Micro Systems is designed for precision in texture measurement across a variety of industrial applications. This heavy-duty twin column analyser can gauge force up to 750kg.f, making it suitable for both delicate and robust materials. It features intelligent, factory-calibrated loadcells, ensuring accurate data from minimal force measurements to high-load testing.

Its role spans from food texture analysis in products like yogurt and protein bars to assessing pharmaceutical packaging and medical devices. The TA.HDplusC is equipped with a speed range up to 20mm/second, allowing diverse test types including stress and strain, cycling, and constant strain tests.

Automation is a key component, being controlled via Exponent Connect software on various devices, enhancing testing flexibility and sample throughput. Additionally, this analyser’s large testing bed supports sizable samples, providing adaptability for evolving testing needs. Its construction promotes long-term reliability, essential for consistent results in rigorous testing environments.

For food and pharmaceutical applications, the TA.HDplusC ensures compliance with stringent standards, offering a complete package for advanced texture analysis demands.

Benefits

  • Enhances product consistency by delivering precise texture analysis across a wide range of materials.
  • Adapts to evolving testing needs with a versatile testing platform accommodating large samples.
  • Increases operational flexibility with compatibility across multiple device interfaces, including mobile and desktop.
  • Ensures long-term reliability and consistent performance in demanding testing environments.
  • Optimizes test efficiency and accuracy with intelligent loadcells and advanced data acquisition rates.

General


Applications
Hair products,Medical devices,Gels,Bakery,Granules,3d printed foods,Cosmetics,Pharmaceutical packaging,Foods for dysphagia,Fish,Dairy,Food,Polymers,Skincare,Paper and cardboard,Films,Food packaging,Foods containing cbd,Low-in foods,Upcycled food,Electronics,Free-from foods,Personal care,Animal feed,Alternative proteins,Pasta,Innovative materials,Fortified foods,Vertically farmed foods,Dental,Powder,Rice,Foods containing insects,Hair,Petfood,Personal care products,Confectionery,Meat,Leather,Cereals,Adhesives,Pharmaceutical,Vegetables,Medical,Cell cultured foods,Snack products,Textiles,Fruit
End products
Dog biscuits,Spaghetti,Recycled bread,Hair conditioner,Face creams,Hemp-infused beverages,Hydroponic lettuce,Gluten-free muffins,Cricket protein powder,Strawberry slices,Body lotion,Protein bars,Jasmine rice,Chocolate truffles,Detergent powder,Toothpaste tubes,Salmon fillets,Granola bars,Cheese slices,Seaweed wraps,Decorated cakes,Epoxy resin,Sugar-reduced cookies,Vacuum-sealed food bags,Corrugated cardboard,Yogurt,Pureed foods,Vitamin-enriched milk,Canned vegetables,Lab-grown meat pieces,Synthetic leather,Cornflakes,Iv bags,Microchips,Surgical sutures,Cat kibble,Sausages,Fertilizer granules,Potato crisps,Polyethylene bottles,Antimicrobial textiles,Blister packs,Kraft paper,Shampoo,Aspirin tablets,Gelatin sheets,Lipstick
Steps before
Sample Preparation,Load Cell Calibration
Steps after
Data Analysis,Report Generation
Input ingredients
gel,materials,food products,bakery items,cereals,dairy,fruit and vegetables,meat and fish,pasta and rice,snacks,pet food and animal feed,powder and granules,gels and films,adhesives,polymers,pharmaceutical products,cosmetics,skincare products,haircare products
Output ingredients
texture analysis data,volume measurement data,material testing results,physical properties data,stress and strain measurements,powder flow analysis data
Market info
Stable Micro Systems is renowned for its expertise in manufacturing texture analysis equipment, providing precision instruments and solutions for food, cosmetics, pharmaceuticals, and other industries, enhancing product development through detailed, reliable rheological and texture measurement.

Technical Specifications


Force Capacity
750kg.f (7.5kN)
Force Resolution
0.1g
Loadcells
0.5,5,30,50,100,250,500,750kg.f
Speed Range
0.01 – 20mm/s
Maximum Aperture
550mm
Distance Resolution
0.001mm
Data Acquisition Rate
2000pps
Run on Any Device
Touchscreen Interface/PC/Tablet/Mobile
Automation
Exponent Connect software

Operating Characteristics


Force capacity
750kg.f (7.5kN)
Speed range
0.01 – 20mm/s
Automation level
Manual / Touchscreen / Desktop / Mobile
Data acquisition rate
2000pps
Distance resolution
0.001mm

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
N/A
Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Sample size
Variable
Test types
Compression,tension,bending,adhesion

Physical Characteristics


Machine footprint
Twin column frame
Control panel type
Touchscreen Interface
Speed range
0.01 – 20mm/s
Machine height range
550mm maximum aperture
Distance resolution
0.001mm
Force capacity
750kg.f (7.5kN)

Custom Options


Control panel type
Touchscreen Interface
Integration possibilities
PC,Mobile,Tablet
Customization of loadcells
0.5,5,30,50,100,250,500,750kg.f
Automation options
Automated Linear Indexing System
Additional measurement options
Acoustic Envelope Detector,Synchronise Captured Video
Software upgrade
Exponent Connect software
Probes and fixtures
Custom Design Service
Operational interface
Touchscreen,Desktop,Laptop,Mobile
Testing flexibility
High force and precision testing
