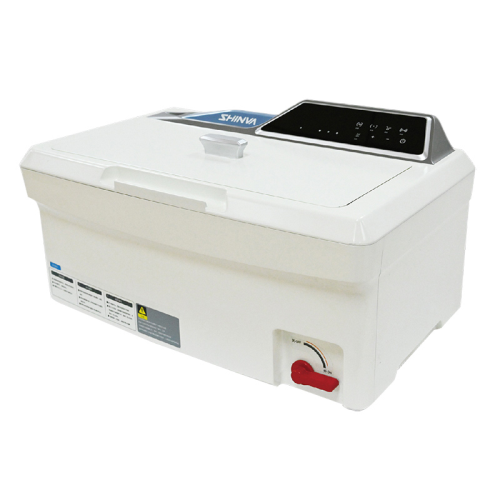

Tabletop ultrasonic washer for surgical instruments
Achieve thorough cleaning and disinfection of surgical tools and precision instruments with ultrasonic cavitation, ensuring even the most intricate crevices are dirt-free. Ideal for precision cleaning where manual methods fall short.
Cleans and Disinfects Medical and Laboratory Instruments
The CS Series Tabletop Ultrasonic Washer from SHINVA is specifically designed for meticulous cleaning and disinfection in the medical and laboratory environments. This unit operates on an ultrasonic cavitation principle, where high-frequency oscillations generate microscopic bubbles that effectively dislodge contaminants from instrument surfaces. Ideal for washing surgical instruments, laboratory glassware, and dental equipment, the washer ensures thorough cleaning even in crevices and hidden areas.
The versatile design includes adjustable washing times and heating temperatures, offering precise control to suit varied cleaning requirements. Its compact tabletop configuration allows for manual operation, fitting seamlessly into diverse settings such as hospitals, dental clinics, and biomedical facilities. Constructed with a robust 304 stainless steel tank, it provides excellent corrosion resistance and durability.
The ultrasonic washer features automatic frequency adjustment between 40/80/100kHz to protect precision instruments, extending their service life. For internal lumen cleaning, its irrigation washing capability can manage diameters from 3-8mm, enhancing efficacy in demanding applications. Safety measures include over-current and overload protections, along with anti-dry safeguards, ensuring reliable operation. The CS Series offers practical integration into existing processes, complemented by ergonomic design for user-friendly operation and space-efficient placement.
Benefits
- Enhances cleaning efficacy with ultrasonic cavitation for comprehensive instrument decontamination.
- Protects delicate instruments with variable frequency, extending their service life.
- Saves operational time with adjustable cleaning cycles tailored to specific requirements.
- Ensures safety with built-in over-current and anti-dry protections.
- Integrates seamlessly into compact spaces with a tabletop design.
- Applications
- Cleaning accessories,Dental equipment,Medical disposables,Laboratory equipment,Ophthalmic instruments,Examination instruments,Surgical instruments
- End products
- Medical tubing,Cleaning brushes,Stethoscope diaphragms,Laboratory glassware,Dental forceps,Surgical scissors,Ophthalmic lenses
- Steps before
- Manual Washing,Pre-rinse,Sorting,Preparation of Detergents
- Steps after
- Sterilization,Drying,Packing,Storage
- Input ingredients
- surgical instruments,utensils,equipment,glasses,detergent,lumen instruments
- Output ingredients
- cleaned surgical instruments,cleaned utensils,cleaned equipment,cleaned glasses,dirt removed from items
- Market info
- Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.
- Ultrasonic Frequency
- 40/80/100 KHZ
- Material
- 304 stainless steel
- Washing Temperature Adjustment
- Yes
- Washing Time Adjustment
- Yes
- Capacity
- Not specified
- Heating Temperature Range
- Adjustable
- Safety Features
- Over-current,overload,anti-dry protection
- Drain Valve Control
- Front knob
- Lumen Docking Interface Diameter
- 3-8 mm
- Working Mechanism
- Ultrasonic cavitation
- Frequency
- 40/80/100 KHZ
- Automation level
- Manual operation with frequency and temperature adjustments
- Heating Temperature
- Adjustable
- Safety Protection
- Over-current,overload,anti-dry protection
- Cleaning Method
- Ultrasonic and irrigation washing
- Adjustment Options
- Ultrasonic washing time,heating temperature
- Cavitation Effect
- Formation of high pressure for cleaning
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- Yes
- Stainless steel compatibility
- 304 stainless steel
- Tank Material
- 304 Stainless Steel
- Tank Shape
- Rectangular
- Operation Panel Location
- Top,Front Angled
- Outer Cover Material
- High-Strength PP
- Top Cover Design
- Injection Molded,Noise Reduction
- Control panel type
- Tilted operation and display panel
- Customizable settings
- Ultrasonic washing time and heating temperature
- Noise Reduction
- Injection molded cover reduces noise transmission
- Tension tank body
- 304 stainless steel,one-time stretching
- Frequency options
- 40/80/100KHZ automatic change
- Embedded installation
- Possible with top door cover hanging structure
