Tablet de-dusting system for pharmaceuticals
Ensure the highest quality of your tablets by effectively removing excess powder and sharp edges before final packaging, enhancing both product safety and consumer experience.
Elevates and De-dusts Tablets Efficiently

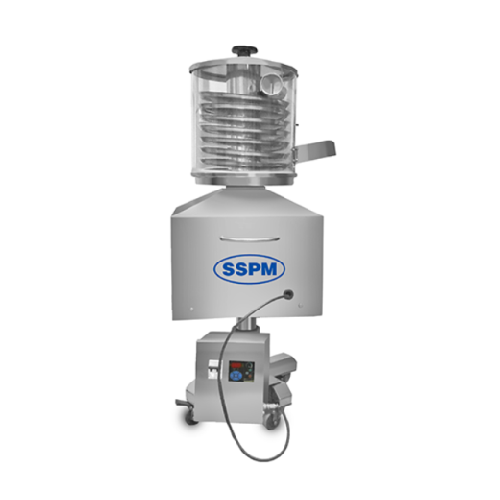

The SigmaDedust from SSPM Systems & Engineers is a versatile tablet deduster tailored for pharmaceutical and nutraceutical manufacturing. It efficiently elevates and de-dusts tablets, ensuring optimal quality and cleanliness. Designed with a variable frequency drive and dual motor mechanism, it can process between 5,000 to 200,000 tablets per hour. This equipment is ideal for solid dosage forms like aspirin and multivitamin tablets, as well as nutraceutical products such as omega-3 soft gels. The system integrates seamlessly into your production line, featuring an elevating path for batch or continuous operation, and it complies with industry standards for pharmaceutical manufacturing. Available in various material options to suit specific operational conditions, the SigmaDedust offers reliable performance and easy maintenance with its compact design and user-friendly control interface.
Benefits
- Enhances product quality by effectively removing dust and burrs.
- Increases production capacity with high throughput rates of up to 200,000 tablets per hour.
- Saves energy with a variable frequency drive for optimal motor performance.
- Minimizes contamination risk through efficient cleaning and maintenance processes.
- Seamlessly integrates into existing production lines with flexible operation modes.
- Applications
- Nutraceuticals,Supplements,Pharmaceutical tablets
- End products
- Omega-3 soft gels,Vitamin d supplements,Calcium chews,Multivitamin tablets,Aspirin tablets
- Steps before
- Granulation,Blending,Material Handling
- Steps after
- Deburring,Packing,Coating
- Input ingredients
- tablets
- Output ingredients
- de-dusted tablets,debured tablets
- Market info
- Tablet Output
- 5,000 to 200,000 Tablet/Hr
- Utility / Electrical
- 0.25 HP / 0.18 KW
- Max Tablet Dia.
- 35 mm
- Min Tablet Dia.
- 5 mm
- Dimension (L x W x H)
- 400 x 400 x 800 mm
- Travelling Path (8 Tray)
- 2.2 Mtr
- Travelling Path (15 Tray)
- 4 Mtr
- Working mechanism
- De-dusting/Deburring
- Automation level
- Dual motor mechanism
- Changeover time
- N/A
- CIP/SIP
- Not specified
- Cleaning method
- Manual/CIP (if available)
- Energy efficiency
- N/A
- Batch vs. continuous operation
- Batch
- Machine footprint (L x W x H)
- 400 x 400 x 800 mm
- Travelling Path 8 Tray
- 2.2 Mtr
- Travelling Path 15 Tray
- 4 Mtr
- Tray Options
- 8 or 15 Tray
