Syrup and beverage preparation system
Enhance your beverage production with a versatile solution that optimizes mixing, hydration, and dissolution processes, reducing energy consumption while maximizing product quality and efficiency.
Mixes and Dissolves Ingredients for Beverage Production

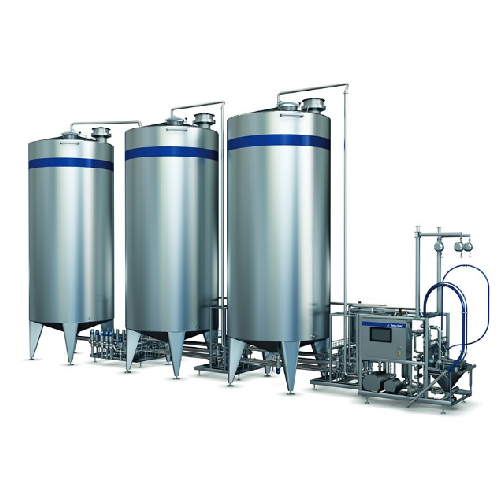

The Tetra Pak® Preparation system B-EXT offers beverage and food processors a versatile solution for efficiently mixing and dissolving ingredients in syrups and various drinks. This scalable system supports both batch and high-speed continuous operations, with throughput ranging from 2,000 to 70,000 litres per hour. Utilizing radial jet mixing technology, it ensures homogeneous product blending without mechanical shear, thus reducing energy consumption and preventing heat generation. Ideal for a wide range of applications, including juices, nectars, soft drinks, and plant-based or dairy beverages, it accommodates diverse ingredient viscosities up to 200 cP. Integrated features like the pre-mix recirculation loop and horizontal injector minimize product waste and enhance mixing precision. The system is flexibly upgradable to meet evolving production demands and is equipped with options like an auto mixing device for challenging ingredients, maintaining efficient operations while lowering energy use by up to 60%.
Benefits
- Enhances operational flexibility with scalable capacity from 2,000 to 70,000 litres per hour.
- Lowers energy consumption and minimizes friction heat through radial jet mixing technology.
- Prevents ingredient clumping and ensures immediate hydration with its horizontal injector.
- Minimizes product waste and lowers operational costs with integrated dust extraction and recovery.
- Adapts easily to evolving production needs with modular design and upgradable components.
- Applications
- Plant-based drinks,Syrups,Still drinks,Nectars,Energy drinks,Juices,Soft drinks,Dairy drinks,Functional drinks
- End products
- Flavored sparkling water,Orange juice,Lemon-lime soda,Apple nectar,Maple syrup,Almond milk,Chocolate milk,Protein-enriched sports drinks,Energy shots
- Steps before
- Ingredient Preparation,Mixer Setup,Raw Material Inspection
- Steps after
- Quality Control,Filling,Packaging,Labeling
- Input ingredients
- Gums,Stabilisers,Thickeners,Powder,Dry ingredients,Liquids
- Output ingredients
- Juices,Nectars,Still drinks,Soft drinks,Energy drinks,Syrups,Plant-based drinks,Functional drinks,Dairy drinks
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Capacity
- 2,000-4,000 L/hr to 70,000 L/hr
- Viscosity handling
- Up to 200 cP
- Automation
- Flexibly upgradable
- Mixing efficiency
- High energy efficiency with radial jet
- Energy consumption reduction
- 60% less than high shear pump
- Batch vs. continuous operation
- Batches of 2,000-4,000 litres/hour to continuous 70,000 litres/hour
- Automation level
- PLC / SCADA
- CIP/SIP
- CIP with no defined temperature
- Energy efficiency
- Minimises energy consumption
- Changeover time
- Designed for quick product changeover
- Cleaning method
- Likely CIP (not explicitly stated)
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- Yes
- Discharge method
- Radial Jet Mixer
- Control panel type
- Automated
- Modular Design
- Flexible and Upgradable
- Scalability
- Batches of 2,000-4,000 L/h to 70,000 L/h
- Auto Mixing Device
- Handles Challenging Ingredients
- Twin-Stage Nozzle
- Homogenous Mixing of Viscous Ingredients
- ERS Dust Extraction and Recovery System
- No Filter Waste or Maintenance
