Submersible chopper pump for manure treatment

Efficiently handle slurry containing lumpy, fibrous solids with cutting-edge technology that shreds, lifts, and mixes materials, ensuring optimal operation even under harsh conditions.

Shreds and Pumps Slurry and Wastewater

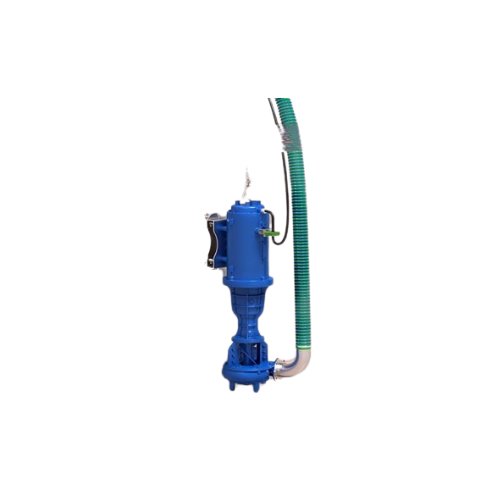

The CHIOR SPB-type Submersible Chopper Pump from WAMGROUP is designed for handling challenging materials in manure treatment, biogas digestate, and industrial wastewater processing. This pump stands out due to its innovative chopping system, which ensures efficient shredding of fibrous solids, preventing clogging and maintaining continuous operation. It features a submersible IE3 electric motor and a compact design, making it versatile for various configurations, either vertical or horizontal. The pump’s high-efficiency motor reduces energy consumption, while the anti-leakage design enhances durability. Common applications include converting waste to fertilizer, treating wastewater, and biogas production. Offered in durable cast iron and equipped with self-adjusting components, the SPB facilitates easy maintenance and long-term reliability, integrating seamlessly into existing systems.

Benefits

  • Enhances slurry processing with energy-efficient operation, reducing operational costs.
  • Prevents system blockages with an innovative chopping system, ensuring continuous flow.
  • Extends operational lifespan through an anti-leakage design, minimizing maintenance needs.
  • Adapts to various installation setups with versatile configuration options.
  • Supports sustainable processing by efficiently handling fibrous and lumpy solids.

General


Applications
Manure treatment,Industrial wastewater,Biogas digestate
End products
Treated wastewater,Biogas,Fertilizer
Steps before
Initial slurry collection,Material loading,Pre-treatment of fibrous solids,Slurry mixing
Steps after
Biogas production,Wastewater treatment,Fertilizer preparation
Input ingredients
slurry,animal husbandry waste,biogas digestate,industrial wastewater,lumpy solids,fibrous solids
Output ingredients
shredded slurry,reduced fibrous components,processed biogas digestate,liquid effluent
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Motor Type
Submersible IE3 electric motor,3-phase,4-pole
Protection Class
IP68
Insulation Class
F
Seal Type
Mechanical silicon carbide seal
Cutting System
Innovative chopping system with multiple cutting points
Blade Material
Hardened material

Operating Characteristics


Working mechanism
Submersible chopper with innovative cutting system
Configuration flexibility
Vertical or horizontal installation
Anti-clogging features
Open suction inlet and fixed knives
Adaptability
Suitable for multiple applications with various accessories
Compact design
Reduced overall dimensions for easy installation
Modularity
Modular chopping unit design for easy maintenance
Suction capability
Helicoid conveyor for enhanced material flow

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Pump installation configurations
Vertical / Horizontal
Mounting kit availability
Vertical pole-mounted / Horizontal pole-mounted / Vertical free-standing / Horizontal free-standing
Pump orientation
Vertical / Horizontal
Suction inlet design
Open suction inlet
Channel impeller blade design
Sharp-profile blades
Material flow promotion
3-blade helicoid conveyor
Fixed knife arrangement
Outer circumference of suction inlet

Custom Options


Mounting configuration
Vertical pole-mounted / Horizontal pole-mounted / Vertical free-standing / Horizontal free-standing
Installation type
Vertical / Horizontal
Material of manufacture
Cast iron body
Cable protection
Rubber-sheathed cable with stainless-steel cable gland
Chopping system design
Modular chopping unit / Self-adjusting chopping system
Suction inlet design
Open suction inlet / Fixed knives on circumference
