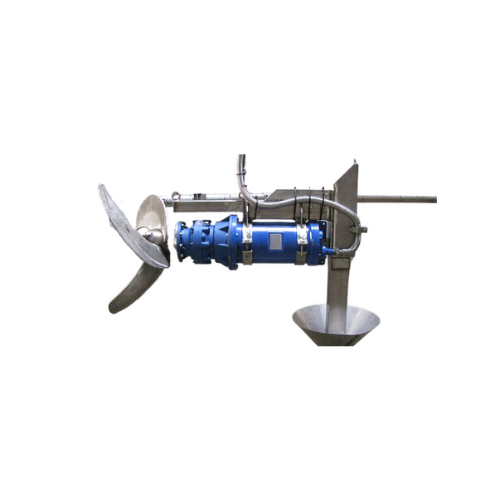

Submersible agitators for manure and wastewater treatment

Optimize mixing efficiency in manure and wastewater treatment with our submersible agitators, designed for high-performance agitating and seamless integration into continuous operations, ensuring robust and effective processing of challenging slurries and liquids.

Mixes and Agitates Slurries for Efficient Treatment

The CHIOR SE Submersible Agitators from WAMGROUP offer a robust solution for intensive mixing and agitation in manure and wastewater treatment applications. Featuring an innovative propeller design, these agitators efficiently manage pig and cattle manure, digestate, and industrial effluents, aiding in the production of biogas, organic fertilizer, and treated wastewater. Constructed with a cast iron housing, the equipment is designed for durability, with motor outputs ranging from 11.0 to 22.0 kW and operational speeds up to 350 rpm. The modular design allows for easy maintenance and adaptation to specific processing needs, and the adjustable support frame ensures compatibility with various pole sizes. Energy efficiency is enhanced by a thermal probe that prevents motor overheating, and the entire setup is optimized for minimal power consumption through fluidic design. Ideal for continuous high-speed operation, the CHIOR SE is a versatile choice for municipal and industrial wastewater treatment, biogas plant operation, and livestock farm management.

Benefits

  • Minimizes energy use with fluidically optimized design and high motor reserves.
  • Adapts easily to varied processing needs with modular configuration and adjustable support frame.
  • Streamlines maintenance with straightforward design and quick disconnect features.
  • Enhances mixing efficiency through innovative propeller shape and customizable speed settings.
  • Improves operational safety with double sealing and thermal protection to prevent overheating.

General


Applications
Digestate,Cattle manure,Pig manure,Industrial effluents,Municipal wastewater treatment
End products
Treated wastewater,Treated industrial effluents,Organic fertilizer,Biogas
Steps before
Collection of manure,Wastewater inflow,Anaerobic digestion
Steps after
Effluent treatment,Sludge handling,Discharge into processing units
Input ingredients
pig manure,cattle manure,digestate from anaerobic digesters,municipal wastewater,industrial wastewater
Output ingredients
mixed manure,treated digestate,treated effluents
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Drive power installed
11.0 / 15.0 / 18.5 / 22.0 kW
Speeds installed
140 / 280 / 350 rpm
Propeller type
High-efficiency engineered stainless-steel 3-flight propeller
Adjustable frame sizes
100x100 to 120x120 mm
Sealing system
Double sealing system
Motor reserve
High motor reserves for reduced energy consumption
Thermal protection
Thermal probe to prevent overheating

Operating Characteristics


Propeller speed
140 / 280 / 350 rpm
Drive power range
11.0 / 15.0 / 18.5 / 22.0 kW
Adjustable support frame
100x100 to 120x120 mm
Sealing system
Double sealing system
Thermal probe integration
Prevents motor overheating
Maintenance ease
Modular design for quick maintenance
Application versatility
Municipal and industrial use
Energy efficiency
Low power consumption

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Yes
Cleanability
Yes
Density/particle size
0.5–2.5 g/cm³ / Variable

Physical Characteristics


Discharge method
Submersible
Propeller shape
3-flight stainless-steel
Adjustable support frame
100x100 to 120x120 mm
Material
Cast iron housing

Custom Options


Propeller shape
Modern,innovative
Propeller diameter
Individually selected
Motor output
Selectable
Gear units
Custom combinations available
Support frame adjustment
100x100 or 120x120 mm poles
Cable guides
With and without cable protection conduit
