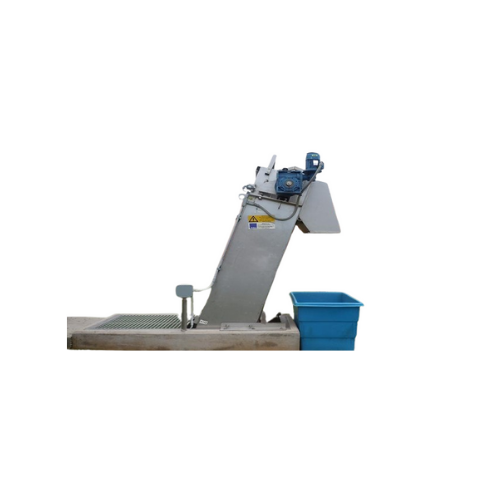

Sub-vertical mechanical perforated screens for wastewater treatment
Optimize your wastewater treatment process with advanced fine screening technology that efficiently captures solids and reduces maintenance downtime, ensuring smooth operations even in challenging environments.

Screens and Filters Waste Water Efficiently
The GVS Sub-vertical Mechanical Perforated Screens, offered by WAMGROUP, are engineered for precise waste water screening across municipal and industrial facilities. Designed with a robust steel frame and perforated plate filters, these screens excel in capturing fine particulates through a chain-driven mechanism equipped with brushes and wipers. Ideal for applications in municipal waste water treatment plants, industrial waste water processing, and beverage industry waste management, they effectively handle water purification and sludge treatment, producing outcomes like treated municipal water and dewatered industrial sludge. With capabilities to process channel widths from 400 to 2,000 mm, the equipment maintains continuous automated operations powered by a motor with optional voltage and frequency settings. Constructed from materials such as hot dip galvanized steel and stainless steel (304L/316L), the screens offer durability and corrosion resistance. The unique design minimizes service needs, supporting easy component replacement and eliminating the requirement for a lower sprocket or bearings, which reduces maintenance interventions. Integrating seamlessly into your existing system, it offers adjustable angles up to 90 degrees, optimizing space and ensuring efficient installation and operation.
Benefits
- Minimizes maintenance with easy-to-replace components and no lower sprocket.
- Enhances water purification across diverse applications, ensuring regulatory compliance.
- Versatile installation options with angles up to 90 degrees optimize facility layout.
- Durable steel and stainless steel construction provide long-lasting performance and corrosion resistance.
- Facilitates continuous, automated operation, improving overall processing efficiency.
- Applications
- Manure treatment,Industrial waste water,Sludge treatment,Clean water treatment,Paper processing,Tanneries,Vegetable processing waste water,Starch processing,Process water,Municipal waste water,Catering waste water,Animal by-products handling,Beverage industry waste water,Solid waste handling,Incinerators,Pulp processing,Plastics recycling industry waste water,Dyeing works,Food processing waste water,By-products processing,Livestock breeding,Fruit processing waste water
- End products
- Cleaned fruit processing effluent,Incineration ash waste,Recycled paper pulp,Clarified beverage production water,Dewatered industrial sludge,Purified catering wastewater,Drinkable water,Recycled process water,Tanned leather waste by-products,Recycled pulp slurry,Treated municipal water,Refined starch paste,Segregated solid waste,Treated industrial effluent,Dyed textile effluent,Fertilizer-grade sludge,Recyclable plastic wash water,Processed manure liquids,Treated vegetable washing water,Filtered food processing water,Rendered animal by-products,Processed by-product effluent
- Steps before
- Wastewater collection,Screening coarse debris,Primary filtration
- Steps after
- Sludge treatment,Clarification,Disinfection,Secondary treatment,Dewatering
- Input ingredients
- municipal waste water,industrial waste water,sewage,process water,beverage industry waste water,food processing waste water,catering waste water,fruit processing waste water,vegetable processing waste water,pulp processing water,paper processing water,starch processing water,dyeing works water,tanneries waste water,plastics recycling waste water,livestock breeding waste water,manure
- Output ingredients
- screened solids,conveyed solids,discharged solids,cleaned water
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Screen Perforation
- 3mm ~ 6mm
- Screen Height
- Determined by installation
- Channel Width
- 400 ~ 2,000 mm
- Incline Angle
- 75 degrees
- Brushes and Wiper Blades
- 4 or more,dependent on screen height
- Material
- Hot dip galvanised steel
- 304 L / 316 L SS
- Control Panel
- Alternative options available
- Motor Protection
- Alternative degree available
- Incline Angle Options
- Up to 90 degrees with goose neck
- Sprocket and Bearing
- No lower sprocket,no bearings
- Installation depth suitability
- Very deep channels
- Maintenance requirements
- Low maintenance costs
- Cleaning mechanism
- Chain-driven brushes and wiper blades
- Automation level
- Chain-driven
- Alternative angle options
- Up to 90 degrees with goose neck
- Screening efficiency
- Variable
- Replacement design
- Easy replacement
- Service requirements
- Reduced,no need to remove screen from channel
- Material compatibility
- Hot dip galvanised steel
- 304 L / 316 L SS
- Screen height
- Various sizes available
- Discharge method
- Conveyor or compactor
- Screen type
- Alternative screen types and sizes
- Material
- Hot dip galvanised steel
- 304 L / 316 L SS
- Incline angle
- Other than 75 degrees up to 90 degrees with goose neck
- Voltage and frequency
- Alternative voltage and frequency
- Motor protection
- Alternative degree of motor protection
- Control panel
- Control panel options
