Storage bunker for potatoes and onions

Optimize storage and feeding efficiency for potatoes, onions, and carrots, while ensuring seamless integration into your production line with additional buffering and separation capabilities.

Stores and Feeds Agricultural Products

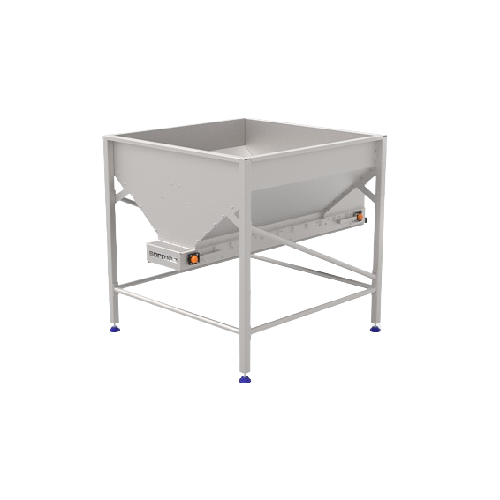

The Storage Bunker VBK series from Sormac is tailored for efficient agricultural processes, expertly designed to store and feed various products such as potatoes, onions, and carrots. With options like the VBK-2020(H) and VBK-2025(H), the system accommodates unique production needs with two available sizes—2 x 2 meters and 2 x 2.5 meters. These storage bunkers can be fitted with a raised edge to increase capacity and deliver seamless connectivity within processing lines as inline buffers. Optional features such as a level sensor allow for automatic line infeed control, while the sand trap option aids in separating unwanted materials. The versatility of these bunkers lies in their capacity to handle different input methods, including forklift truck filling and box tipper systems. Perfect for agricultural processors, food companies, and vegetable handling facilities, these units integrate into pre-processing and processing departments, providing continuous and reliable product handling.

Benefits

  • Enhances production efficiency with seamless inline buffering and feeding.
  • Increases storage capacity with configurable raised edges for high-volume operations.
  • Automates product flow management with optional level sensor integration.
  • Minimizes contamination and product loss with optional sand trap.
  • Offers flexibility in product handling through various filling methods.

General


Applications
Carrots,Onions,Potatoes
End products
Onion powder,Instant mashed potatoes,Canned carrots,Potato chips,Diced onions,Carrot sticks,Onion rings,Dehydrated onion flakes,Carrot puree,French fries
Steps before
Harvesting,Sorting,Cleaning,Pre-processing
Steps after
Packaging,Distribution,Further Processing,Quality Inspection
Input ingredients
potatoes,onions,carrots
Output ingredients
stored products,buffered products
Market info
Sormac is known for its expertise in manufacturing high-quality vegetable processing equipment, particularly peeling, washing, and slicing machines, with a strong reputation for innovation, reliability, and customer-focused solutions in the food processing industry.

Technical Specifications


Size
2 x 2 metres (VBK-2020),2 x 2.5 metres (VBK-2025)
Capacity
Variable based on design with or without raised edge
Automation
Level sensor controlled infeed
Material Handling
Fork-lift truck or box tipper system
Optional Features
Level sensor,sand trap
Inline Functionality
Acts as an inline buffer

Operating Characteristics


Batch vs. continuous operation
Inline Continuous
Automation level
Manual / PLC controlled
Feeding method
Fork-lift truck / Box tipper
Product handling
Buffer / Storage / Feeding
Level control
Optional Level Sensor
Inline buffering
Yes
Sand separation
Optional Sand Trap

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2 x 2 metres (VBK-2020)
Machine footprint
2 x 2.5 metres (VBK-2025)
Bunker size
Optional raised edge (H)
Feed/Discharge method
Filled via fork-lift truck or box tipper system
Level sensor
Optional
Sand trap
Optional

Custom Options


Level sensor
Optional
Sand trap
Optional
Raised edge
Available
