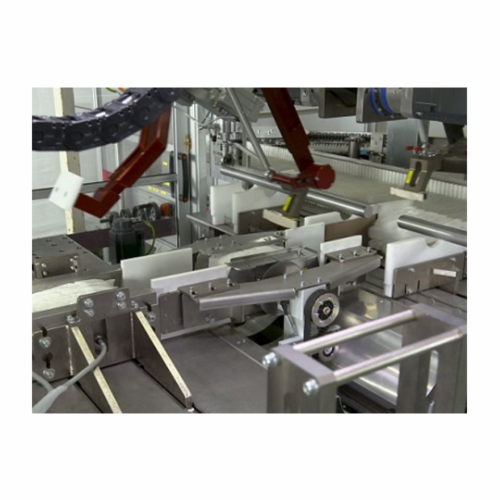

Stacking and bagging system for baby diapers

Optimize your production line with this high-speed solution designed for seamless stacking and bagging of baby disposable diapers and pants, ensuring efficient packaging without compromising on speed or precision.

Stacks and Bags Baby Diapers Efficiently

The SB50 Red Series B8 from GDM is a robust solution designed to streamline the stacking and bagging of baby diapers in high-volume production environments. Operating continuously with a maximum efficiency of 95%, it integrates seamlessly into production lines with an input speed of up to 800 products per minute and outputs up to 50 bags per minute. This machine addresses the pressing need for efficient packaging in the hygiene sector, handling a variety of products from baby disposable diapers to pull-up pants. Equipped with features allowing for quick product and size changeovers, it minimizes downtime, thereby maximizing productivity. Its polyethylene film packaging operates within regulated norms, supported by an EC Declaration of Conformity Type II1A 2006/42/EC, ensuring compliance with industry standards. The SB50 Red Series B8’s design is centered on energy efficiency and waste reduction, producing only 1% maximum waste. With its modular setup, this equipment allows integration with other lines, such as the BP8-CD RED for baby pants, offering flexibility and scalability to hygiene product manufacturers.

Benefits

  • Enhances production speed with continuous operation at up to 800 products per minute.
  • Minimizes waste to a maximum of 1%, optimizing material use and reducing costs.
  • Quick changeovers in just 30 minutes boost operational efficiency and flexibility.
  • Ensures compliance with industry standards, providing peace of mind in regulated environments.
  • Integrates seamlessly with existing production lines, facilitating scalable operations.

General


Applications
Baby pants,Disposable hygiene products,Baby diapers
End products
Baby training pants,Baby disposable diapers,Pull-up pants,Toddler diapers,Newborn diapers
Steps before
Converting,Making,Forming
Steps after
Cartoning,EOL,Packing
Input ingredients
baby disposable diapers,diaper pants,800 ppm,385 m/min,polyethylene film
Output ingredients
50 bags/min,bags,packaged diapers
Market info
GDM (Coesia Group) is known for its expertise in manufacturing high-performance machinery for the disposable hygiene industry, offering tailored solutions and innovative technologies for production efficiency and product quality.

Technical Specifications


Machine depth
4590 mm
Machine height
2570 mm
Machine length
6830 mm
Machine weight
10000 kg
Max efficiency
95%
Operating mode
Continuous
Product changeover time
30 min
Size changeover time
10 min
Max waste
1%
Production speed (Input)
800 ppm (385 m/min)
Production speed (Output)
50 bags/min
Number of products per row (¾ chain pitch)
8–60 (up to 15 mm product thickness)
Number of products per row (1 chain pitch)
7–50 (up to 20 mm product thickness)
Packaging material
Polyethylene film
Packaging type
Bag
Max product length
280 mm
Min product length
160 mm
Max product width
140 mm
Min product width
90 mm

Operating Characteristics


Operating mode
Continuous
Efficiency
Max 95%
Product changeover time
30 min
Size changeover time
10 min
Batch vs. continuous operation
Continuous

Material Compatibility


Compatibility with polyethylene film
Yes


CE marking
EC Declaration of Conformity (Type II1A 2006/42/EC)

Physical Characteristics


Machine depth
4590 mm
Machine height
2570 mm
Machine length
6830 mm
Machine weight
10000 kg

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
Modular design for line integration
Size changeover time
10 min
Product changeover time
30 min
