Stabilizer dissolving systems for beverage production

Efficiently dissolve and disperse stabilizers in complex beverage formulations to ensure optimal texture, flavor release, and shelf stability, achieving a seamless integration into your production line.

Dissolves, Mixes, and Emulsifies Stabilizers Efficiently

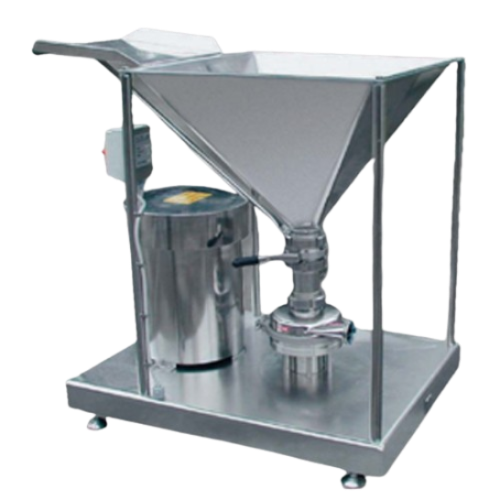

A Due S.p.A.’s EASY.Mix system offers an innovative solution for beverage manufacturers needing efficient incorporation of stabilizers like pectins and gums. Utilizing turbo emulsifiers, tri-blenders, and high shear mixers, it provides flexible options for dissolving and emulsifying stabilizers based on viscosity and concentration requirements. Ideal for juice, dairy, and plant-based products, it produces uniform mixtures crucial for flavor and texture consistency. Operating in high-speed, continuous mode, EASY.Mix integrates seamlessly into production lines, featuring automation and optional heat exchangers for enhanced process control. Designed with robust materials suitable for the food and beverage industries, this equipment is built for reliability and ease of maintenance, with CIP capabilities for streamlined cleaning.

Benefits

  • Enhances product consistency with precise stabilizer dispersion and hydration.
  • Supports diverse formulations by accommodating various powder and liquid viscosities.
  • Increases operational efficiency with high-speed, continuous processing.
  • Reduces labor costs through automated, PLC-controlled operation.
  • Facilitates easy maintenance with an integrated CIP system for effective cleaning.

General


Applications
Plant-based beverages,Juice production,Non-alcoholic beer,Non-carbonated beverages,Hard seltzers,Fantasy drinks,Carbonated soft drinks,Milk-based products,Flavored water
End products
Lager style non-alcoholic beer,Alcohol-free ginger ale,Orange juice,Almond milk,Lemon iced tea,Tropical fruit punch,Cola,Chocolate milk,Sparkling water with lemon flavor
Steps before
Water Filtration,Water Reverse Osmosis,Water Disinfection,Water Remineralization
Steps after
Beverage Preparation,Beverage Deaeration,Carbonation,Mixing,Thermal Treatment
Input ingredients
pectin,guar gum,xanthan gum,carboxymethylcellulose,stabilizers,powders
Output ingredients
homogeneous mixture,hydrated stabilizers,smooth texture solution,low concentration solution,medium concentration solution,high concentration solution
Market info
A Due is known for designing and manufacturing beverage processing equipment, specializing in water treatment, syrup preparation, and complete automation solutions for the beverage industry, with a strong reputation for innovation and quality engineering.

Technical Specifications


Ingredient transfer method
Suction with loading hopper
Stirrer type
Fast propeller / Special geometry emulsifying
Vessel capacity
1000 liters
Temperature for pectin solutions
Up to 50°C
Temperature for CMC solutions
Up to 20°C
Temperature for xanthan gum solutions
Up to 20°C
Temperature for guar gum solutions
Up to 20°C
Concentration limit for pectins
0.5% to 6.0% depending on system
Concentration limit for CMC
0.2% to 4.0% depending on system
Concentration limit for xanthan gum
0.5% to 3.0% depending on system
Concentration limit for guar gum
0.5% to 3.0% depending on system
Self-priming pump
For ingredient transfer
Vacuum disperser
Homogeneous mixture with smooth texture
Recirculation feature
Powders fully incorporated with limited water

Operating Characteristics


Dissolution system
Turbo emulsifiers / Triblenders / Hydrodynamic hoppers
Powder transfer method
Suction / Vacuum disperser
Mixing capability
High shear mixing
Batch vs. continuous operation
Batch
Concentration range
Low,Medium,High
Homogeneity assurance
Special mesh filter
Temperature control
Optional heat exchanger
Automation level
Manual / PLC

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank shape
Cylindrical
Tank size
1000 liters
Feed method
Suction through loading hopper
Discharge method
Pump transfer

Custom Options


Control System Type
PLC with HMI
Integration Possibilities
SCADA Integration
Discharge Method
Self-priming pump
