Spiral washer for cut vegetables

Optimize washing efficiency for cut and leafy vegetables, both floating and sinking, with adjustable water flow control and integrated recirculation.

Washes and Rinses Cut Vegetables Efficiently

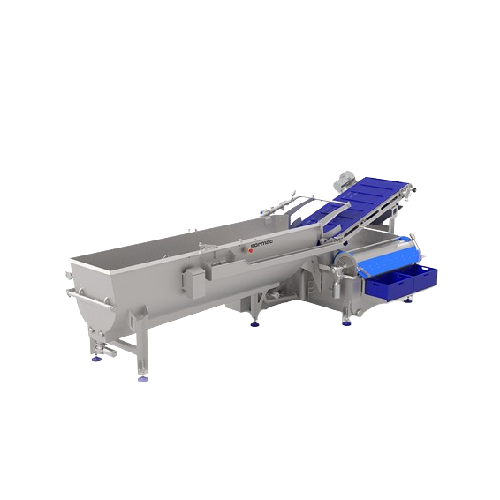

The Spiral Washer SW-80 from Sormac is designed for efficient washing and rinsing of both floating and sinking cut vegetables. Featuring a spiral motion, this washer ensures thorough and gentle cleaning, preserving the quality of delicate produce like leafy greens and chopped vegetables. With a processing capacity of up to 3,000 kg per hour, it caters to large-scale food processors and vegetable processing companies. The SW-80 employs a sophisticated recirculation system, where water is both reused and refreshed via adjustable valves for optimal washing performance. Integrating seamlessly into production lines, it offers options like a UV-C unit for bacterial control and a cooling coil for temperature management. Constructed from durable stainless steel and plastic, it stands resilient against corrosion and wear. The manual control panel allows precise adjustments, enhancing operational efficiency without sacrificing product quality. Options such as an outfeed belt and flycatcher allow for further customization to suit specific production needs.

Benefits

  • Increases processing efficiency with up to 3,000 kg per hour capacity.
  • Enhances product hygiene via UV-C water treatment option.
  • Reduces water usage with recirculation and adjustable flow controls.
  • Minimizes labor input through integrated automation and touch panel controls.
  • Preserves product quality with gentle spiral washing for delicate vegetables.

General


Applications
Sinking vegetables,Floating vegetables,Leafy greens,Cut vegetables,Root vegetables
End products
Chopped kale,Spinach leaves,Mixed salad greens,Diced potatoes,Broccoli florets,Baby spinach,Shredded cabbage,Shredded lettuce,Sliced cucumbers,Chopped carrots
Steps before
Cutting,Preparation
Steps after
Rinsing,Drying,Dewatering,Centrifugation,Conveying
Input ingredients
cut vegetables,floating vegetables,sinking vegetables
Output ingredients
washed vegetables,rinsed vegetables
Market info
Sormac is known for its expertise in manufacturing high-quality vegetable processing equipment, particularly peeling, washing, and slicing machines, with a strong reputation for innovation, reliability, and customer-focused solutions in the food processing industry.

Technical Specifications


Capacity
Up to 3,000 kg per hour
Automation
Touch panel control
Material Construction
Stainless steel and plastic
Water Regulation
Manually adjustable valves and nozzles
Dwell Time
Adjustable
Water Circulation
Pump recirculated
Product Type
Cut vegetables
Temperature Display
Yes (on touch panel)

Operating Characteristics


Operating mechanism
Spiral washing with vibration chute
Adjustability
Manually adjustable valves and nozzles
Automation level
Touch panel control
Water recirculation
Pump recirculates water
Batch vs. continuous operation
Continuous

Material Compatibility


Stainless Steel Construction
Yes
Plastic Components
Yes
Cleanability
Yes

Product type Characteristics


Vegetable type
Cut vegetables,floating/sinking

Physical Characteristics


Material
Stainless steel and plastic
Design
Spiral basin
Feed method
Vibration chute
Discharge method
Vibration chute/Optional outfeed belt
Capacity
Up to 3,000 kg/h
Adjustability
Manually adjustable valves and nozzles
Control panel
Touch panel

Custom Options


Control panel type
Touch panel
Swirling action control
Manually adjustable valves
Water agitation level
Adjustable fan
Outfeed method
Vibration chute / Outfeed belt
Particle removal
Flycatcher / Rotary sieve
Cooling option
Cooling coil in pump tank
Water treatment
UV-C-unit for bacterial destruction
Additive dosing
Dosing unit for additives
Basket handling
Carousel or Platform for centrifuge baskets
