Spiral conveyor for repeating size cases
Optimize your line’s efficiency by elevating rigid items at higher inclines, with enhanced stability and reduced investment, thanks to a unique belt design that offers superior grip.
Elevates and Conveys Rigid Items Efficiently

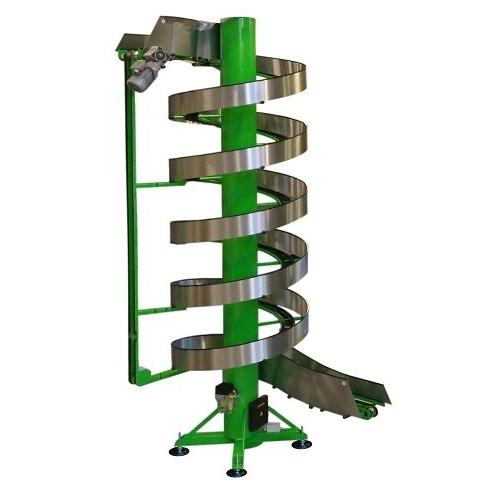

The SpiralVeyor SVo-Series from AmbaFlex is a specialized conveyor designed to seamlessly integrate into logistics and packaging production lines, addressing the need for efficient elevation of rigid items like totes and cardboard boxes. Utilizing the AmbaFlex single track technology with a patented scorpion back style belt, this spiral conveyor enhances stability and allows higher inclination angles for items larger than the belt itself. With chain widths ranging from 100 mm (4 inches) and nominal clear product widths up to 600 mm (24 inches), it operates at speeds up to 60 m/min (200 fpm), capable of handling loads up to 35 kg/m (23.5 lb/ft) with virtually unlimited elevation. The robust construction supports continuous, high-speed operations, offering material options suitable for varying use cases like dry use and wash down applications. Ideal for logistics, packaging, bottling, and print industries, it streamlines the transport and packaging departments while ensuring seamless integration into existing production environments.
Benefits
- Optimizes vertical space usage, accommodating high-density storage requirements.
- Increases operational efficiency by handling items larger than the belt width at higher inclines.
- Minimizes maintenance with a robust design for continuous high-speed use.
- Enhances stability and grip, improving safety in transport of rigid items.
- Supports diverse environments with options for dry use and wash down applications.
- Applications
- Packaging,Print,Bottling,Logistics
- End products
- Printed materials,Beverage bottles,Plastic containers,Totes,Cardboard boxes
- Steps before
- Product Sorting,Batch Assembly
- Steps after
- Packing,Distribution
- Input ingredients
- totes,plastic containers,rigid items
- Output ingredients
- elevated totes,elevated plastic containers,elevated rigid items
- Market info
- AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.
- Chain width range
- 100 mm | 4"
- Nominal clear product width
- 300,400,600 mm | 12,16,24"
- Load range
- up to 35 kg/m | 23.5 lb/ft
- Speed range
- up to 60 m/min | 200 fpm
- Elevation
- virtually unlimited,commonly per drive system 15 m | 50 ft
- Belt length
- up to per drive system 60 m | 200 ft
- Elevation Capability
- Virtually unlimited,commonly per drive system 15 m | 50 ft
- Load Capacity
- Up to 35 kg/m | 23.5 lb/ft
- Speed Range
- Up to 60 m/min | 200 fpm
- Item Handling
- Handles rigid items with the same form factor
- Automation Level
- Potentially PLC/SCADA (not specified on page)
- Belt Design
- Scorpion back style shape for increased grip
- Footprint
- SVo 300-1000
- Footprint
- SVo 600-1100
- Changeover Type
- PreDefined Configurations available
- Cleaning Method
- Dry use / Wipe down / Wash down
- Cleanability
- Wipe down,Wash down
- Corrosive resistance
- Wash down economic (CR),Wash down total (RS)
- Abrasion resistance
- Scorpion back style shape for enhanced grip
- Machine footprint
- SVo 300-1000
- Machine footprint
- SVo 400-900
- Machine footprint
- SVo 600-1100
- Chain width range
- 100 mm / 4"
- Nominal clear product width
- 300,400,600 mm / 12,16,24"
- Load range
- up to 35 kg/m / 23.5 lb/ft
- Speed range
- up to 60 m/min / 200 fpm
- Elevation
- Virtually unlimited,commonly per drive system 15 m / 50 ft
- Belt length
- up to per drive system 60 m / 200 ft
- Material use type
- Dry,Wipe down (R),Wash down economic (CR),Wash down total (RS)
- SpiralVeyor model
- SVo 300-1000,SVo 400-900,SVo 600-1100
- Belt width
- 100 mm | 4"
- Product width
- 300,400,600 mm | 12,16,24"
- Belt design
- Scorpion back style shape
- Elevation height
- Virtually unlimited,per drive system up to 15 m | 50 ft
- Belt length
- Up to per drive system 60 m | 200 ft
