Solventless trichome separation for bubble hash production

Achieve high-quality, solventless extracts with superior trichome separation, ensuring clean, terpene-rich bubble hash without unwanted plant particulates, enhancing your processing capabilities efficiently.

Separates Trichomes for Solventless Hash Production

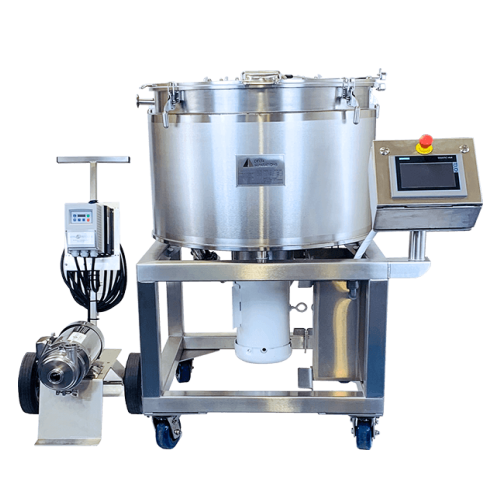

The Vortex Trichome Separator VTS-50 from Delta Separations is a specialized solventless separation system designed for cannabis and hemp processors. Utilizing cold-water mechanical separation, this machine efficiently extracts cannabinoid and terpene-rich trichomes from plant biomass, producing high-quality, solvent-free concentrates like ice water and bubble hash. The VTS-50 features a 50-gallon capacity jacketed vessel with bi-directional agitation, and its crossflow vortex agitation minimizes plant-particulate contamination while maximizing trichome separation. Capable of producing 13-15 kilos of dry hash daily, it can operate manually or through programmable auto operations, and supports precise vortex speed control for gentle processing. Constructed with sanitary food-grade stainless steel and a viewing window, the VTS-50 ensures easy cleaning and maintenance, and integrates seamlessly into solventless extraction workflows. Equipped with UL-certified wash-down electronics, it offers reliable operation while complying with safety standards. Additionally, the system’s design facilitates energy efficiency by reducing ice usage when connected to a glycol chiller, enhancing its operational sustainability.

Benefits

  • Produces high-quality, solventless hash meeting consumer demand for natural concentrates.
  • Minimizes contamination through controlled agitation, ensuring cleaner end-products.
  • Enhances operational efficiency with programmable auto operations and easy maintenance.
  • Reduces energy consumption with optimized ice usage and chiller compatibility.
  • Maintains product integrity with gentle trichome separation and minimal biomass damage.

General


Applications
Terpenes, Solventless extracts, Cannabis, Bubble hash, Cannabinoids, Ice water hash
End products
High-quality hash end-products, Trichome-rich extracts, Solventless concentrates
Steps before
Chilling, Cutting, Trichome Collection
Steps after
Filtering, Drying, Trichome Collection
Input ingredients
biomass, cannabis plant, water, ice
Output ingredients
cannabinoid-rich trichomes, terpene-rich trichomes, ice water hash, bubble hash, solventless hash
Market info
Delta Separations is known for its expertise in manufacturing extraction and distillation equipment for the cannabis and hemp industries, providing high-quality engineered equipment that meets industry standards and regulations for efficient processing.

Technical Specifications


Vessel Capacity
50 Gallons (190 liters)
Water Inlet Port
1.5" Tri-clamp
Bottom Drain Port
2" TC
Agitation
Bi-directional
Construction Material
Sanitary stainless food-grade
Viewing Window Material
Food-grade polycarbonate
Agitation Speed Range
200-800 RPM
Dry Weight Capacity
13-15 lbs
Fresh-frozen Weight Capacity
28-32 lbs
Operation
Manual or Auto
Chiller Connections
For low-temp operation

Operating Characteristics


Working mechanism
Counter-Current Vortex Flow
Cleaning method
Easy to clean, CIP possible
Batch vs. continuous operation
Batch
Automation level
Manual / Auto operation
Energy efficiency
Efficient with low resource consumption

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Vessel Capacity
50 Gallons (190 liters)
Material
Sanitary stainless food-grade
Viewing Window
Food-grade polycarbonate
Basin Shape
Rounded and curved product-touching surfaces
Drain Port
2″ TC Bottom drain port
Water Inlet Port
1.5″ Tri-clamp
Jacketed Vessel
Yes
