Small batch cooking and blanching system for food industry

Optimize your food production line with a versatile cooking and blanching system designed to enhance efficiency and ensure food safety, ideal for producing ready-to-eat meals and perfectly cooked ingredients.

Immersion Cooks and Blanches Food Products

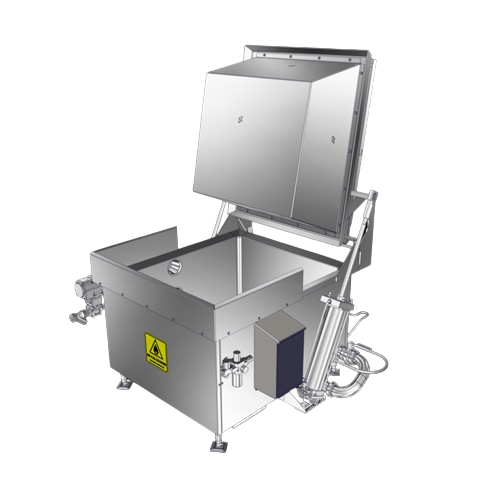

The Chaudix™ system from Armor Inox is tailored for central kitchens and food processors needing efficient and precise small batch cooking and blanching solutions. This immersion cooking unit features water immersion technology with pneumatic unloading, ensuring even cooking and safety. Compatible with loading systems using European 200 L trolleys, it supports a range of applications including sous vide chicken, beef, and ready-to-eat meals. With a 600L model supporting up to 200kg loads, its ergonomically designed, insulated tank ensures temperature and level regulation, minimizing energy use. Optional customization and engineering support facilitate integration into various production lines and meet specific needs, enhancing operational efficiency while maintaining high food safety standards.

Benefits

  • Enhances production efficiency with ergonomic design and easy operation.
  • Ensures consistent food safety with precise temperature and level control.
  • Reduces operational costs through pneumatic unloading and load efficiency.
  • Adaptable for various production scales with customizable features.
  • Improves integration into existing production lines with engineering support.

General


Applications
Ready meals,Sous vide,Delis,Food processing,Hams,Food service,Hot dogs,Central kitchens
End products
Cooked sausages,Pre-cooked pasta,Pre-sliced ham,Ham and cheese sandwiches,Ready-to-eat stews,Blanched vegetables,Sous vide beef tenderloin,Meatloaf,Blanched seafood,Cooked deli turkey breast,Ready-to-eat meals packs,Hot dog sausages,Sous vide chicken breast
Steps before
Raw Preparation,Loading
Steps after
Unloading,Cooling,Chilling,Packing
Input ingredients
small batch food,central kitchen ingredients,food service items,food processing products
Output ingredients
cooked food,blanched food,sous vide products,ready meals
Market info
Armorinox (Middleby) is known for manufacturing custom-engineered stainless steel solutions for industrial applications, particularly in the food processing and commercial kitchen equipment sectors, focusing on quality, durability, and innovation.

Technical Specifications


Load capacity
200 kg
Model
600L
Length
1500 mm
Width
1600 mm
Height
1150 mm
Total weight
400 kg
Water temperature regulation
Yes
Water level regulation
Yes
Insulated tank
Steam proof lid
Customization
Available
Pneumatic unloading system
Yes

Operating Characteristics


Working mechanism
Immersion cooking
Integrated steps
Cooking and blanching
Batch vs. continuous operation
Batch
Automation level
Pneumatic unloading
Cleaning method
Manual/CIP potential
Ergonomics
User-friendly design
Load handling
Balix system for 200 L trolley
Safety features
Insulated steam-proof lid
Temperature control
Water temperature regulation
Level control
Water level regulation

Material Compatibility


Biological compatibility
Food safe materials
Corrosive resistance (e.g. acids)
Stainless steel components

Product type Characteristics


Batch cooking
Small batches

Physical Characteristics


Machine footprint
1500mm x 1600mm x 11500mm
Load capacity
200 kg
Tank shape and size
600L
Total weight
400 kg
Discharge method
Pneumatic unloading system

Custom Options


Unloading System
Pneumatic
Loading System
Balix™ system with 200 L trolley compatibility
Customization Availability
Available through innovative engineering team
