Sliding radiation shield for benches

Enhance safety in laboratory and production environments with a robust bench-top sliding radiation shield, designed to protect operators during manual tasks involving hazardous materials.

Provides Lead Shielding for Bench-top Safety

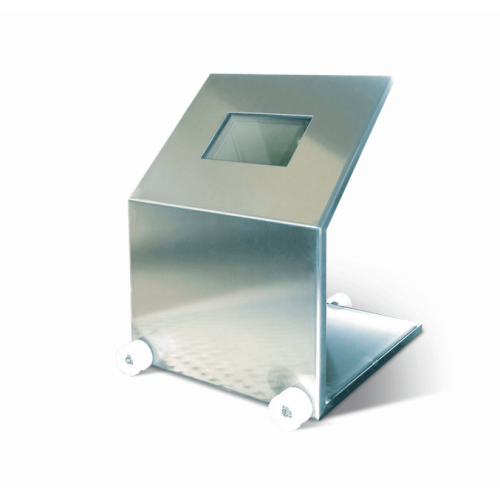

The BMI SERIES from Comecer offers sliding shielding protections engineered for bench-top applications in highly regulated environments such as pharmaceuticals, nuclear medicine, and hospital pharmacies. Constructed from INOX AISI 304 stainless steel, these devices feature lead shielding up to 50mm, providing essential protection against radiation exposure. The BMI Series includes three models—BMI-10, BMI-30, and BMI-50—differing in their shielding capacities and weights, optimized to meet specific safety requirements effectively.

Integrating seamlessly into laboratory workflows, these shields are manually operated and designed to enhance safety protocols without disrupting productivity. With its robust build and precision engineering, the BMI SERIES helps facilities maintain compliance with safety and environmental standards, making it an indispensable component in the protection of laboratory personnel and sensitive processes.

Benefits

  • Enhances safety by providing substantial radiation protection in lab environments.
  • Facilitates compliance with stringent safety regulations in pharmaceutical and nuclear sectors.
  • Minimizes exposure risks, ensuring a safer work environment for laboratory personnel.
  • Constructed from durable stainless steel, offering longevity and corrosion resistance.
  • Customizable shielding levels to meet specific safety requirements and operational needs.

General


Applications
End products
Steps before
Installation,Setup,Bench Preparation,Shielding Calibration (if needed)
Steps after
Maintenance,Glass Cleaning,Record Keeping
Input ingredients
benches requiring protection,radioactive material
Output ingredients
shielded benches,reduced radiation exposure
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Frame Material
INOX AISI 304 Scotch-BriteTM
Stainless steel thickness
1.5 mm
External dimensions
350 x 350 x 490 mm (w x d x h)
Glass dimensions
120 x 180 mm (w x h)
Shielding (Pb)
10 mm
Weight
45 kg
Shielding (Pb)
30 mm
Weight
130 kg
Shielding (Pb)
50 mm
Weight
175 kg

Operating Characteristics


Shielding material type
Lead
Shielding thickness
10mm / 30mm / 50mm
Window material
Shielded glass
Window size
120 x 180 mm
Frame material
INOX AISI 304 Stainless Steel

Material Compatibility


Abrasion resistance
Stainless steel
Cleanability
Yes
Corrosive resistance (e.g. acids)
Stainless steel 304

Physical Characteristics


Frame Material
INOX AISI 304 Scotch-BriteTM
Stainless Steel Thickness
1.5 mm
External Dimensions (Width x Depth x Height)
350 x 350 x 490 mm
Glass Dimensions (Width x Height)
120 x 180 mm
Shielding
10 mm,30 mm,50 mm Pb
Weight
45 kg,130 kg,175 kg

Custom Options


Frame Material
INOX AISI 304 Scotch-BriteTM
Shielding (Pb)
10 mm,30 mm,50 mm
External Dimensions
350 x 350 x 490 mm (w x d x h)
Glass Dimensions
120 x 180 mm (w x h)
