Single track pallet conveyor for large items
Streamline your production with a versatile pallet conveyor system, designed for flexible routing and precise tracking to enhance efficiency in handling diverse product types and sizes.
Conveys and Tracks Products for Precise Routing

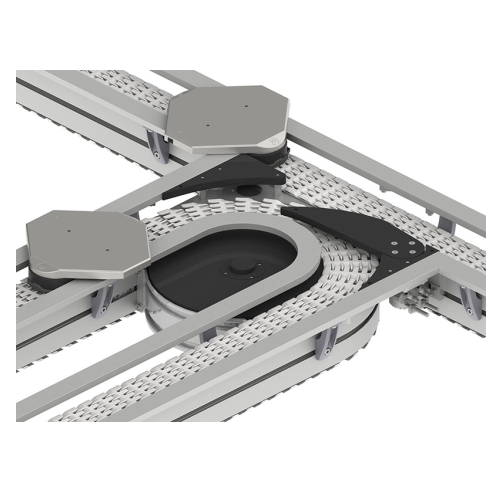

The XK Single Track Pallet Conveyor from FlexLink is designed to enhance production efficiency for industries like electronics, pharma, healthcare, and automotive. It features a modular system using standard conveyor components, facilitating easy layout customization for routing, buffering, and positioning operations. Capable of handling products from a few grams to 30 kg, this system integrates RFID technology for precise tracking and logistic control across production lines. With a maximum speed of 30 m/min, it supports continuous, high-speed operations, and is compatible with both clean and dirty environments. This pallet conveyor is available in durable materials, including aluminum and stainless steel, ensuring longevity and reduced maintenance. Moreover, it can seamlessly integrate with FlexLink’s robotic and palletizing systems for a comprehensive material handling solution.
Benefits
- Enhances production flexibility with customizable layout configurations.
- Streamlines high-speed operations with RFID-enabled precise tracking.
- Minimizes downtime through easy-to-maintain modular components.
- Ensures compatibility across various product weights and types.
- Integrates seamlessly with existing robotic and palletizing systems for comprehensive automation.
- Applications
- Automotive,Pharma,Healthcare,Industrial goods,Electronics,Racing
- End products
- Medical devices,Pharmaceutical bottles,Electronic circuit boards,Racing equipment,Machinery components,Healthcare packaging,Automotive parts
- Steps before
- Routing,Balancing
- Steps after
- Buffering,Positioning,Packing
- Input ingredients
- individual products,product carriers,pallets,products up to 30 kg
- Output ingredients
- conveyed products,packaged items,positioned pallets,tracked pallets
- Market info
- FlexLink (Coesia Group) is renowned for its innovative conveyor and automation systems, optimizing production efficiency for various industries such as food, automotive, and electronics, with a strong emphasis on modular and customizable solutions.
- Pallet width
- 300 mm
- Conveyed product weight range
- few grams up to 30 kg
- Max speed
- 30 m/min
- Operating temperature
- -20 to +60°C
- Packaging Type
- Asymmetric,rectangular,round,symmetric
- Product state
- Clean,dirty,dry
- Environment type
- Dry,dirty
- Chain type
- Plain chain
- Max product length
- 300 mm
- Max product width
- 300 mm
- Automation level
- PLC
- Batch vs. continuous operation
- Inline Continuous
- Operating temperature range
- -20 to +60°C
- RFID tracking
- Enabled
- Product handling capacity
- Up to 30 kg
- Cleaning method
- Manual
- Max speed
- 30 m/min
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- Easy to clean
- Density/particle size
- Varies based on product
- Product weight range
- Few grams to 30 kg
- Product dimensions
- Max length 300 mm,Max width 300 mm
- Packaging type
- Asymmetric,Rectangular,Round,Symmetric
- Compact footprint
- Optimized for space efficiency
- Pallet width
- 300 mm
- Max product weight
- 30 kg
- Modular design
- Configurable standard modules
- Product adaptability
- Pallet adaptation for various product types
- Product range length
- Max 300 mm
- Product range width
- Max 300 mm
- RFID Identification
- Track-and-trace,logistic control
- Pallet Size
- 300 mm width,configurable
- Layout Configuration
- Advanced and straightforward layouts for routing,buffering
- Integration Possibilities
- Linked with industrial palletizers and conveyors
- Operating Temperature Range
- -20 to +60°C
