Single station modified atmosphere packaging system

Ensure the extended shelf life of sensitive foods with precise gas flushing and sealing capabilities, reducing spoilage and maintaining freshness in diverse packaging formats.

Preserves and Packages Products via Gas Flushing

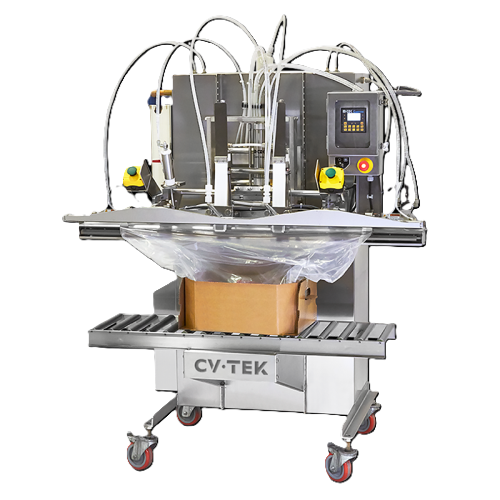

The MARK-III from CV-TEK is a single-station modified atmosphere packaging machine designed for food and dairy processors that require extended product shelf life and protection from atmospheric degradation. This equipment excels in a variety of applications, including packaging fresh-cut produce, organic grains, and dairy products in bulk bins, totes, and poly bags. The machine operates through a robust gas flushing and sealing process that ensures wrinkle removal and bag stretching, thereby maintaining the integrity and freshness of sensitive products.

Configurable with seal bars ranging from 30 to 100 inches, the MARK-III handles diverse packaging needs efficiently. With options for vacuum, liquid-ring, or venturi pumps, it offers flexible gas flush capabilities ensuring oxygen levels are minimized, crucial for preserving the quality of organic and perishable items. The equipment is constructed from 100% stainless steel, complying with FSMA, FDA, and USDA standards, and is built to IP69 specifications for easy washdown, further ensuring high hygiene standards.

Operational ease is enhanced by an intuitive controller with multiple language options, and its adaptable installation options—floor-mount, rolling casters, or overhead suspension—allow seamless integration into existing production lines. Whether packaging salad mixes, powdered dairy, or industrial bulk grains, the MARK-III provides a reliable solution with customizable features to meet specific production demands.

Benefits

  • Extends product shelf life by minimizing oxygen exposure through efficient gas flushing.
  • Enhances packaging integrity with wrinkle-free sealing and bag stretching.
  • Ensures high hygiene standards with washdown-ready IP69 construction.
  • Offers flexible integration with multiple installation options to fit existing production lines.
  • Meets strict food safety requirements with FSMA, FDA, and USDA compliance.

General


Applications
Barrels,Case-ready applications,Poly bags,Organic products,Bulk-bin,Fresh-cut produce,Dairy products,Totes,Super-sacks,Gaylords,Bins
End products
Industrial bulk spices,Organic nuts,Polyethylene bagged snacks,Bulk powders in super-sacks,Ingredient products in gaylords,Salad mixes,Liquid dairy products,Processed meat in bins,Raw materials in barrels,Organic grains,Powdered dairy products,Ready-to-cook meat products,Industrial bulk grains,Grain in totes,Chopped vegetables
Steps before
Sorting,Cleaning,Pre-cooling
Steps after
Labeling,Storage,Transportation
Input ingredients
single bags,lined cases,bulk-bin,totes,Gaylords,barrel,super-sacks,organic products,products that degrade in atmosphere
Output ingredients
preserved products,protected products,extended shelf life products,wrinkle-free bags,asphyxiated inserts and larvae
Market info
CV-TEK (Middleby) is known for its expertise in designing and manufacturing modified atmosphere packaging (MAP) systems, offering innovative packaging solutions that enhance product shelf life and quality in the food processing industry.

Technical Specifications


Seal bar lengths
30,54,62,and 100 inches
Compliance
FSMA,FDA,,USDA compliant
Material
100% stainless steel
Washdown Specification
IP69 specifications assuring IP67 compliance
Automation
Simple to understand controller
Vacuum pump
Standard or optional liquid-ring and venturi
Sealing method
Hot-bar or impulse sealing
Bag-stretcher option
Available
Control options
Optional two hand controls
Probe flexibility
Flexible probes
Mounting options
Floor mount,optional casters,or hanging over conveyor
Gas flush
Multi-gas flush support

Operating Characteristics


Automation level
PLC / B,R controls
Batch vs. continuous operation
Batch
Cleaning method
IP69 / IP67 compliance
Seal type
Hot-bar / Impulse sealing
Material handling
Bag-stretcher option for wrinkle-free bags
Gas flushing
Multi-gas flush ability for product shelf life extension

Material Compatibility


Stainless steel compatibility
Yes
Corrosion resistance
IP69
Cleanability
Yes


3A Sanitary Standards
Optional

Physical Characteristics


Material
100% stainless steel
Compliance
FSMA,FDA,,USDA compliant
Dairy Grade
Optional 3A dairy-grade
Ingress Protection
IP69 specifications assuring IP67 compliance
Seal Bar Lengths
30,54,62,and 100-inch
Mounting Options
Floor mount,optional casters,or hang over conveyor
Bag Option
Bag-stretcher option to insure wrinkle-free bags
Controller Options
Variety of language options
Gas Flush Option
Multi-gas flush totes or super-sacks
Single Bags Support
Adjustable bag support plate
Seal Head
20-degree tilted seal head

Custom Options


Control panel type
Simple to understand controller
Frame Material
100% stainless steel
Mobility
Floor mount,optional casters,hangable
Seal bars length
30,54,62,100-inch
Sealing type
Hot-bar or impulse sealing
