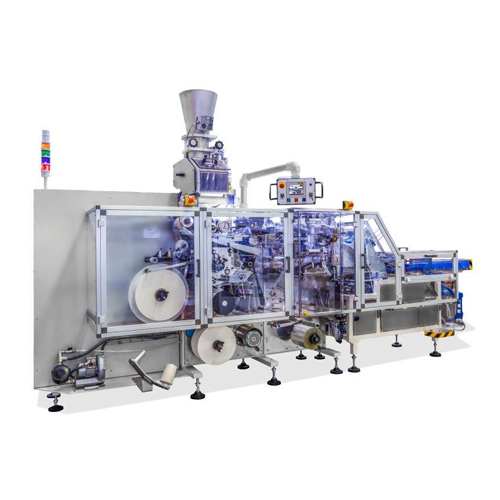

Single chamber tea bag packer with sealed filter paper

Efficiently pack diverse tea varieties into neatly sealed single chamber bags, ensuring freshness and quality with high-speed operations.

Packs and Cartons Tea Bags Efficiently

The TM 320 from ACMA is a sophisticated single chamber tea bag packing and cartoning machine designed to optimize your packaging line. It specializes in efficiently packing a variety of tea bags, such as black, green, herbal, and more, into cartons while ensuring a seamless, continuous operation. Capable of reaching speeds up to 320 packs per minute, the TM 320 integrates smoothly into existing production lines thanks to its robust automation features, including continuous high-speed operations and precise envelope sealing. The machine is constructed for longevity, accommodating diverse production needs with adjustable box and envelope sizes. Compliance with European safety regulations, such as 2014/30/UE and 2006/42/EC, ensures reliable performance. Its minimal footprint and maintenance-friendly design, featuring quick 45-minute changeovers, further enhance productivity and operational efficiency, making it an excellent choice for tea producers and beverage manufacturers.

Benefits

  • Enhances production speed with up to 320 packs per minute, ensuring high efficiency.
  • Facilitates quick production line adjustments with a 45-minute changeover, minimizing downtime.
  • Guarantees product safety and quality with compliance to European safety regulations.
  • Improves packaging flexibility with adjustable box and envelope sizes, accommodating various tea types.
  • Streamlines operations through continuous, automated high-speed running, reducing manual intervention needs.

General


Applications
Tea,Coffee
End products
Green tea bags,Black tea bags,Earl grey tea bags,Chamomile tea bags,Peppermint tea bags,Herbal tea bags
Steps before
Tea Leaf Processing,Blending,Weighing
Steps after
Box Sealing,Labeling,Palletizing
Input ingredients
filter paper,tea
Output ingredients
single chamber tea bags,sealed envelopes,cartoned tea bag packages
Market info
ACMA (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment for consumer goods, focusing on innovative and efficient machinery solutions for markets like confectionery, soap, tea, and coffee, with a strong reputation for reliability and quality.

Technical Specifications


Machine speed
320 ppm
Operating mode
Continuous
Box size changeover time
45 min
Machine depth
1420 mm
Machine height
2207 mm
Machine length
5859 mm
Machine weight
3275 kg
Max box height
112 mm
Min box height
60 mm
Max box length
185 mm
Min box length
55 mm
Max box width
231 mm
Min box width
50 mm
Max envelope height
110 mm
Min envelope height
77 mm
Max envelope width
95 mm
Min envelope width
66 mm
Max pack height
85 mm
Min pack height
60 mm
Max pack width
75 mm
Min pack width
50 mm
Pack type
Single chamber sealed
Packaging type
Box - Bag in bag (multipack)
Max tag height
28 mm
Min tag height
22 mm
Max tag width
24 mm
Min tag width
24 mm

Operating Characteristics


Automation level
Continuous
Batch vs. continuous operation
Continuous
Changeover time
45 min

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Envelope size range
77–110 mm height
66–95 mm width
Tag size range
22–28 mm height
24 mm width


Safety Regulations
2014/30/UE,2006/42/EC,2014/35/UE

Custom Options


Envelope size range
Min 77 mm - Max 110 mm
Tag size range
Min 22x24 mm - Max 28x24 mm
Box size range
Min 55x60 mm - Max 185x112 mm
Packaging type
Box - Bag in Bag (multipack)
