Silo unloader for difficult products

Tackle challenging silo extractions with a robust unloading system designed for high-speed discharge of materials like soy seeds and wood pellets, ensuring efficient product flow and minimal residual build-up.

Facilitates Complete Silo Unloading

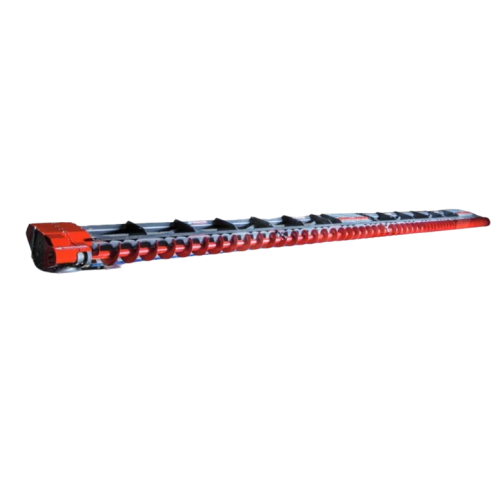

The Hydrasweep from Morillon is a high-capacity hydraulic sweep auger designed to optimize the unloading of bulk materials stored in silos. Combining the innovative design of the Spirogyre sweep auger with a robust hydraulic motor, this equipment ensures efficient extraction of challenging products like soy seeds, wood pellets, and grains. Once gravity-based unloading concludes, the Hydrasweep activates its auger, completing the process through a 360° rotation within the silo, requiring no human intervention. It is ideal for agriculture and port storage industries, capable of handling up to 500 tonnes per hour, and suitable for silos spanning 27 to 60 meters in diameter. The fully automatic operation integrates seamlessly into existing systems, offering a safe and reliable solution resistant to product sliding or falling. Optional ATEX certification ensures safe operation in explosive atmospheres, while low maintenance requirements and built-in brushes enhance longevity and reliability.

Benefits

  • Improves unloading efficiency by ensuring complete silo emptying with minimal manual intervention.
  • Handles large volumes up to 500 tonnes per hour, increasing productivity.
  • Enhances operational safety with fully automatic control, minimizing risk in explosive environments.
  • Reduces maintenance time and costs with durable, low-maintenance design.
  • Suitable for intensive use, supporting continuous operation in demanding environments.

General


Applications
Grains,Silo-stored items,Wood pellets,Pellets,Bulk materials,Agricultural products,Port storage materials,Soy seeds
End products
Animal feed,Biomass pellets,Pelletized livestock feed,Pelletized fertilizer,Packaged grains,Bioenergy pellets,Bulk feed ingredients,Flour,Wood pellet fuel,Bulk agricultural commodities,Biodiesel,Soy protein isolate,Port export grains,Soybean meal,Grain alcohol
Steps before
Gravity unloading,Storage in silo
Steps after
Product discharge,Packing,Transport
Input ingredients
soya seeds,wood pellets
Output ingredients
discharged material,unloaded product,extracted product
Market info
Morillon is known for its expertise in designing and manufacturing industrial unloading systems, particularly silo dischargers suitable for handling bulk solids in challenging conditions, recognized for reliability and robust performance across various industries.

Technical Specifications


Unloading Diameter
27–60 metres
Discharge Capacity
Up to 500 tonnes per hour
Automation
Fully automatic
Rotation
360°
Start-up Mechanism
Start-up booster
Maintenance Requirement
Little maintenance is required

Operating Characteristics


Working mechanism
Sweep auger with hydraulic motor
Automation level
Fully automatic
Batch vs. continuous operation
Continuous
Safety features
No human intervention required

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Auger Type
Sweep auger
Motor Type
Hydraulic motor
Operation Mode
Fully automatic
Rotation Method
360° rotation
Silo Compatibility
Flat bottom silos
Silo Diameter Range
27 to 60 metres
Discharge Capacity
Up to 500 tonnes per hour
Safety Features
No human intervention required

Custom Options


Sweep Auger Design
Customized auger design for varying silos
Motor Type
Hydraulic motor
Diameter Compatibility
For silos between 27 and 60 metres
Discharge Capacity
Up to 500 tonnes per hour
ATEX Option
Compliance with explosive atmospheres
Brushes
Included for additional cleaning capability
