Shielded isolator for gallium-68 synthesis and dispensing
Optimize your radiopharmaceutical production by ensuring precise synthesis and safe dispensing of gallium-68 and other isotopes in an aseptic environment with robust shielding.
Synthesizes and Dispenses Gallium-68 Radiopharmaceuticals

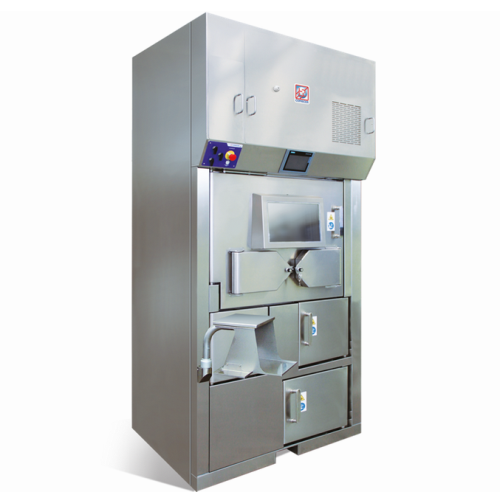

The MUSA 68Ga Shielded Isolator from Comecer is designed to streamline the synthesis and dispensing of Gallium-68 radiopharmaceuticals. Featuring a modular design, it allows for flexible configuration to meet the specific needs of nuclear medicine and pharmaceutical applications. The isolator operates under aseptic conditions, aligning with cGMP standards for handling beta and gamma-emitting radiopharmaceuticals, including Lutetium-177 and Yttrium-90. It integrates seamlessly through its multi-functional compartments for synthesis, calibration, and fractioning processes, all of which are protected by 50 mm Pb shielding for superior radiation safety. Automation is achieved via a touch-screen console and dose calibrator, ensuring precise dispensing. The isolator is compliant with Good Radiopharmacy Practices, enhancing safety and efficiency in complex radiopharmaceutical operations while offering custom engineering support for specialized applications.
Benefits
- Enhances safety with 50 mm Pb shielding for radiation protection.
- Increases operational efficiency with modular and flexible configuration.
- Ensures aseptic processing compliant with cGMP standards.
- Minimizes contamination risk through automated dose calibration and fractioning.
- Supports a range of radioisotopes, expanding production capabilities.
- Applications
- Pet/spect radiopharmaceuticals,Cell,Radiopharmaceuticals,Gene therapy,Radiopharma,Nuclear medicine
- End products
- Lutetium-177 radiotherapeutics,Gallium-68 radiotracers,Fluorine-18 pet tracers,Yttrium-90 radiotherapeutics,Spect imaging agents
- Steps before
- Radiopharmaceutical synthesis preparation,Radioisotope sourcing,Generator setup,Radiochemical formulation
- Steps after
- Fractioning,Dose calibration,Radiopharmaceutical dispensing,Waste management,Decontamination,Cleaning
- Input ingredients
- Gallium-68 from 68Ga/68Ge generator,beta-emitters,177Lu,90Y,18F,PET/SPECT emitters,compact synthesis modules
- Output ingredients
- radiopharmaceuticals,dispensed vials,syringes,fractioned products,labeled radioisotopes
- Market info
- Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.
- Shielding
- 50 mm Pb
- Aseptic Environment
- Yes
- Automation
- Touch screen console
- Dose Calibrator
- 2 Ci or 20 Ci
- Operating Modes
- Fractioning,Synthesis,Dispensing
- Modularity
- Modular design
- Radiopharmaceutical Handling
- Beta and Gamma emitters
- Synthesis Capability
- 68Ga,177Lu,90Y
- Peristaltic Pump
- Available for fractionating
- Class
- Class A LAF
- Negative Pressure
- Maintained
- Material Transfer
- Lower compartment
- Waste Discharge
- Internal port
- Compliance
- cGMP compliant
- Radiation Protection
- Yes
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch
- CIP/SIP
- CIP 121°C / SIP 135°C
- Aseptic environment
- Yes
- Radiopharmaceutical Handling
- Beta / Gamma Emitters
- Waste management
- Internal port discharge
- Radiation protection
- 50mm Pb shielding
- Material transfer
- Lower compartment
- Changeover time
- Not specified
- Cleaning method
- Manual / CIP
- Modular design
- Flexible configuration
- Process optimization
- Gallium-68 synthesis and dispensing
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- CGMP compliance
- Yes
- Good Radiopharmacy Practice Standards
- Yes
- Machine footprint
- Compact design
- Shielding thickness
- 50 mm Pb
- Control panel type
- Touch screen console
- Compact synthesis modules
- Available
- Pre-chamber design
- Shielded container compatibility
- Chamber type
- Laminar flow isolator
- Compartments
- Airtight,negative pressure
- Work surface lifting
- Automatic lifting
- Generator compartment
- Separate,isolated
- Modular design
- Flexible configuration
- Control interface
- Touch screen console
- Dose calibrator version
- 2 Ci or 20 Ci
- Shielding thickness
- 50 mm Pb
- Operating modes
- Various models for different tasks
