Sheetcake icing station for small bakery operations

Streamline your cake finishing process with a compact solution designed to apply consistent icing layers efficiently, enhancing both speed and precision in your bakery production line.

Applies Icing and Decorates Sheet Cakes

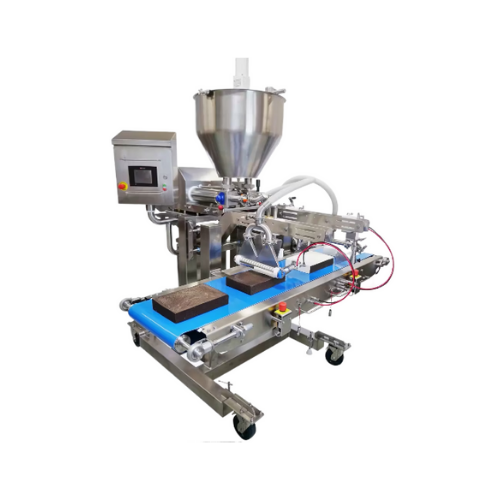

The Sheetcake Icing Station Mini Production Line from Unifiller Systems is a compact, mobile solution tailored for high-efficiency cake icing and decorating in commercial bakeries. This mini production line features a dual piston depositor with independent volume and speed controls, enabling precise icing application on sheet cakes. Capable of processing up to six cakes per minute, its onboard computer with touch-screen controls allows you to store up to 100 recipes for quick changeovers. Built with a conveyor system, it seamlessly integrates into your existing production line, enhancing automation in finishing operations. The unit is constructed with easy washdown capabilities, ensuring rapid cleaning without requiring tools. Compliant with industry standards, its programmable PLC and NEMA-4X control box provide robust and reliable performance, making it an indispensable asset in your food production lineup.

Benefits

  • Increases production efficiency by processing up to six cakes per minute.
  • Reduces labor costs with automated icing application and decorating features.
  • Enhances product consistency by storing up to 100 recipes for quick setup.
  • Minimizes cleaning downtime with easy washdown design and tool-free maintenance.
  • Seamlessly integrates into existing cake production lines, optimizing workflow.

General


Applications
Baked goods,Sheet cakes,Cake layers,Cake icing,Cake finishing
End products
Steps before
Batter Mixing,Cake Baking,Cake Cooling
Steps after
Cake Decoration,Packaging,Distribution
Input ingredients
sheets,cake bases,icing materials
Output ingredients
iced sheet cakes,finished cakes
Market info
Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.

Technical Specifications


Speed
Up to 6 sheet cakes per minute
Deposit Range
Configured
Particle Size
1.5 " (38 mm)
Power - Air
10 CFM @ 80 psi
Power - Electrical
220 VAC,Single Phase
Washdown
Easy Washdown
Control System
On-board computer with touch-screen controls
Recipe Storage
Storage for up to 100 recipes
Depositor Type
Dual piston depositor with independent volume and speed control
Programmable Logic Controller (PLC)
Yes

Operating Characteristics


Working mechanism
Dual piston depositor
Automation level
Programmable PLC
Batch vs. continuous operation
Batch
Changeover time
Configured
Cleaning method
Easy Washdown

Material Compatibility


Cleanability
Easy Washdown
Density/particle size
1.5 " (38 mm)
Corrosive resistance (e.g. acids)
NEMA‐4X control box

Product type Characteristics


Product type compatibility
Sheet cakes
Container size compatibility
1/8 sheet,1/4 sheet,1/2 sheet

Physical Characteristics


Compact footprint
Yes
Discharge method
Automated Conveyor

Custom Options


Compact footprint
Mobile Mini Production Line
Control panel type
On-board computer with touch-screen controls
Nozzle fine-tuning
Fine height adjustment available
