Servo-driven device assembly system

Achieve precise and flexible assembly of medical and pharmaceutical devices with a servo-driven system designed for high-speed production and seamless integration into complex production lines.

Assembles and Marks Medical and Pharmaceutical Devices

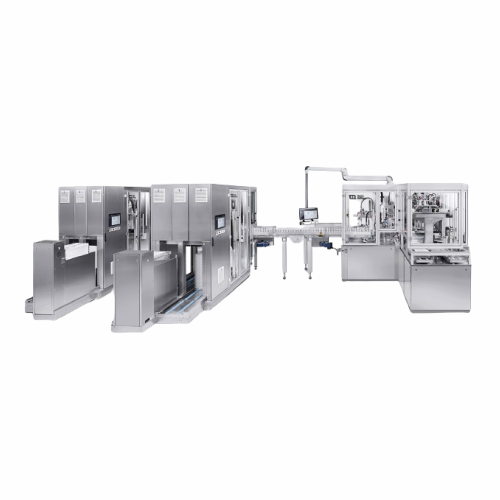

The MQT from Harro Höfliger is a servo-driven assembly machine, expertly designed for the precise assembly and marking of medical and pharmaceutical devices. It stands out for its flexible configuration, allowing the integration of multiple stations such as dosing, lasering, and labeling to accommodate a wide range of products like autoinjectors, pens, and inhalers. The system delivers an impressive output of up to 160 products per minute and supports operations with up to 60 cycles per minute across one to four lanes. Automation is enhanced through servo-controlled drives and integrated camera systems that ensure accurate product handling and verification processes. Designed for cleanroom environments, it meets stringent standards with class 100,000 to 1,000 compatibility. Harro Höfliger provides extensive customization options, allowing production configurations to meet specific product requirements seamlessly, while ensuring energy efficiency through optimized motor control.

Benefits

  • Enhances production efficiency with high-speed assembly capabilities up to 160 products per minute.
  • Minimizes errors and manual intervention with precise servo-driven operations.
  • Ensures regulatory compliance with customizable marking and labeling systems.
  • Integrates easily into existing production lines with flexible design and station expansion.
  • Supports rigorous quality control with integrated inspection and verification systems.

General


Applications
Inhalers,Pens,Medical devices,Patch injectors,Patch pumps,Diagnostic products,Autoinjectors,Safety devices,Pharmaceutical devices
End products
Insulin pens,Safety syringes,Asthma inhalers,Diabetes test strips,Covid-19 test kits,Continuous glucose monitors,Wearable injector patches,Epipen
Steps before
Component Feeding,Purification,Parts Handling
Steps after
Quality Control,Marking,Packaging
Input ingredients
autoinjector components,pen components,inhaler components,diagnostic product components,safety device components,patch injector components,patch pump components,medical product components
Output ingredients
assembled autoinjectors,assembled pens,assembled inhalers,assembled diagnostic products,assembled safety devices,assembled patch injectors,assembled patch pumps,assembled medical products
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
up to 60 cycles/min (1 or up to 4 lanes)
Station Range
10 – 25 stations
Cleanroom Version
Cleanroom class 100,000 – 1,000
Automation
Servo-controlled drive
Product Transport
Precise and high-speed
Camera Systems
Fully integrated
Marking System
Laser marks with country-specific QR codes
Machine Capacity
Up to 160 products/minute
Parts Handling
Suction cups,grippers,or pincers

Operating Characteristics


Working mechanism
Servo-controlled drive
Integrated steps
Assembly,dosing,lasering,labeling
Product assembly
Autoinjectors,pens,inhalers,safety devices
Automation level
Fully automatic
Changeover time
Flexible expansion

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


Cleanroom Classification
ISO 7 / ISO 8

Physical Characteristics


Product transport system
Precise transport at high speeds
Machine platform
Robust and highly dynamic
Accessibility
Optimal
Camera systems integration
Wide range,fully integrated

Custom Options


Control panel type
User-configurable HMI
Integration possibilities
PLC,SCADA,ERP systems
Servo-controlled drive
Available
Expandable stations
Dosing,lasering,labeling
Camera system integration
Wide range,fully integrated
