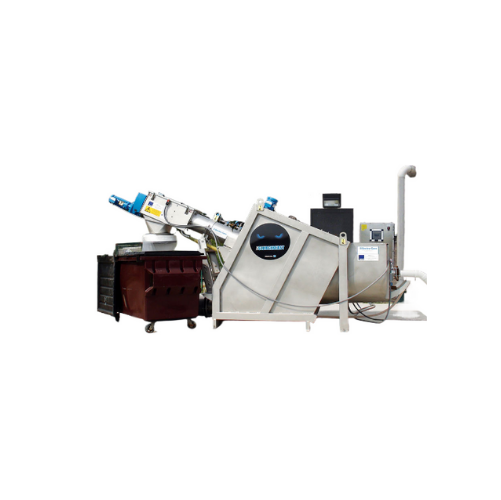

Septage receiving station for septage treatment

Optimize your wastewater management by integrating a station that screens, washes, conveys, and dewaters septage in one step, reducing equipment needs and streamlining operations.

Screens, Washes, Conveys, and Dewaters Wastewater

The VFA DM Septage Receiving Stations from WAMGROUP efficiently manage wastewater challenges by integrating screening, washing, conveying, and dewatering into a single unit. This engineered solution is designed for municipal and industrial facilities dealing with complex sludge treatment. The dual motor drive system ensures independent operation of the drum and auger, maximizing cleaning efficiency and solids removal. It features a self-cleaning perforated plate drum screen paired with a screw conveyor, actively processing waste to achieve optimal separation and compaction of solids. With the capability to handle solids concentration up to 2-3%, the system is well-suited for various wastewater applications, including food processing and industrial waste. The equipment can be customized with alternative motor protections and control panels, and its construction from durable materials like 304 L/316 L stainless steel and ST 52 steel ensures longevity in corrosive environments. Its automated operation supports continuous processing, reducing downtime and maintenance costs.

Benefits

  • Enhances waste processing efficiency, reducing the requirement for multiple machines.
  • Increases solid capturing efficiency with an extended hopper design.
  • Minimizes maintenance by eliminating rag accumulation with the absence of a lower drum support arm.
  • Reduces operational costs through independent drum and auger control for optimized cleaning.
  • Suitable for diverse wastewater environments, including municipal and industrial applications.

General


Applications
Vegetable processing waste water,Food processing waste water,Tanneries waste water,Industrial waste water treatment,Abattoirs waste water,Sludge treatment,Beverage industry waste water,Paper processing waste water,Clean water treatment,Pulp,Plastics recycling industry waste water,Municipal waste water treatment,Livestock breeding waste water,Fruit
End products
Steps before
Sludge Collection,Tanker Loading,Transportation
Steps after
Purification Process,Solids Disposal,Further Treatment
Input ingredients
septage,sludge,FOG (fats,oils,grease),digester sludge
Output ingredients
purified liquid,dewatered screenings,solid waste
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Drive System
Dual motor drive system
Drum Screen Opening Size
5.0 – 6.0 mm
Drum Screen Incline Angle
25 degrees
Material
304 L / 316 L SS
Auger Material
ST 52 steel,optionally 304 L / 316 L SS
Drum Speed
4 RPM
Auger Speed
10 RPM
Solids Concentration
up to 2-3%

Operating Characteristics


Screening Method
Perforated plate drum screen
Conveying System
Screw conveyor integrated
Compaction Zone
Integrated compaction within unit
Cleaning Mechanism
Self-cleaning drum screen
Unloading Efficiency
Quicker truck unloading
Motor Drive System
Dual motor drive system
Drum Screen Incline Angle
25 degrees
Automation Level
Manual / PLC integration
Solids Removal Efficiency
Maximized by motor-driven drum and auger
Integrated Steps
Screening,washing,conveying,and dewatering

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact design
Discharge method
Discharge chute
Drum size
5.0 – 6.0 mm wide hole openings
Basket shape
Cylindrical filter
Incline angle
25 degrees
Frame material
304 L / 316 L SS
Spiral material
ST 52 steel,optionally 304 L / 316 L SS
