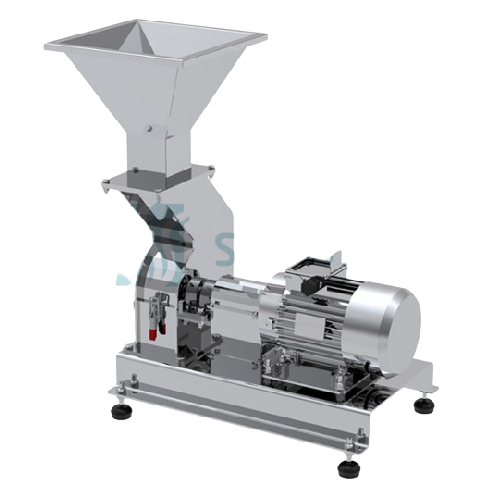

Semi-automatic seaweed grinder for efficient algae processing

Optimize seaweed processing with this stainless steel grinder, designed for precise particle size reduction and efficient milling of dried algae and spices, ensuring consistent product quality.

Processes and Grinds Dried Seaweed and Spices

The Semi Automatic Seaweed Grinder from Sirputis is a stainless steel hammer mill designed for precision grinding of seaweed and dried spices. Utilizing a robust hammer drum mechanism, it efficiently reduces material size and offers customizable sieving options. The grinder is commonly used in seaweed and spice production, delivering finely ground end-products like kombu powder and herbal spice mixes. With a processing capacity of 20 kg/h, it can handle varying particle sizes ranging from 200 to 1000 microns. Constructed from AISI316L stainless steel, the equipment ensures durability and hygiene, while its electric motor power of 3 kW ensures consistent operation. The semi-automatic nature of the grinder allows for manual collection and batch processing, ideal for food processing and dried food industries. Compliance with CE standards guarantees safety and quality, and the design facilitates easy disassembly for maintenance and cleaning. Optional features like replacement sieves and lockable wheels enhance operational flexibility.

Benefits

  • Achieves precise particle size customization, enhancing product quality for diverse applications.
  • Reduces processing time with efficient grinding capability, increasing production throughput.
  • Ensures a safe and hygienic operation with AISI316L stainless steel construction.
  • Simplifies maintenance and cleaning, minimizing downtime with easy disassembly features.
  • Provides operational flexibility with interchangeable sieves, adapting to various product requirements.

General


Applications
Dried algae,Seaweed,Dried foods,Spices
End products
Agar-agar flakes,Red chili flakes,Onion powder,Spirulina powder,Herbal spice mix,Kombu powder,Nori sheets,Dried garlic granules,Wakame flakes,Dried ginger powder
Steps before
Harvesting,Drying,Purification
Steps after
Sifting,Packing,Storing
Input ingredients
dried algae,seaweed,other dried foods
Output ingredients
ground seaweed,finely ground particles,spices,different product structures,various particle sizes
Market info

Technical Specifications


Dimensions (L x W x H)
660 x 550 x 1350 mm
Feed opening dimensions
97×97 mm
Working height
700 mm
Product weight
92 kg
Power
3 kW
Capacity
20 kg/h
Particle sizes
200,500,and 1000 microns
Material
AISI316L stainless steel
Motor power rating
3 kW
Certified
CE
Additional options
Ability to attach plastic bags,easy disassembly for cleaning and maintenance,pedestal with lockable,swivel wheels

Operating Characteristics


Working mechanism
Hammer drum
Automation level
Semi-automatic
Capacity
20 kg/h
Particle size output
200,500,1000 microns
Sieve options
Customizable
Material compatibility
Seaweed,dried foods,spices
Cleaning method
Easy disassembly for cleaning
Safety feature
Aspiration system
Construction material
AISI316L stainless steel
Portability
Swivel wheels

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
Easy disassembly for cleaning
Corrosive resistance (e.g. acids)
AISI316L stainless steel
Density/particle size
200,500,and 1000 microns

Product type Characteristics


Seaweed processing
Semi-automatic

Physical Characteristics


Compact footprint
660 x 550 x 1350 mm
Material
AISI316L stainless steel
Working height
700 mm
Weight
92 kg
Feed opening dimensions
97×97 mm
Discharge method
Manual collection in container or bag
Wheel type
Lockable swivel wheels

Custom Options


Particle size adjustability
200,500,1000 microns
Sieve replacement
Easy replaceable sieves
Discharge option
Attachable plastic bags
Mobility
Lockable swivel wheels
