Semi-automatic clipper for sausage and meat packaging

Optimize your packaging operations with a modular solution that ensures precise clipping and packaging for meats, plant-based proteins, and speciality products, minimizing waste and maximizing efficiency.

Clips and Packages Diverse Products Efficiently

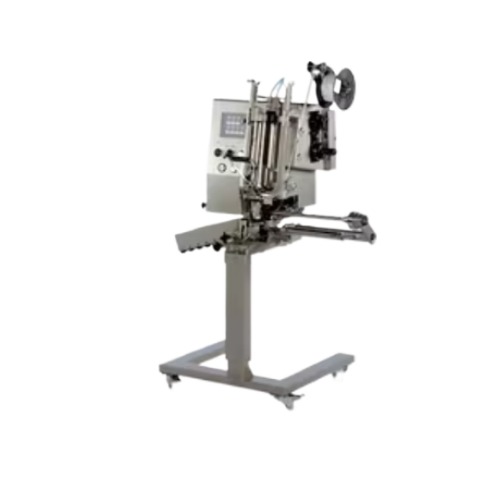

The KDCM and DCM models from TIPPER TIE are modular, semi-automatic clipping machines designed for seamless integration into diverse production lines. Featuring interchangeable components, these machines efficiently handle natural, artificial, and fibrous casings. Ideal for food manufacturers, pet food producers, and explosive manufacturers, the machines accommodate products ranging from sausages to industrial explosives chub packages. With digital controls offering 20 pre-set programs and ergonomic design for ease of operation, they ensure precision in clipping and sealing processes. The rugged stainless steel construction provides durability, while single-action cylinders in the clip closure area significantly reduce air consumption, leading to cost savings. Modular design supports customization, with options such as spool clip systems and automatic loop feeders for enhanced efficiency. These machines are both service-friendly and maintain high hygiene standards due to smooth, inclined surfaces and freely suspended lock plates.

Benefits

  • Enhances operational efficiency with reduced air consumption, minimizing energy costs.
  • Accommodates a wide range of product calibers, increasing versatility in production.
  • Ensures precision and cleanliness in clipping, maintaining product quality.
  • Facilitates seamless integration with customizable modules for varied applications.
  • Streamlines maintenance and reduces downtime with easy-access design.

General


Applications
Raw pet food,Soy tofu,Sauce,Sausage,Fish sausage paste,Fresh ground fish,Surimi,Soup,Industrial explosives chub packages,Frozen pet food,Vegan sausage,Fresh ground meats,Seiten chubs,Pumpable cheese,Tempeh,Refrigerated pet food
End products
Fish paste rolls,Refrigerated lamb cat food,Alfredo sauce,Salmon patties,Tomato bisque,Imitation crab sticks,Ground beef patties,Bratwurst,Raw beef dog food,Frozen chicken dog food,Tempeh links,Plant-based chorizo,Tofu sausage,Dynamite charge casings,Cheddar cheese sauce
Steps before
Grinding,Mixing,Emulsification,Injection,Preparation
Steps after
Packaging,Labeling,Cooling,Sterilization,Freezing
Input ingredients
natural casings,artificial casings,fibrous casings,fresh ground meats,soy,tofu,tempeh,seitan,fresh ground fish,surimi,fish sausage paste,raw pet food,frozen pet food,refrigerated pet food,pumpable cheese,soup,sauce,industrial explosives
Output ingredients
sausage,food chubs,vegan sausage,fish sausage,pet food packages,cheese chubs,soup packages,sauce packages,industrial explosives chubs
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Caliber Handling
25mm to 120mm
Construction Material
Stainless steel
Operation Modes
Semi-Automatic
Display
Digital display with 20 stored programs
Clip Closure Speed
Enhanced by single-action cylinders
Air Consumption
Significantly lower

Operating Characteristics


Handles casing types
Natural,artificial,fibrous
Machine inclination
Ergonomic
Automation level
Semi-automatic
Movable casing brake
Adjustable
Integrated digital display
20 stored programs
Single-action cylinders
Increases speed,reduces air consumption
Production control functions
Knife,loop,label counter
Displacer plates
Ensures clean sausage tails

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Casing type
Natural / Artificial / Fibrous
Product Type
Sausage / Vegan Sausage / Pet Food

Physical Characteristics


Machine footprint
Compact
Material construction
Stainless steel
Caliber handling range
25mm to 120mm
Smooth surfaces
Inclined for hygiene
Casing brake type
Movable,adjustable
Single-action cylinder
In clip closure area

Custom Options


Control panel type
Digital display
Integration possibilities
Modular components,interchangeable for optimization
Ergonomic inclination
Improves handling and view
Casing brake
Movable,adjustable for exact filling
