Screw conveyors for fresh concrete

Ensure uniform and continuous transport of fresh concrete from mixers to molds, minimizing segregation and maintaining mix integrity in precast concrete applications.

Conveys and Mixes Fresh Concrete

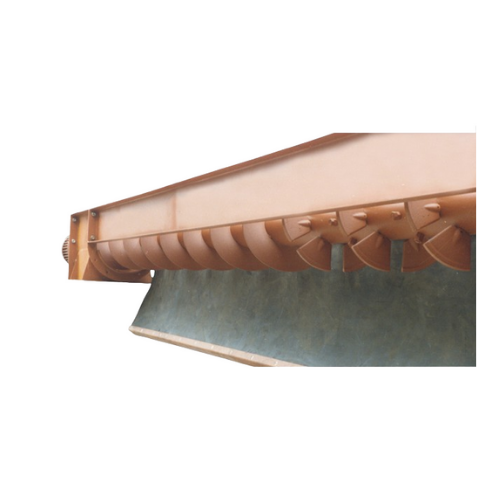

The CMC Screw Conveyors from WAMGROUP are designed to enhance the efficiency of precast concrete production by reliably conveying fresh concrete to molds without the risk of segregation. Unlike belt conveyors, the CMC utilizes an adjustable helicoid screw flighting system, ensuring even mixing and continual discharge. This equipment is ideal for applications producing concrete panels, blocks, pipes, and slabs in both building and construction industries.

Equipped with wear-resistant rubber drop-bottom troughs, CMC Screw Conveyors handle bulk solids with minimal blockage risk, effectively managing large aggregate particles. The adjustable mixing paddles allow for precise control of concrete throughput, optimizing the energy efficiency of the process.

The CMC model operates seamlessly under continuous or manual processes, boasts a compact footprint, and features a direct or offset gear motor suited to your specific needs. Its robust construction from carbon steel and optional powder coating extend its durability, making it a cost-effective solution with low maintenance demands. When required, the conveyor’s design allows for quick cleaning and easy replacement of parts, ensuring minimum downtime in high-demand production environments.

Benefits

  • Ensures uniform concrete quality by preventing material segregation.
  • Increases operational efficiency with continuous and smooth material flow.
  • Reduces maintenance time with easy-clean rubber drop-bottom trough.
  • Adapts to varying production demands with adjustable mixing paddles.
  • Minimizes installation space requirements with compact design.

General


Applications
Construction materials,Building,Bulk solids,Fresh concrete,Precast concrete
End products
Concrete footings,Concrete pipes,Concrete beams,Concrete molds,Concrete slabs,Concrete blocks,Precast concrete panels,Ready-mix concrete
Steps before
Concrete Mixing,Compulsory Mixing
Steps after
Mould Filling,Mould Setting
Input ingredients
fresh concrete,aggregates,mixing paddles
Output ingredients
homogeneous concrete,conveyed concrete,discharged concrete
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Material
Carbon Steel with surface finishing
Trough shape
U-shape trough with wear-resistant rubber drop bottom
Screw flighting
Helicoid screw flighting welded on centre pipe
End bearing assemblies
Externally flanged with cast iron casing and shaft seal
Cover type
Bolted trough cover
Drive unit
Direct or offset WAM drive unit
Mixing paddles
Adjustable in inlet zone
Outlet spout
WAM standard flange drilling
Footprint
Small

Operating Characteristics


Working mechanism
Helicoid screw flighting
Automation level
Direct or offset WAM drive unit
Changeover time
Quick drop bottom opens for cleaning
Cleaning method
Manual
Conveying method
Continuous screw conveyor
Homogeneity control
Adjustable mixing paddles
Contamination prevention
Wear-resistant rubber drop bottom
Energy efficiency
Reduced drive power absorption

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Carbon steel,wear-resistant rubber
Density/particle size
Concrete materials including large aggregate particles
Cleanability
Rubber drop bottom,easy cleaning access

Physical Characteristics


Compact footprint
Small footprint
Discharge method
Outlet spout with WAM standard flange drilling
Control panel type
Adjustable mixing paddles
Trough type
U-shape with wear-resistant rubber drop bottom
Screw type
Helicoid screw flighting welded on a center pipe
Material
Carbon steel with powder coating
End bearing assemblies
Externally flanged with cast iron casing
Gear motor
Direct or offset WAM drive unit

Custom Options


Mixing paddles adjustment
Adjustable
Drop bottom trough
Wear-resistant rubber
Gear motor
Direct or offset WAM drive unit
