Screenings compactor for waste water treatment

Achieve efficient waste management by reducing the volume of screenings by up to 60% while ensuring effective dewatering and compacting, crucial for streamlined wastewater treatment processes.

Compacts and Dewaters Waste Streams

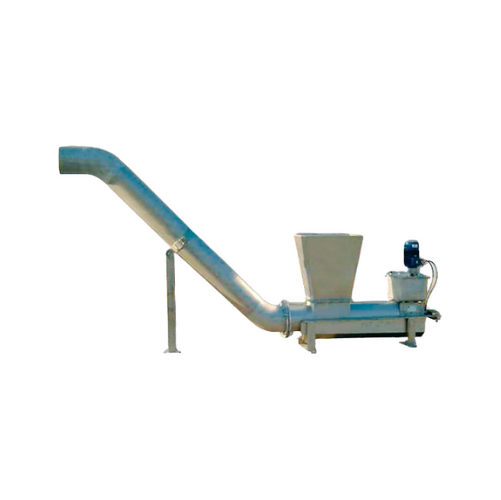

The Screenings Compactor CHP from WAMGROUP is engineered to efficiently compact and dewater waste streams in both municipal and industrial settings. Utilizing a hydraulic ram, this equipment compresses screenings into a compacting pipe, significantly reducing waste volume by up to 60%. Designed for versatility, it serves applications across wastewater treatment plants, food processing industries, tanneries, and plastics recycling. With a throughput ranging from 1.5 to 3.5 m³/h, the CHP compactor supports continuous or semi-automatic operations. Constructed from durable materials such as carbon steel, 304L, or 316L stainless steel, it ensures corrosion resistance and longevity. Options for inlet hopper size and compacting pipe length and angle provide tailored solutions. Additionally, the compact unit offers variable motor protection settings and alternative voltage configurations, enhancing energy efficiency and integration into existing setups.

Benefits

  • Achieves up to 60% waste volume reduction, cutting disposal costs and space requirements.
  • Minimizes maintenance expenses with robust, low-maintenance design.
  • Offers flexibility with customizable inlet and compacting pipe configurations for various processing needs.
  • Reduces energy consumption through hydraulic operational efficiency.
  • Enhances integration with adaptable voltage and motor protection options.

General


Applications
Vegetable processing waste water,Food processing waste water,Catering waste water,By-products processing,Industrial waste water treatment,Industrial solid waste handling,Animal by-products handling,Processing,Beverage industry waste water,Clean water treatment,Pulp,Starch,Plastics recycling industry waste water,Municipal waste water treatment,Paper processing,Dyeing works,Tanneries,Fruit
End products
Dewatered organic waste,Processed pulp effluent,Dewatered animal by-products,Dewatered plastic wash water,Processed paper effluent,Sludge briquettes,Dewatered industrial sludge,Processed vegetable waste,Filtered water,Processed fruit waste,Dewatered dyeing residues,Treated tannery waste
Steps before
Screening,Pre-treatment,Mechanical Separation
Steps after
Sludge Treatment,Waste Disposal,Dehydration
Input ingredients
screenings,municipal waste water,industrial waste water,sludge,beverage industry waste water,food processing waste water,catering waste water,fruit and vegetable processing waste water,pulp and paper processing waste water,starch processing,tanneries waste water,dyeing works waste water,plastics recycling waste water
Output ingredients
compacted screenings,dewatered screenings,reduced volume waste,drained liquid
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Capacity
1.5–3.5 m³/h
Volume reduction
Up to 60%
Construction Material
Carbon Steel / 304L / 316L SS
Footprint
Small
Compactor Size
3 sizes available
Automation
Hydraulic ram
Piping Options
Inlet hopper and compacting pipe in various sizes
Motor Protection
Alternative degrees available
Voltage,Frequency
Alternative available

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Manual / PLC
Cleaning method
Manual
Energy efficiency
Low energy consumption
Volume reduction capability
Up to 60%

Material Compatibility


Corrosive resistance (e.g. acids)
304 L / 316 L SS

Product type Characteristics


Compaction zone
Hydraulic ram
Volume reduction
Up to 60%

Physical Characteristics


Machine footprint
Small
Compaction zone
Equipped with a hydraulic ram
Compacting pipe
Available in different lengths and incline angle
Material
Carbon steel hot dip galvanized / 304 L / 316 L SS
Sizes available
3 sizes
Control panel type
Alternative voltage and frequency

Custom Options


Inlet hopper size
Different sizes available
Compacting pipe length
Available in different lengths
Compacting pipe incline angle
Customizable
Control panel
Alternative degree of motor protection
Material
304 L / 316 L SS
Voltage and Frequency
Alternative options available
