Saturation unit for carbonating beverages

Elevate your beverage production with continuous carbonation, ensuring precise gas levels and optimal taste profiles for a wide range of drinks, from craft beer to sparkling wines.

Deaerates and Carbonates Beverages

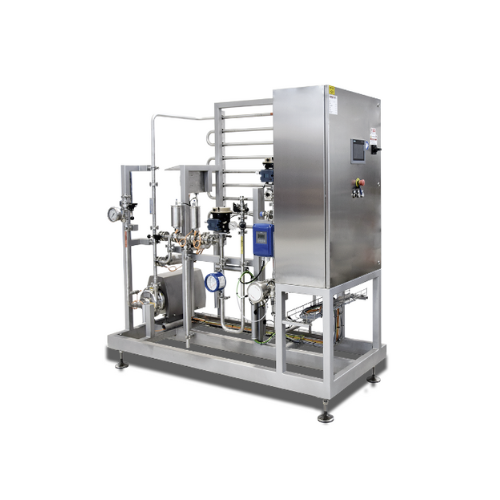

Comac’s Saturation Unit stands out in the beverage industry by delivering precise deaeration and carbonation for a variety of products, including beer, wine, and carbonated water. Its robust design incorporates a stainless steel frame and a frequency-controlled pump system to maintain a constant product inlet pressure. The unit uses a static mixer for CO2 integration, ensuring uniform carbonation. Applications range from sparkling wine to non-alcoholic carbonated drinks, with capacities suiting different production scales.

This unit, featuring a Siemens PLC and HMI touch screen for seamless control, integrates easily into existing production lines. Energy efficiency is optimized through its advanced motor control, reducing energy consumption. The unit’s AISI 304 stainless steel construction ensures corrosion resistance, supported by a CIP-ready design for straightforward maintenance. Whether for breweries or water bottlers, this equipment delivers consistent, high-quality results with comprehensive engineering support for customization.

Benefits

  • Ensures consistent carbonation quality, enhancing product taste and effervescence.
  • Reduces operational costs with energy-efficient motor control.
  • Integrates seamlessly into existing processing lines, minimizing installation disruption.
  • Corrosion-resistant design extends equipment lifespan, reducing maintenance frequency.
  • Simplifies cleaning procedures with built-in CIP capability.

General


Applications
Non-alcoholic drinks,Alcoholic drinks,Water,Wine,Still wine,Cider,Beer,Sparkling wine
End products
Champagne,Carbonated beer,Prosecco,Carbonated wine,Sparkling water,Non-alcoholic carbonated beer,Sparkling cider
Steps before
Deaeration,Pre-filtration
Steps after
Carbonation,Packaging,Storage
Input ingredients
deaerated liquid,water,cider,sparkling wine,still wine,CO2
Output ingredients
carbonated product,carbonated water,carbonated cider,carbonated sparkling wine,carbonated still wine
Market info
Co.Mac is recognized for its expertise in designing and manufacturing customized bottling and packaging solutions for the beverage industry, delivering innovative and high-quality machinery that caters to specific client needs in the global market.

Technical Specifications


Product carbonation level
up to 7/8 g/L
Material
Aisi304 stainless steel
Control Panel
HMI touch screen operator panel
Automation
Siemens PLC logic controller
Pressure control
CO2 pressure reducer
Tank sanitation
Pre-arrangement for CIP
CO2 inlet
Modulating valve and non-return valve
Storage tank
Stainless steel,polished internally,with safety valve

Operating Characteristics


Working mechanism
Deaeration and carbonation
Integrated steps
Deaeration,carbonation,and mixing
CIP/SIP
Pre-arrangement for tank sanitation (CIP)
Batch vs. continuous operation
Inline Continuous
Automation level
PLC-controlled
Pressure control
CO2 pressure reducer,constant product inlet pressure

Material Compatibility


Corrosive resistance (e.g. acids)
Aisi304 stainless steel

Physical Characteristics


Frame Material
Stainless Steel
Tank Material
Aisi304 Stainless Steel
Tank Shape
Carbonated Product Storage Tank
Piping Material
Aisi304 Stainless Steel
Control Panel Type
HMI Touch Screen
Pump Control
Frequency Converter
Footprint
Compact Design
Signal Type
Light or Acoustic

Custom Options


Control panel type
Stainless steel electric control panel
Integration possibilities
Siemens PLC logic controller
Control interface
HMI touch screen operator panel
Tank sanitation
Pre-arrangement for CIP
