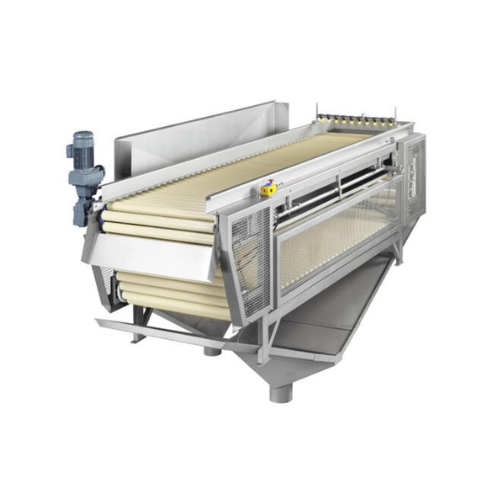

Roller table for sorting and cleaning pome fruit

Ensure thorough inspection and cleaning of pome fruits with rotating rollers that facilitate manual sorting and automatic dirt removal, optimizing your production line.

Sorts and Cleans Pome Fruits Efficiently

The Roller Table 600 x 2500 and Roller Table 800 x 3500 from Bucher Unipektin are designed to enhance pome fruit processing with precise sorting and cleaning. These tables utilize rotating, gripped rollers to allow for a full inspection of the fruit surface, ensuring only high-quality fruits proceed in the production line.

Operationally, the equipment integrates seamlessly into food and beverage plants handling products like apple slices, pear puree, and cider. It offers a manual yet continuous processing capability with variable-speed control, catering to a throughput of 4-40 tons per hour depending on the model. The Roller Table’s design includes integrated cleaning nozzles and rinseable trays that manage dirt disposal efficiently, minimizing downtime.

Engineered for durability and ease of use, the equipment operates at an ergonomic height, promoting a straightforward manual inspection process for operators. The construction supports optimal material flow, allowing for the effective elimination of contaminants through a convenient waste collection system. Its versatility in handling various fruit sizes makes it ideal for both small-scale producers and large agricultural cooperatives.

Benefits

  • Ensures comprehensive fruit quality control through complete surface inspection enabled by rotating rollers.
  • Enhances processing efficiency with continuous sorting and cleaning, minimizing delays in production.
  • Reduces manual labor requirements with an ergonomic design facilitating easy access and operation.
  • Simplifies waste management and reduces contamination risk with integrated cleaning and dirt collection systems.
  • Adapts to variable processing needs with adjustable conveying speeds and customizable motor settings.

General


Applications
Fruits,Pome fruits
End products
Apple slices,Apple puree,Apple juice,Pear slices,Apple cider,Pear puree
Steps before
Harvesting,Conveying,Pre-sorting,Loading
Steps after
Inspection,Packing,Dispatch,Quality Control
Input ingredients
pome fruit,apples,pears
Output ingredients
sorted fruit,clean fruit,non-compliant fruits
Market info
Bucher Unipektin is known for producing advanced equipment and systems for the food and beverage industry, specializing in juice processing and filtration technologies with a reputation for innovative solutions and reliable, high-quality products.

Technical Specifications


Belt length
2500 mm
Belt width
600 mm
Sorting height
920 mm
Motor
0.75 kW / 400 V / 50Hz
Conveying speed
0.08–0.41 m/s
Capacity
4–20 t/h
Belt length
3500 mm
Belt width
800 mm
Sorting height
920 mm
Motor
1.5 kW / 400 V / 50Hz
Conveying speed
0.13–0.67 m/s
Capacity
8–40 t/h
Roller gap
15 mm

Operating Characteristics


Working mechanism
Rotating,gripped rollers on lateral chains
Integrated steps
Sorting and cleaning of pome fruit
Cleaning method
Integrated cleaning nozzles and rinseable tray
Automation level
Manual sorting capability
Adjustment options
Variable speed gear motor
Fruit handling
Automatic dirt removal and visual inspection
Conveying speed
0.08–0.41 m/s (600 x 2500) / 0.13–0.67 m/s (800 x 3500)
Sorting capacity
4–20 t/h (600 x 2500) / 8–40 t/h (800 x 3500)
Gap width between rollers
15 mm

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food grade
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High
Density/particle size
Various fruits

Product type Characteristics


Fruit Type
Pome fruit
Cleaning Method
Manual / Automated
Sorting Process
Manual sorting

Physical Characteristics


Machine Footprint
600 x 2500 mm / 800 x 3500 mm
Belt Length
2500 mm / 3500 mm
Belt Width
600 mm / 800 mm
Sorting Height
920 mm
Feed/Discharge Method
Single layer feeding,belt discharge
Discharge Method
Sliding tray for dirt and water
Roller Gap Width
15 mm
Control Panel Type
Variable gear drive control

Custom Options


Conveying speed
Variable,0.08–0.41m/s (600 x 2500),0.13–0.67m/s (800 x 3500)
Roller Gap
15 mm
Roller Rotation Control
On/Off via tension bar
Chain Drive
Variable gear motor driven
Sorting Table Dimensions
600 x 2500 mm and 800 x 3500 mm
